Summary of Contents for Dante DLS1101
Page 1

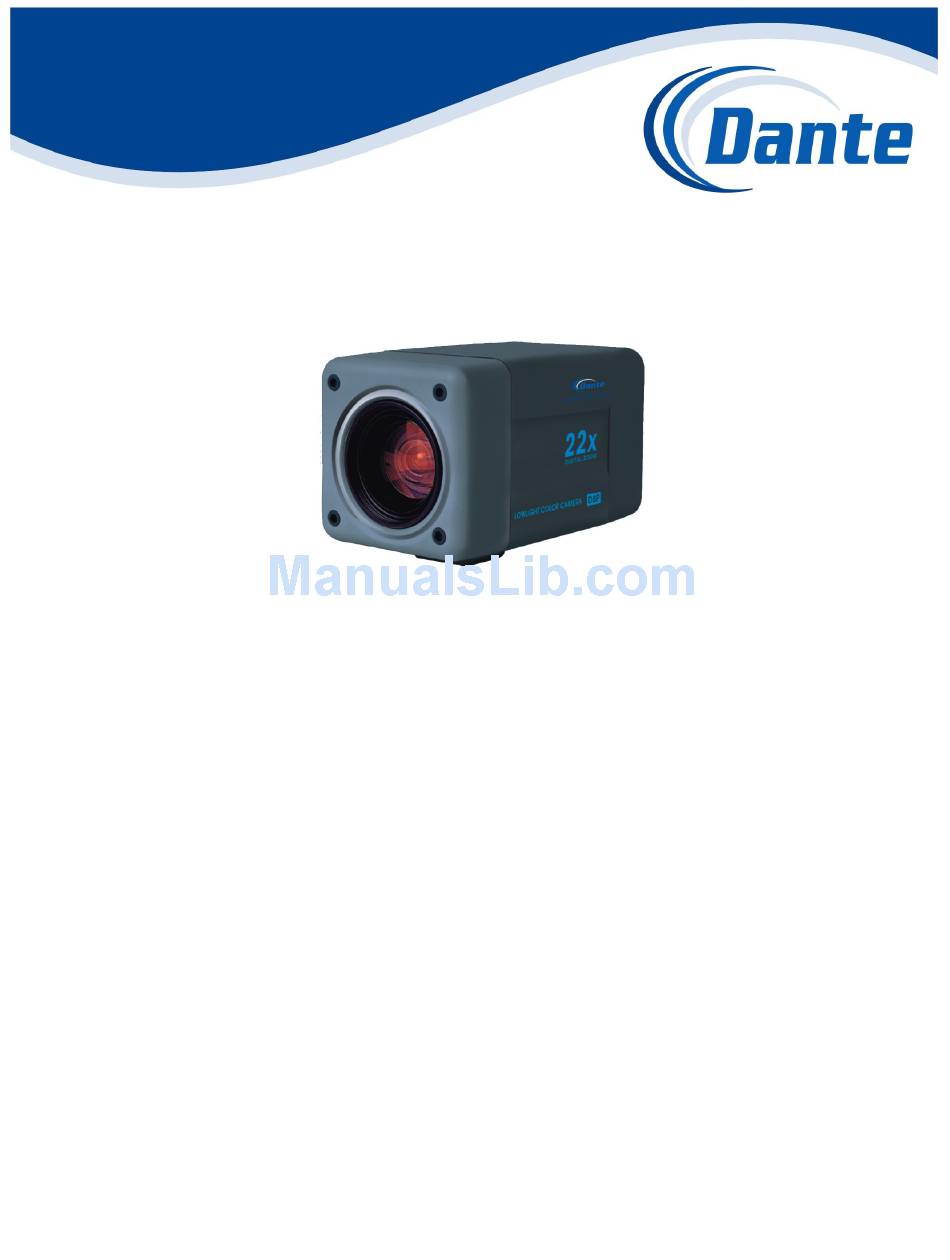

DLS1101 1/4”, 480TVL Color 22X Zoom Camera Installation and Operations Manual Model Number: DLS1101 Description: 1/4”, 480TVL 22X Zoom Color Camera...
Page 2
WARNING AND CAUTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY OBJECT THROUGH THE VENTILATION GRILLS. CAUTION Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of exposed “dangerous voltage”...
Page 3
FCC COMPLIANCE STATEMENT THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
IMPORTANT SAFEGUARDS READ INSTRUCTIONS – All the safety and operating instructions should be read before the appliance is operated. RETAIN INSTRUCTIONS – The safety and operating instructions should be retained for future reference. CLEANING – Unplug video monitor or equipment from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Page 5
11. HEED WARNINGS – Follow all instructions marked on the video monitor or equipment. 12. LIGHTNING – For added protection for video monitor or equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.
FEATURES 1/4” interline transfer Super HAD Color CCD image sensor • Electrically driven zoom lens with maximum resolving power of 22X • (selectable white balance, shutter speed and iris) Low shutter • WDR (wide dynamic range) • DIS (digital image stabilize) •...
SPECIFICATIONS 1/4-inch super-HAD color CCD Image sensor 768X493 (NTSC) 752X582(PAL) Active pixel (H x V) 4.75µ(H) X 5.55µ(V) / 4.85µm(H) X 4.65µm(V) Unit cell size 4.47mm(H)X3.80mm(V) Chip size (H x V) 470TV Lines Resolution 1.0 lux/0.02 lux : Low Shutter ON (F1.6/30 IRE) Min.
INTERFACE FIGURE 1. REAR VIEW Pin Assign (J306, 12Pin Connector: Maker MOLEX 53261-1290) NAME DESCRIPTION C OUT 0.286Vpp 75 Y OUT 1.0Vpp 75 VIDEO OUT 1.0Vpp 75 DC IN DC 9-15V (Recommendation 12V) AD KEY1 Refer to Appendix A AD KEY2 Refer to Appendix A DD ON CAMERA POWER ON SIGNAL DC5.0V...
APPENDIX 1. OSD FORMAT Following are the camera adjustments that can be made by pressing “OSD” button the side. Use the menu on the following page to reference the explanations of each adjustment. HITRON AEAUTO NORMAL F1.6 CAM 01 FIGURE 2. OSD MAIN SCREEN Camera title.
Page 13
<MAIN MENU> TITLE DISPLAY CAM SET EFFECT PRESET FIGURE 3. NAIN MENU White balance Auto white balance mode. Indoor white balance mode. INDOOR Outdoor white balance mode. OUTDOOR Manual mode. User can change R and B Gain manually. MANUAL For changing R and B gain, use NEAR and FAR key, after finishing adjustment, push the MENU key to save the changes.
Page 14
TITLE <TITLE MENU> ABCDEFGH I J KLMNOPQRST UVWXYZ 0 1 2 3 4 5 6 7 8 9 ( ) : ; . - ! ) - , ' → ← < > S E ← → FIGURE 4. TITLE TABLE TITLE Character Table Command Line...
Page 15
PRESET Select auto or push auto mode. FOCUS Select internal or line lock mode. SYNC Sync phase is adjustable in line lock mode. Camera initialize mode selection (DEFAULT / PRESET). Load default or preset parameters of camera (DEFAULT / PRESET). LOAD Save preset camera parameters.
APPENDIX 2. RS-232C / RS-485 Protocol CONNECTION CONDITION Speed: 9600/19200 BPS (Default is 9600 BPS) Data bit: 8 Bits Parity bit: None Stop bit: 1 Bits Flow control: None Use the RXD, TXD and GND in RS232C pins. NOMAL COMMUNICAITON FORMAT Command: It is that operates the camera Command Packet 5X 0Y ..
Page 17
f) BYTE6: The value of Check Sum from ‘BYTE1’ to ‘BYTE5’. Ex) In case of transmission, ‘0x05, 0xF0, 0x10, 0x00, 0x25’ 0xC5 + 0xF0 + 0x10+ 0x00+ 0x25 = 0x1EA Therefore, CS=0xEA The communication data format Camera to PC; The data of total 9 bytes is transmitted from Camera to PC 1) Format BYTE1...
Page 18
NOMAL COMMAND LIST Command Set Command PC -> CAMERA CAMERA -> PC Comments AUTO 5X 0Y 00 00 01 FF 5X 0Y 04 FF Focus condition MANUAL 5X 0Y 00 00 02 FF 5X 0Y 04 FF NEAR 5X 0Y 00 00 04 FF 5X 0Y 04 FF Adjust focus in manual focus mode...
Page 20
CAMERA STATUS READ (RESPONSE REFERRENCE) BYTE0 0x5X BYTE1 0x0Y BYTE2 NTSC/PAL DZOOM F_NEAR F_FAR AFMODE F_AF F_MF BYTE3 WAWB R_MAN B_MAN INDOOR OUTDOOR BYTE4 SPECIAL AE SHTMAN IRISMAN AGCMAN AGCOFF BYTE5 BLC ON BLC CENT BLC TOP BLC BOT BYTE6 NEGA/POSI MIRROR FREEZE...
Page 21
SPECIAL COMMAND LIST Zoom Lens Position Read : Read the current position value of Zoom lens 1) PC=>Camera 0xC5 0x36 0x00 0x00 CAM_ID 2) Camera->PC 0xC5 0x36 0x00 0x00 ZP_CNT+1 ZP_CNT V_MAG 0xXX a) ZP_CNT+1: Upper byte of Zoom lens position. b) ZP_CNT: Lower byte of Zoom lens position.
Page 22
b) ZPL : lower data of position value for Zoom lens Ex) The position of Zoom lens to memorize = 0126h (294d) & the index of Buffer RAM for PRESET = 2 0xC5 0x49 PRE_I_ZH CAM_ID 0xC5 0x49 CAM_ID Memorize Focus Lens Position for PRESET control : Memorize the Focus lens position into Buffer RAM designed PRESET position 1) PC=>Camera 0xC5...
Page 23
Non Zoom Tracking PRESET control: Move the Zoom and Focus lens to each position and set the Digital Zoom ratio according to data memorized in PRESET Buffer RAM designed ‘INDEX’ 1) PC=>Camera 0xC5 0x4D INDEX 0x00 INDEX 2) Camera->PC 0xC5 0x4D INDEX 0x00...
Page 24
CAMERA status Read Command 1 Read the current status of the Camera. The return data is ‘CAM_CON1’. 1) PC=>Camera 0xC5 0Xaa 0x80 0x00 CAM_ID 2) Camera->PC 0xC5 0xAA 0x80 0x00 CAM_CON1 0xXX 0xXX 0xXX *Construction of CAM_CON1 data EXPLANATION BIT7 1 : Expose Manual status, 0 : Expose Auto state BIT6 1 : Camera ID Display ON mode, 0 : Camera ID Display OFF mode...
Page 25
11. Read the MENU OSD ON/OFF status Read the current MENU OSD ON/OFF State of the Camera. The return data is ‘M_STATE’. 1) PC=>Camera 0xC5 0xAA 0x8D 0x00 CAM_ID 2) Camera->PC 0xC5 0xAA 0x8D 0x00 M_STATE 0xXX 0xXX 0xXX M_STATE: In case of ‘M_STATE= 0x00’, The MENU OSD is not display currently.
Page 26
KN_SFAR 0x0A In the manual focus mode, moves the Focus lens to ‘FAR’ side quickly. In case of displaying the MENU, operate as the ‘Increase the data of as elected item on the MENU’. KN_SMEAR 0x0B In the manual focus mode, moves the Focus lens to ‘NEAR’...
Page 27
15. White Balance Mode Set Command (0xAA & 0x60 series Command) ; Set the mode of White Balance according to WB_CNT. 1) PC=>Camera 0xC5 0xAA 0x65 WB_CNT CAM_ID 2) Camera->PC 0xC5 0xAA 0x65 WB_CNT 0x65 0xXX 0xXX 0xXX a) WB_CNT : This is a counter to change the mode of White Balance 6.
Page 28
18. Read the current SHARPNESS Data. Read the current SHARPNESS Data of the Camera. The return data is “Sharpness”. 1) PC=>Camera 0xC5 0xAA 0x88 0x00 CAM_ID 2) Camera->PC 0xC5 0xAA 0x88 0x00 Sharpness 0xXX 0xXX 0xXX 19. Read the current BRIGHTNESS Data. Read the current BRIGHTNESS Data of the Camera.
Page 29
2) Camera->PC 0xC5 0xAA 0x84 0x00. AE_MODE 0xXX 0xXX 0xXX - Explanation of “AE_MODE” data WB_MODE EXPLANATION AUTO Exposure mode SHUTTER PRI Exposure mode IRIS PRI Exposure mode AGC ON/OFF Exposure mode MANUAL Exposure mode 22. LINE LOCK mode Setting Set the Line Lock mode of the camera according to the data of “L/L”.
Page 30
24. Digital Zoom Mode ON/OFF Setting Switch the Digital Zoom mode to ON or OFF according to the data of ‘MODE’. 1) PC=>Camera 0xC5 0xAA 0x6E MODE CAM_ID 2) Camera->PC 0xC5 0xAA 0x6E MODE 0x6E 0Xxx 0xXX 0xXX MODE: In case of MODE = 0x01, The Digital Zoom Mode is changed to “ON” mode. In case of MODE = 0x00, The Digital Zoom Mode is changed to “OFF”...
