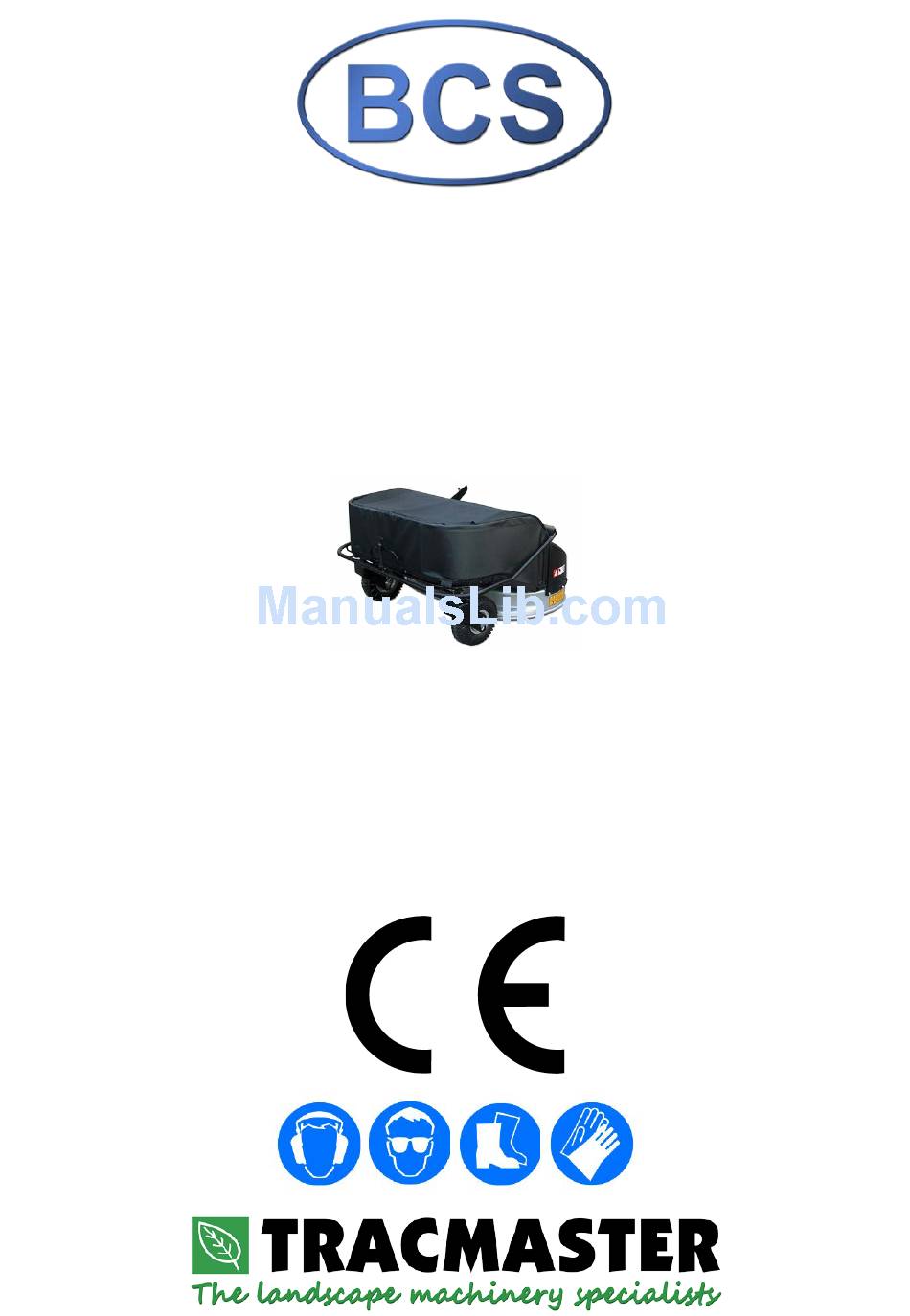

- Page 1 BCS Rotary Mower (100cm) Manufactured by BCS S.p.A. to fit BCS Power Units Operating Instructions Before commissioning the machine, read operating instructions and observe warning and safety instructions. PLEASE ALSO READ ORIGINAL BCS INSTRUCTION MANUAL...
- Page 2 BCS 100cm Rotary Mower Attachment Contents Page 4 Assembly Page 5 Operation Page 9 Maintenance Guide Page 10 Vibration & Sound Levels Page 11 Manufacturer Information IMPORTANT READ CAREFULLY No liability will be accepted for any damage caused to persons or property through failure to observe the operating and safety instructions.
- Page 3 BCS 100cm Rotary Mower Attachment IMPORTANT PLEASE READ THE OWNER’S MANUAL FOR THE POWER UNIT FIRST. For any further information or assistance please contact Tracmaster on 01444 247689 or visit www.tracmaster.co.uk Page 3 TWT/100RM/0617...
- Page 4 BCS 100cm Rotary Mower Attachment Assembly Unscrew nuts [A] and remove the washers and the protection cover for the power take-off (PTO) (fig.4/1). Keep the lawn mower raised approximately 5cm (2”) off the ground using a shim (fig.4/2). Fit the mower onto the flange of the machine using the Fig 4/1 washers and nuts [A] previously removed.
-
Page 5: Operation
BCS 100cm Rotary Mower Attachment Operation Check that the gearbox oil level is correct. Always wear heavy gloves to protect your hands whilst working on the equipment. Do not use the machine near children or animals. Before starting work, observe the following: Study, understand, and follow the safety procedures;... - Page 6 BCS 100cm Rotary Mower Attachment Operation Always disengage the power take-off (PTO) when changing direction or location of operation. Do not replace the blades or attempt to undertake any maintenance of the mower while the machine is running. Only qualified persons should operate the machine.
- Page 7 BCS 100cm Rotary Mower Attachment Operation The adjustment described and the position of the front wheels [A] on the forks [C] (fig.4/4) allow the following cutting heights to be obtained: • From 5cm to 8cm • From 7.5cm to 10.5cm •...
- Page 8 BCS 100cm Rotary Mower Attachment Operation Raise the deflector [2] while re-lowering the basket (fig.4/11). Fig 4/11 Hook the elastic handle on again (fig.4/12). Using the mower without the collection bag Should you wish to use the mower without the grass bag, it is necessary to detach the bag.
-
Page 9: Maintenance Of The Blades
BCS 100cm Rotary Mower Attachment Maintenance Maintenance of the mower deck Every hour, or if an obstacle has been struck during operation, do the following: 1. Stop the engine and remove the spark plug cap. Check engine oil level (recommended oil SAE 10w/40). -
Page 10: Maintenance Guide
BCS 100cm Rotary Mower Attachment Maintenance Guide Cutter block discs The cutter block discs are designed to reduce damage Fig 5/2 to a minimum, in the case of light contact, thanks to the disappearing blades. In case of contact, check for deformations on the discs, make sure the blade housings are in good condition. -
Page 11: Manufacturer Information
Manufacturer Information This machine is manufactured in Italy by BCS S.p.A. Tracmaster Ltd is the UK distributor for this model, the BCS 100cm Rotary Mower. BCS S.p.A. has been at the forefront of developing cutting edge agricultural machinery since its formation in 1943, when their founder developed a self-propelled motor mower. - Page 12 © Tracmaster Ltd 2017. Specifications are subject to change without prior notice. Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR T: +44 (0) 1444 247689 F: +44 (0) 1444 871612 W: www.tracmaster.co.uk E: info@tracmaster.co.uk...
