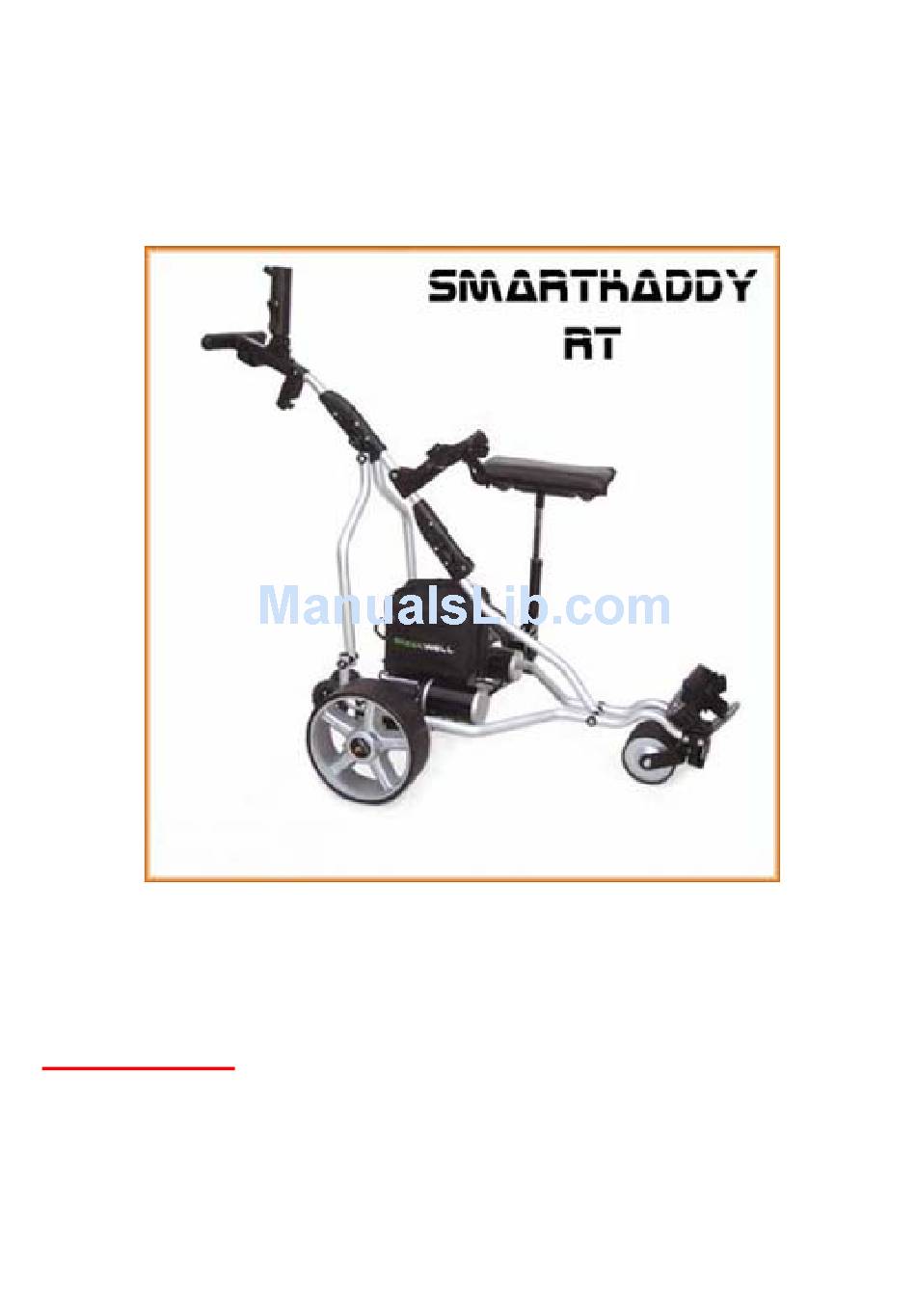

- Page 1 Cruiser AT/RT 604 USER MANUAL ATTENTION: • PLEASE DO NOT OPERATE THE BUGGY BEFORE YOU READ THIS MANUAL • PLEASE FIRST PRACTICE WITH THE BUGGY WITH NO WHEELS ON. THEN FURTHER PRACTICE ON AN OPEN AREA. DO NOT OPERATE THE BUGGY INDOORS.
-
Page 2: Table Of Contents
Cruiser AT/RT 604 Contents Welcome to the world of low stress golf ……………………………………………… Safety Notices …………………………………………………………………………… Using your Cruiser - USE BY CARE …………………………………………… Key Components ……………………………………………………………………….. Features …………………………………………………………………………………. Assembly ………………………………………………………………………………… User Controls ……………………………………………………………………………. Caring Batteries ……………….………………………………………………………… Charging batteries ………………………………………………………………………. Technical Specifications ………………………………………………………………... -
Page 3: Welcome To The World Of Low Stress Golf
Cruiser AT/RT 604 Welcome to the world of low stress golf Welcome and thank you for purchasing the Cruiser Electric golf trolley. The lightweight, powerful Cruiser RT has controllability and ease of use that is second to none. Please take some time to read this manual carefully so that you will get the maximum enjoyment from your Cruiser RT. -
Page 4: Using Your Cruiser - Use By Care
Cruiser AT/RT 604 Using your Cruiser - USE BY CARE We recommend you to have some practise on control of the buggy before you start to use the buggy on golf course. The best practise can be made by removing the rear wheels. -
Page 5: Key Components
Cruiser AT/RT 604 Key Components Handlebar Bottom Locking Catch. Lower Part Speed Control Kn Upper bag Rest Strap Handle Lock bar Seat Umbrella Holder Seat Post Umbrella Holder Bracket Lower Frame Tube Upper Frame Tube Motors Top Locking Catch. Upper Part Lower Bag Rest Top Locking Catch. -
Page 6: Features
Cruiser AT/RT 604 Features Full Remote Control with intelligent controller It can be all controlled with the touch of a button. It can go forward, backward, turn left an ght, acce lerate, decelerate & brake. The compact hand remote gives you complete freedom. -
Page 7: Assembly
Cruiser AT/RT 604 Assembly Step 1: Install the rear wheels Before you unfold the buggy frame, it is better to install the rear wheels. Fit the rear wheels by pressing the locking latch on the outside of the wheel while engaging the wheel onto the axle. - Page 8 Cruiser AT/RT 604 Step 3: Unlock the handlebar locking bar Now your buggy should look like the picture below and ready to be unfolded. Before you unfold the handlebar, unlock the handlebar locking bar from the lower frame. (Unfold the buggy by releasing the top locking catch beneath the handle by sliding it forward) Fig.7 Folded buggy Unlock handle locking bar...
- Page 9 Cruiser AT/RT 604 Step 5: Install The Battery Cable if it is not connected If you receive the battery with no battery cable attached, please assembly the battery cable with care. Remove the fuse (25 or 30Ah) from the fuse holder first preventing a short during installation.
- Page 10 Cruiser AT/RT 604 Step 7: Position The Golf Bag Undo the upper and lower bag rest straps. Rest the golf bag on the mounts and tighten the straps around the top and bottom of the bag. It is important to ensure that the bag is securely attached, as the bag braces the Cruiser handle and integral to the rigidity of the Cruiser.
-
Page 11: User Controls
Cruiser AT/RT 604 User controls Manual Controls Manual controls are positioned on the T-shape handlebar. The speed is set by a speed control knob at the side of the operation board. This can be set to adjust the speed of the trolley from about 0kph to p to 10kph (depends on the model). - Page 12 Cruiser AT/RT 604 Remote Control Remote transmitter operates with a battery (provided). The remote range is about 50 meters. This range may vary depending on the terrain conditions, interferences by other sources and the power level of the battery in the remote. Remote control provides 14 speed levels. Speed can be increased or decreased by pressing the (+) or (-) buttons continuously.
-
Page 13: Caring Batteries
Cruiser AT/RT 604 CARING BATTERIES The SLA AGM batteries typically achieve a working lifetime about 250-300 cycles, depending on the depth of cycling and the operating temprature. However their life will be shorter after each time they are charged. So, they should be considered as consumable products. - Page 14 Cruiser AT/RT 604 • Don’t use the charger in overly wet and high temperature environments. • Don’t open the charger to repair it. The charger has two lights which monitor the charging process. - the mains power is on and the batteries are charging rapidly. (Rapid Charge) GREEN –...
-
Page 15: Technical Specifications
Cruiser AT/RT 604 TECHNICAL SPECIFICATIONS Frame High strength aluminium Motor Dual 200W / 12 Volt (RT Model) Speed Adjustable from 1-10km/hr (depends on the terrain) Climbing 15-20 degree (depends on the terrain and battery state) Remote range (RT 40-60 metre; depends on the terrain and interference Model) conditions. -
Page 16: Troubleshooting
Cruiser AT/RT 604 TROUBLESHOOTING We believe that your Cruiser is the most reliable golf trolley available. It has no gears to wear, No brushes to wear, and a very reliable battery. All pivots have been designed to eliminate wear. The following will guide you if you have any problem : Symptom Cause Remedy... -
Page 17: Warranty Card
Cruiser AT/RT 604 Any trolley or component which has been abused ,misused ,altered ,or attempted to be repaired by other than authorised agent, or any battery which has not been used and maintained according to these instructions ,is specifically excluded from this warranty. WARRANTY CARD You are advised to complete your details below and attach your original proof of purchase.
