Summary of Contents for DLG Peal Vision Q-EYE Q10

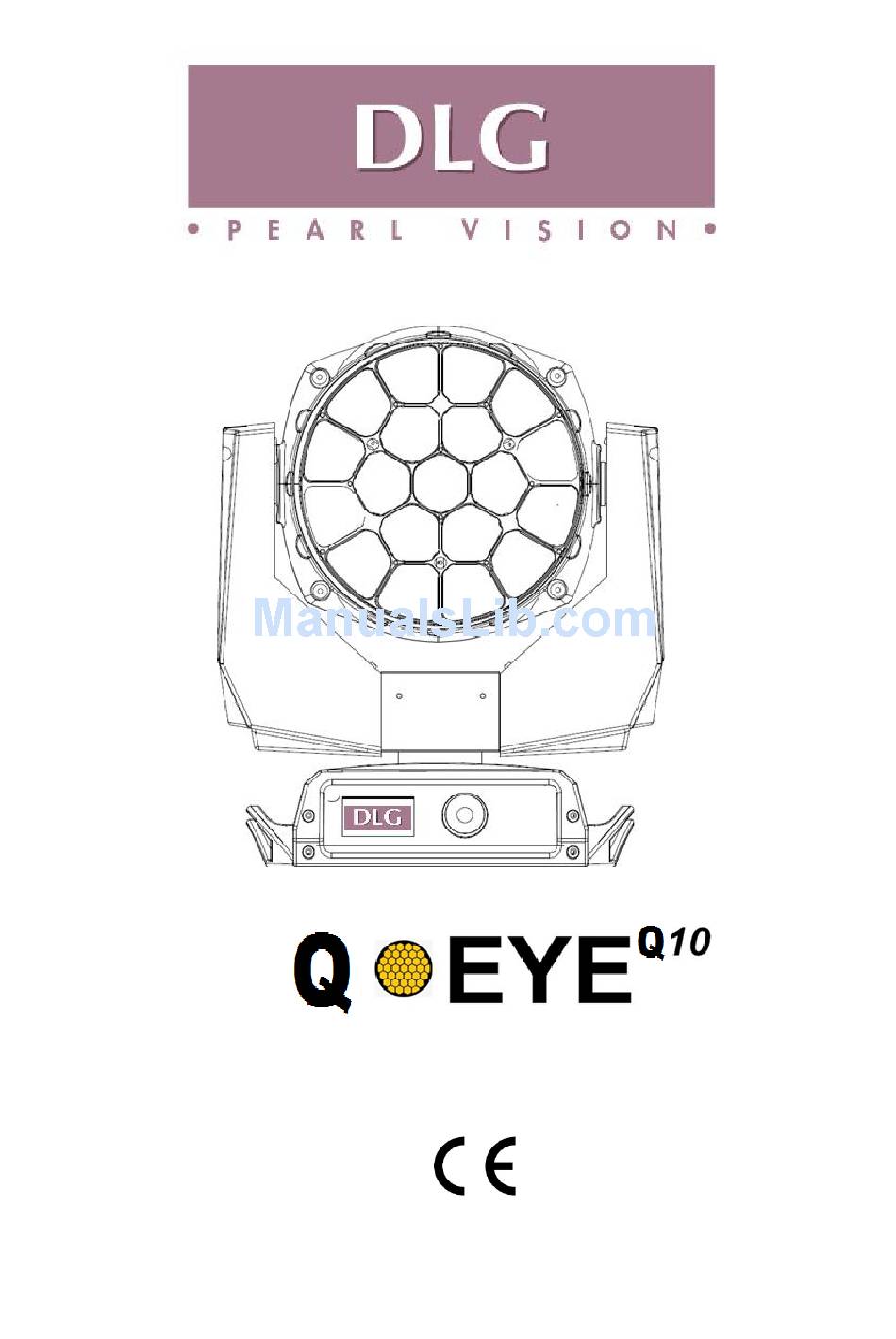

Page 1 KEEP THIS USER MANUAL FOR FUTURE NEEDS...
Page 2: Table Of Contents
1. Introduction ..................3 2. General Guidelines ................3 3. Safety Instructions ................4 4. Cleaning and Maintenance ..............5 5. Technical Parameters................6 6. Functions of Buttons ................7 7. Menu Function..................8 8. DMX Channels ..................10 9. Macour Color Details ................12 10.
Page 3: Introduction
Thank you for your patronage! We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install, operate, and maintain the lighting safety correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.
Page 4: Safety Instructions
turned in the quick lock holes correctly. Operate the device only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation. Please use the original packaging if the device is to be transported. For safety reasons, please be aware that all modifications on the device are forbidden.
Page 5: Cleaning And Maintenance
CAUTION! Never touch the device during operation! The housing may heat up! CAUTION! Never look directly into the light source, As sensitive persons may suffer an epileptic shock. Please be aware that damages caused by manual modifications to be the device are not subject to warranty.
Page 6: Technical Parameters
TECHNICAL PARAMETERS POWER SUPPLY Voltage:110-240V 50/60 Hz LIGHT SOURCE 19x15w RGBW 4in1 Osram Ostar Leds Dedicated channel for color temperature setting: 2500K-8000K adjustable Average life: 50,000 h OPTICS Special Pods: 5cm x19pcs, convey the light output of each led to the quadrangle lens, internal light dissipation is decreased, color mixing and the light output are enhanced.
Page 7: Functions Of Buttons
FUNCTIONS OF BUTTONS Reversal of the display To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode.This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Page 8: Menu Function
MENU FUNCTION...
Page 10: Dmx Channels
DLG Q-EYE Q10 EASY CHANNEL LIST STANDARD SHAPE EXTENDED EXTENDED RGBW FULL Channel Mode Channel Mode Channel Mode Channel Mode Channel Mode Red fine Red fine Red fine Red fine Red fine Green Green Green Green Green Green fine Green fine...
Page 11 DLG Q-EYE Q10 CHANNEL LIST STANDARD SHAPE EXTENDED EXTENDED RGBW FULL Channel Mode Channel Mode Channel Mode Channel Mode Channel Mode Red fine Red fine Red fine Red fine Red fine Green Green Green Green Green Green fine Green fine...
Page 15: Shape Details
CONCEPTS: FOREGROUND AND BACKGROUND The powerful shapes engine embedded in the DLG Q-EYE Q10 and Q10 EASY allows the user to set all the possible parameters relating to the pixels of the light in an organic way, with a distinction between the pixels affected by a selected "image"...
Page 16 SHAPE SELECTION*SHAPE SPEED*SHAPE OFFSET*SHAPE FADE*BACKGROUND SELECT Random Shape Shape Background Shape Speed Shape Offset Shape Fade Colors Shape Name Selection Slot Select(*3)(*4) Macro OFF Pixel 1 Ring 1 0=snap Ring 2 0-7=Wash effect Reserved 8-15=Bgrings 1-255=Fade Pixel 1+ring1 16-255 wash effect Pixel 1+ring2 Reserved...
Page 17 Background Shape Shape Random Shape Speed Shape Offset Shape Fade Select Shape Name Selection Slot Colors *1 (*3)(*4) 0 = Snap 0-255 → select effect Bar 2 (Variable size) shape width 1-255 Fade effect 0=Snap effect 0-255 → select Rando explosion 1-255=select Random distribution the wake of...
Page 18: Led Pixel Details
DLG Q-EYE Q10 & EASY LED reference number for pixel mapping TILT: channel 16 @ 200 bit...
Page 19: Remark
PACKING CONTENTS CAUTION! Before packing, please get the zoom lens back inside.(Please match the ARROWS with the DOT) Without this operation, there will be damage of the fixture! REMARK The product has perfect performance and intergrity packing. All users should be strictly comply with the warning and operating instructions as stated.
