Summary of Contents for Gecko GALILEE CLASSIC PSC8330

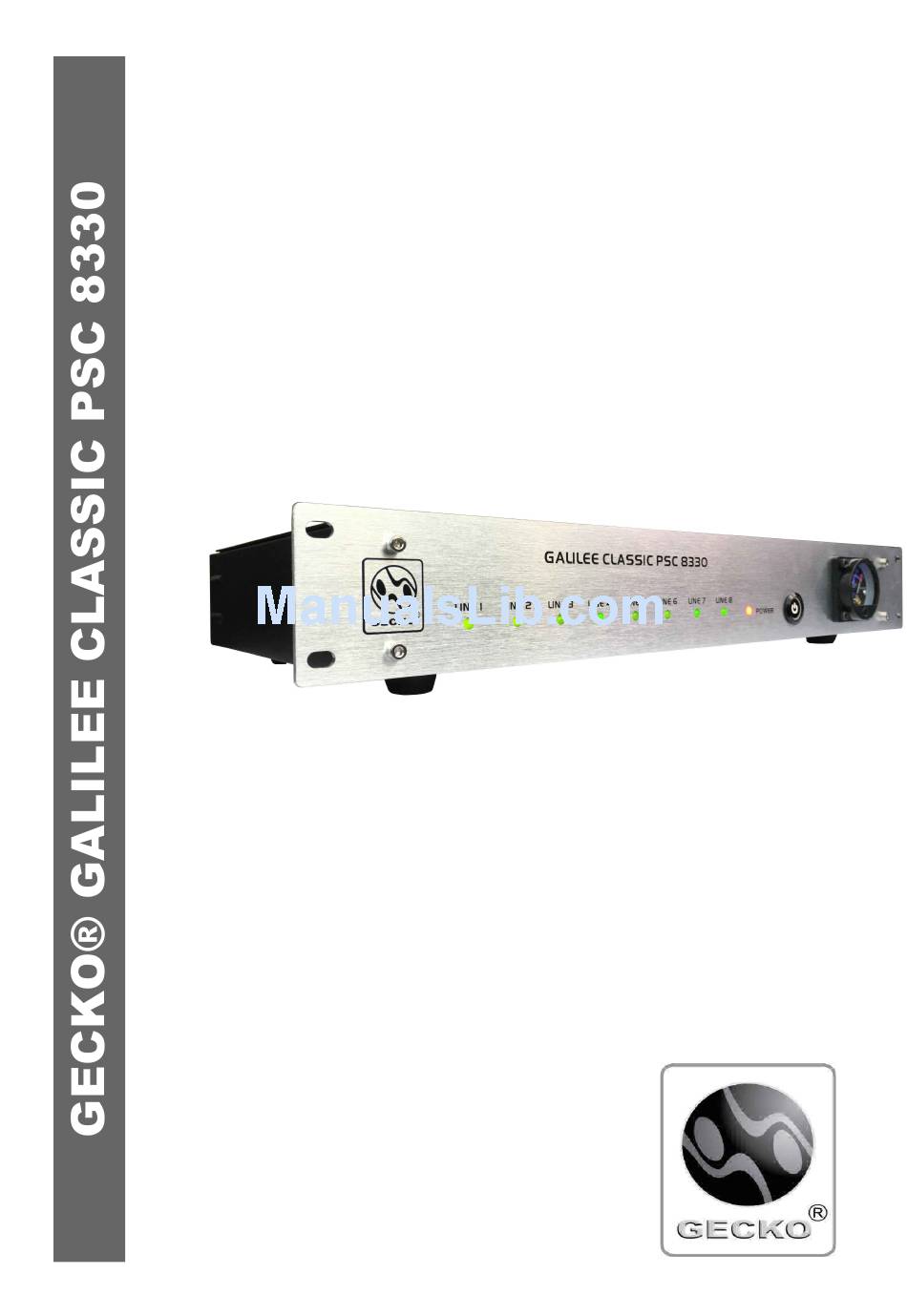

- Page 1 OWNER'S MANUAL OWNER'S MANUAL www.geckomusic.net www.geckomusic.net...
- Page 2 GECKO® SAFETY INSTRUCTIONS & SYMBOLS GUIDE GECKO® SAFETY INSTRUCTIONS & SYMBOLS GUIDE For your own safety and to avoid invalidation of the warranty, all text marked with these symbols should be read carefully. SYMBOLS: SYMBOLS: NOTES NOTES Contain important information and useful tips on the operation of your equipment.
- Page 3 1.50 1.00 0.50 0.25 or less Human pain threshold GECKO MUSIC GROUP GECKO MUSIC GROUP No. 59, 59-1, 61, 61-1, 63, 63-1, Jalan PE 3, Taman Paya Emas, Paya Rumput, 76450 Melaka, Malaysia. Mobile: +6012.204 2175 Email: info@geckomusic.net • Website: www.geckomusic.net...
- Page 4 C.R.I.S.T.A.L.® Audiophile technology that is changing the way how sound is being encoded, reproduced and managed! On behalf of GECKO MUSIC GROUP, I would like to pledge our continuing commitment to uphold our traditions in serving music and audio communities around the world with more value-added highest possible quality GECKO®...
- Page 5 CONTROL ELEMENTS SPECIFICATIONS WARRANTY NOTES: Congratulations on purchasing the all new GECKO® GALILEE CLASSIC PSC 8330 power sequencer! We recommend that you take a moment and read through the manual as it provides information that will assist you in using your unit to its fullest potential.
- Page 6 To reduce the chances of mistaken identity of the universal AC outlets by the user, the GECKO® GALILEE CLASSIC PSC 8330 front panel LINE 1 to 8 ascending order is set from left to right, identifiable with lighted green LED. Its rear panel LINE 1 to 8 universal AC outlets ascending order is also set from left to right;...
- Page 7 (ON/OFF) status. The LED lights up (green) when the relevant AC outlet is active (ON). 4. ANALOGUE VOLTMETER This analogue voltmeter is for real time AC mains monitoring. It lights up blue when the GECKO® GALILEE CLASSIC PSC 8330 is connected to an external 220VAC ~ 240VAC, 50Hz/60Hz electrical supply.
- Page 8 ¼” TS connector into the GRSW ¼” TS socket. Terminate the other end of the wire with a trigger switch type of your choice. You can now control the GECKO® GALILEE CLASSIC PSC 8330 via this cable trigger switching.
- Page 9 This unit comes fitted with a 1.6m, unterminated three cores 60227 IEC 53 (RVV) 300/500V rated power cord. You can terminate it with any AC plug type of your choice. Wiring color codes: green/yellow = ground; = live; black = neutral. ______________________________________________________________________________________ © GECKO MUSIC GROUP. All Rights Reserved.
- Page 10 Electromagnetic Interference (EMI) Filter: 20dB at 200kHz, rising to >40dB, 1Hz ~ 100MHz Surge & Transient Protection: High Voltage Varistor (MOV) Suppressor Remote Switching: GECKO® Remote Switching (GRSW) via ¼” TS Socket (1) Physical Properties: Enclosure: Steel with Brushed Aluminium Faceplate Color: Metallic Grey (Enclosure) / Silver (Brushed Aluminium Faceplate) / Black (Metal Push Button Switch) Power Cord: 3 Cores 60227 IEC 53 (RVV) 300V/500V 10mm²;...
- Page 11 ® TERMS OF WARRANTY WARRANTY: GECKO MUSIC GROUP warrants its GECKO® products for a period of three (3) years from the original date of purchase, in accordance to the warranty regulations described below. WHAT IS COVERED: During the applicable warranty period, GECKO MUSIC GROUP warrants the product against defects in materials and workmanship and against malfunctions.
- Page 12 Products which do not meet the terms of this warranty will be repaired exclusively at the buyer’s expense. GECKO MUSIC GROUP will inform the buyer of such circumstance. If the buyer fails to submit a written repair order within six (6) weeks after notification, GECKO MUSIC GROUP will return the unit C.O.D. with a separate invoice for freight and packing.
