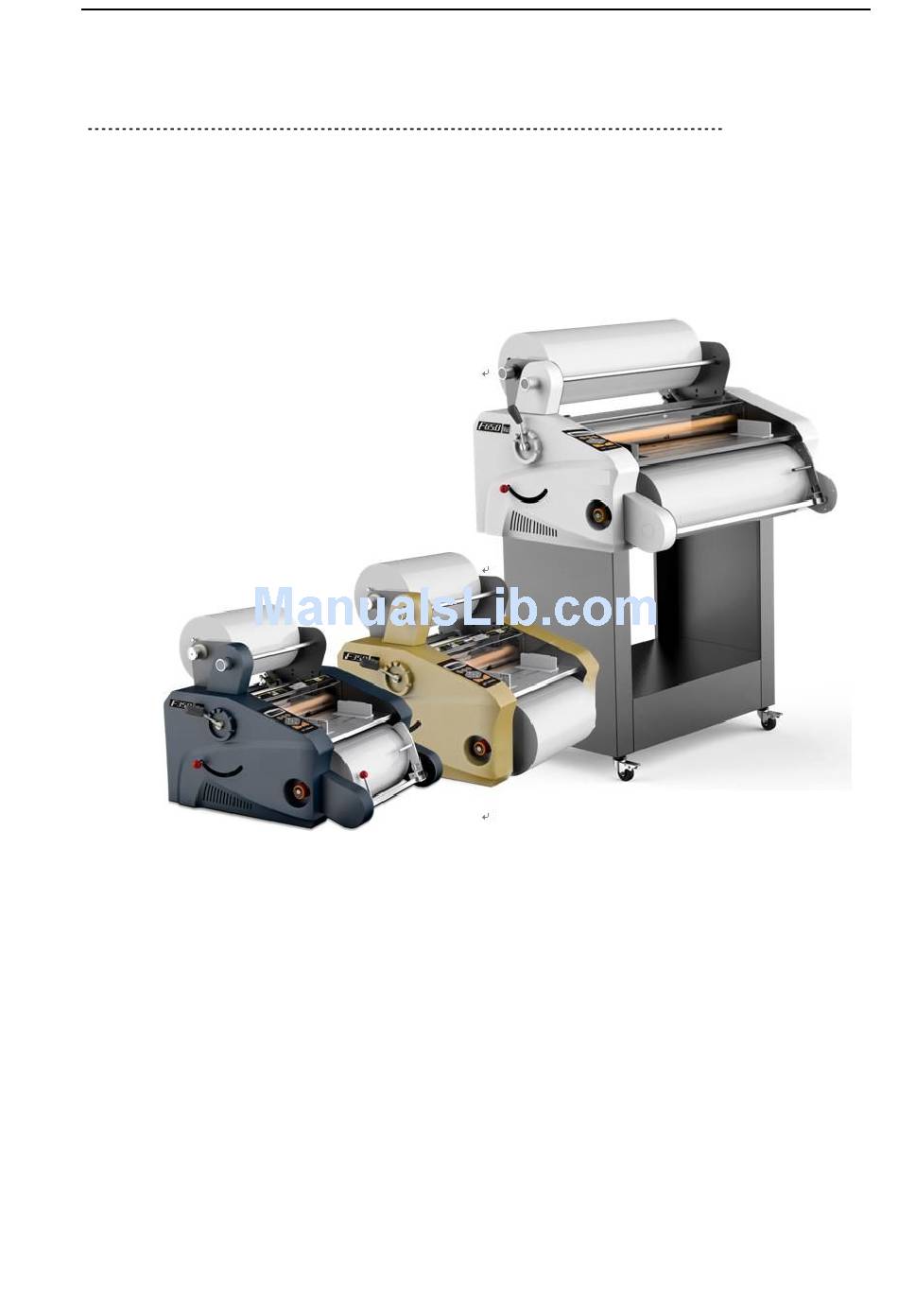

- Page 1 F350/F650 laminator manual If any change, we won’t make the notice, please make the object as the standard. March.2014. (second edition)
-
Page 2: Table Of Contents
F350,F650 Laminator manual Contents …………………………………………………………………1 foreword Notes of safety ……………………………………………………………1 1、open box and check……………………………………………………2 2、 Name and function of parts ……………………………………………3 3、Technical parameter …………………………………………………5 4、Operation panel …………………………………………………………6 5、 Controllable parts and keys ………………………………………………7 6、 How to use the machine …………………………………………………11 6.1 How to work………………………………………………………11... -
Page 3: Foreword
F350,F650 Laminator manual foreword Thank you for your choosing our product. In order to correct use this product , kindly read this manual carefully. Take care every operate detail. Therefore it will help your operate skills and make the perfect production and improve the operate speed. -
Page 4: 1、Open Box And Check
F350,F650 Laminator manual 1、 open box and check Kindly check the accessory, after open the laminator box，any damage or miss, kindly contact the agent or head company. （1） Machine （2） Manual or CD Machine （3） warranty card （4） Film（Installed） Manual warranty card Note：... -
Page 5: Name And Function Of Parts
Laminator manual 2、 Name and function of parts Before use and install this machine, Kindly know the name and function of parts by the below photo . 2.1、F350 parts and function Cold film tension adjusting safety cover handle (only for F350C、F350B) - Page 6 F350,F650 Laminator manual 2.2、F650 Name and function of parts up film tension adjusting handle safety Left Paper fixed position Cold film tension adjusting handle Right Paper fixed position (only F650B) right cover pressure wheel Gear knife handle left cover (only for F650B)
-
Page 7: Technical Parameter
F350,F650 Laminator manual 3、Laminator Parameter Type F350 F350B F350C F650 F650B Paper width 130-350 130-350 130-350 130-650 130-650 （mm） paper length 110-999 110-999 110-999 110-999 110-999 （mm） paper thickness 80-400 80-400 80-400 80-400 80-400 （g/㎡） Speed （m/h） Feeder Manual Manual... -
Page 8: Operation Panel
F350,F650 Laminator manual 4、Operation panel Speed setting Counter Setting paper Set temp. distance （LCD display）... -
Page 9: Controllable Parts And Keys
F350,F650 Laminator manual 5、control unit and key function 5.01 power switch （ “ON”） ，power on Shift to the upper （ “OFF” ） ，power off Shift to the lower power switch 5.02 confirm key press“E” key to choice the menu functions confirm key ,press，... - Page 10 F350,F650 Laminator manual 5.06 speed key （ setting speed ） After press “ speed key” ， speed key is shinning， means you can set the speed, press “ ∧” or “ ∨” can modify the temp.，after setting，press “speed key”to confirm。...
- Page 11 F350,F650 Laminator manual 5.10 paper length setting press “ E” enter into menu， press “ ∧” “ ∨” key to choose “paper length setting” menu， press again “E” to confirm， paper length key is shinning，means can set the paper length now。press“∧”...
- Page 12 F350,F650 Laminator manual 5.14 laminating mode press “ E” key into menu， press “ ∧” “ ∨” key to choose “laminating mode” menu， press “E” to confirm， laminating mode key is shinning， mode detail: double sides laminating、 up laminating、 down laminating。 press “∧” “ ∨”...
-
Page 13: How To Use The Machine
F350,F650 Laminator manual 6、How to use the laminator 6.1、start to work 6.11 、 check the shipping fixed screw and belting is removed or not； （Pic-1） 6.12、Switch on the plug，and power on, the machine is heating (same as pic-1)，Means the machine is starting normally；... -
Page 14: Operation Steps
F350,F650 Laminator manual 6.18、According the actual effect to setting the film tension and gap of rolls which avoid the paper bending and wrinkle .； Note： 1、Single laminating，tension is more light，paper bending is more small（pic 4） ； 2、anti-bending adjustment:: 6 level，From big to small：... -
Page 15: Clean Jammed Films
F350,F650 Laminator manual 6.24、 when catch the setting temperature， Put the up film on heating roll, （see pic.3）Put the guide paper up and stick on the glued film, and put the down film also stick on， put on safety cover， install the working table，... -
Page 16: Clean Jammed Films
F350,F650 Laminator manual 6.4、Wrinkles adjustment： If there is any wrinkles, Anticlockwise loose the intension adjustment key, and clockwise to adjust it till no wrinkles. If single laminating，We just adjust the up glued film to solve this problem；In order to less wrinkles, Up stretching at the film’s exit. -
Page 17: Daily Maintenance
F350,F650 Laminator manual 7.2、Under the glued film can be melted ,we can setting the temperature more lower , so that the film glue is melting as the best situation (the glue is melting from white color to transparent, means it start to have the toughness) . -
Page 18: Self Checking
F350,F650 Laminator manual 9、Self -checking Press on“E”key and turn on power to enter the checking situation.。 Checking the following in turn。 checking operating judgment method solution content safety cover LCD appear ”0” sensor “0” ,means sensor safety cover Safety Open the normal don’t... -
Page 19: Troubles And Troubleshooting
F350,F650 Laminator manual 10、 Troubles and Troubleshooting troubles trouble reason solution safety cover Check Cover up the safety cover error safety cover 1、check up temp. sensor wire is well Check temp. or not。 rolls sensor error 2、change the main board or temp. -
Page 20: Electrical Diagram
F350,F650 Laminator manual 11、 Electrical diagram -18-...
