Summary of Contents for Costar CDT2312IR

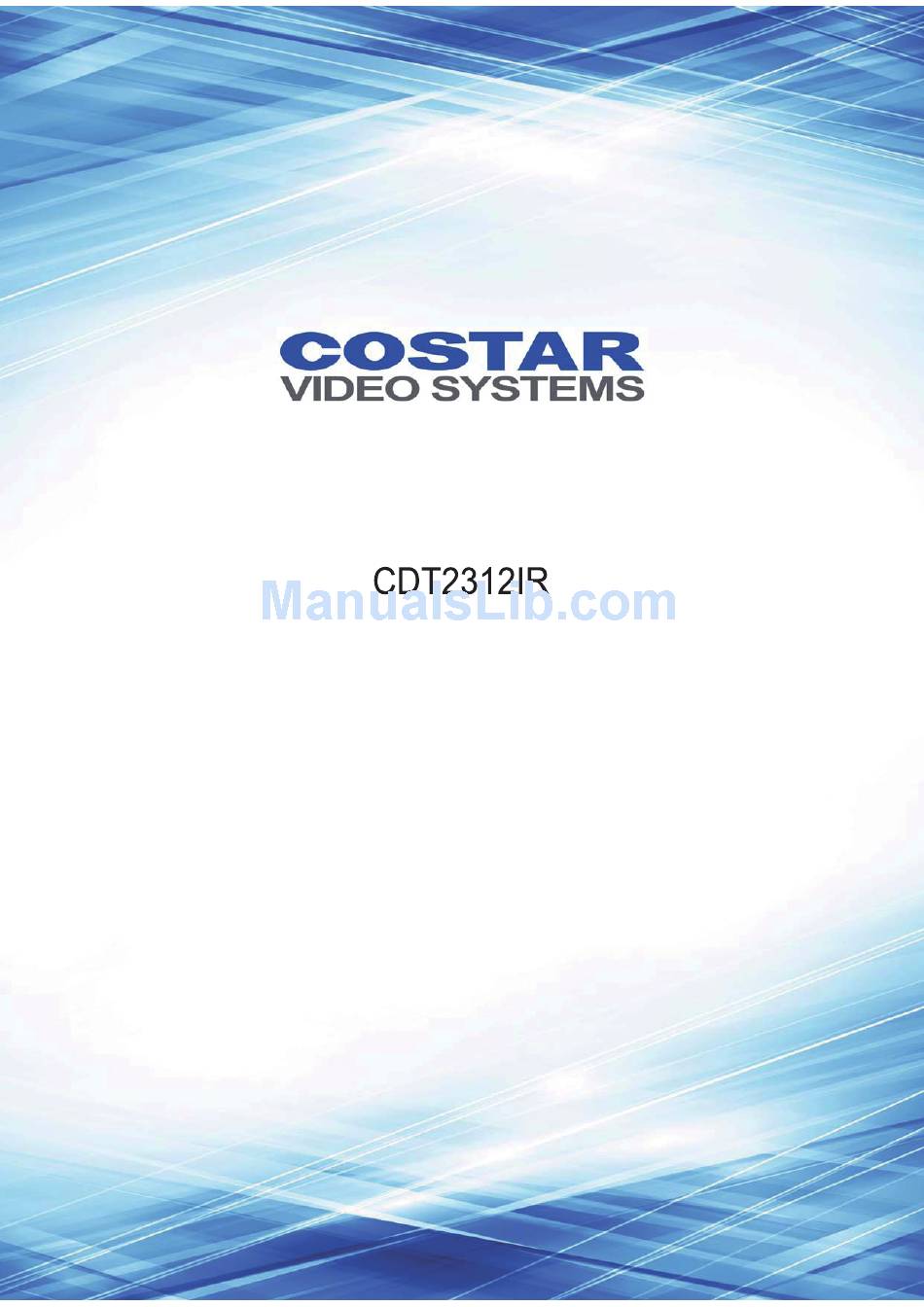

- Page 1 USER MANUAL...
- Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ISO14001 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 Contents Precautions Safety Instructions Menu Set Up Set Up Menu Menu Set Up Video Out Day&Night Special Effect System Exit Trouble Shooting - 3 - www.costarvideo.com...
- Page 4 Only use the camera under conditions Severe lighting change or flicker can where temperatures are between cause the camera to work improperly. -10°C and +50°C. Be especially careful to provide ventilation when operating under high temperatures. This is one of the most important parts of the It can cause malfunctions to occur.
- Page 5 7KLV FDPHUD VKRXOG EH LQVWDOOHG E\ TXDOL¿HG SHUVRQQHO RQO\ 7KHUH DUH QR XVHU VHUYLFHDEOH SDUWV LQVLGH Do not disassemble this camera other than to make initial adjustments 8VH DSSURSULDWH ORZ YROWDJH SRZHU FDEOH WR SUHYHQW ¿UH RU HOHFWULFDO VKRFN 3OHDVH LQVXUH WKDW \RXU LQVWDOODWLRQ DUHD FDQ VXSSRUW WKH ZHLJKW RI WKH FDPHUD 'R QRW XVH D VWURQJ RU DEUDVLYH GHWHUJHQW ZKHQ FOHDQLQJ WKH FDPHUD 'R QRW H[SRVH WKH FDPHUD WR GLUHFW VXQ 'R QRW LQVWDOO FDPHUD LQ SODFHV ZKHUH KXPLGLW\ LV KLJK...
- Page 6 - 6 - www.costarvideo.com...
- Page 7 - 7 - www.costarvideo.com...
- Page 8 Menu setting can be selected by the button inside the camera. 1. Press the set button. * The MAIN menu will be displayed on the monitor. MAIN MENU 1.VIDEO OUT 2.DAY/NIGHT 3.AWB 4.AE 5.SPECIAL 6.EFFECT 7.SYSTEM 8.EXIT 2. Move and select the required function using the Up and Down button. * Move the triangular indicator Up or Down to select the desired feature by pressing the Up or Down button.
-
Page 9: Video Out
3. Change menu settings using the Left or Right button. * Available values or Status are displayed by pressing the Left or Right buttons. Press the button until desired value / status is displayed. 4. After Changing the setting move the arrow indicator to EXIT and press the SET button to EXIT. -
Page 10: Day&Night
You can change the color mode of color or black / white by setting up the mode. 1. Select Day&Night using the Up or Down button on the MAIN menu screen. 2. Select the desired mode using the Left or Right buttons. MAIN MENU 1.VIDEO OUT 2.DAY/NIGHT... - Page 11 EXT : It can change the color or B/W mode automatically through the connection with the ground terminal.(Option for box camera and IR camera) D TO N : Not available. N TO D : Not available. DELAY TIME : Set the delay time for switching between color and B/W. DAY/NIGHT 1.MODE COLOR...
- Page 12 The function to search for the color which is matched well with the ambient environment. 1. Move the triangular indicator to WHITE BAL on the MAIN menu screen using the Up and Down button. 2. Select the desired mode by using the left or Right button. MAIN MENU 1.VIDEO OUT 2.DAY/NIGHT...
- Page 13 Use this function when the color adjustment of a screen is needed. 1. Move the triangular indicator to WHITE BAL on the MAIN menu screen using the Up and Down button. 2. Select the desired mode by using the left or Right button. MAIN MENU 1.VIDEO OUT 2.DAY/NIGHT...
-
Page 14: Setup Menu
AGC : The higher the AGC level is, the more noises appear. 1~5 Level selectable. LSC : Lens shading compensation. On this menu, backlight image can be compensated by users selecting one of modes.(HLC, BLC, WDR) 1. Move the triangular indicator to BACKLIGHT on the SETUP menu screen using the Up and Down button. 2. - Page 15 PRIVACY ZONE 1.AREA SEL. AREA1 2.MASK PAT. 3.SX 4.EX 5.SY 6.EY 7.RETURN - AREA1 / AREA2 : Select a mask out of the 2 mask areas and set the options below for the selected mask. MASK PAT. : Define the OFF / BLACK / GRAY / WHITE of the mask color. SK : Define the horizontal size position of the privacy mask.
-
Page 16: Effect
1.HLC 2.MASK VALUM 3.THRESHOLD 4.RETURN - HLC : This fuction is used to surpress or strong light source (for example, headlights of cars during nighttime) so that other subjects can be seen in more detail. If you select HLC, a submenu appears where you can make finer adjustments. - Page 17 EFFECT 1.COLOR GATE 2.COLOR HUS 3.SHARPNESS 4.CONTRAST 5.BRIGHT OFF. 6.MIRROR 7.FLIP 8.RETURN COLOR GATE : Changes the color gain of the camera. COLOR HUS : Changed the color HUS of the camera. SHARPNESS : Adjusts the image sharpness. If the level goes up excessively, it may affect the video image and generate a noise.
-
Page 18: System
This can be used when you want to select the additional function control. 1.When the MAIN menu is displayed, select SYSTEM using the Up and Down button. 2. Select one of the mode using the Up and Down button. MAIN MENU 1.VIDEO OUT 2.DAY/NIGHT 3.AWB... -
Page 19: Exit
Press the Set button in the exit menu to save the current settings and exit the MAIN menu. MAIN MENU 1.VIDEO OUT 2.DAY/NIGHT 3.AWB 4.AE 5.SPECIAL 6.EFFECT 7.SYSTEM 8.EXIT EXIT 1.SAVE/EXIT 2.EXIT 3.RETURN - 19 - www.costarvideo.com... -
Page 20: Motion Detection
&KHFN WKH SRZHU FDEOH SRZHU VXSSO\ RXWSXW DQG YLGHR 1RWKLQJ DSSHDUV RQ FRQQHFWLRQ EHWZHHQ WKH FDPHUD DQG PRQLWRU the screen. $UH WKH FDPHUD OHQV RU WKH OHQV JODVV GLUW\" &OHDQ WKH OHQV JODVV ZLWK D VRIW FOHDQ FORWK 7KH LPDJH RQ WKH $GMXVW WKH PRQLWRU FRQWUROV DV UHTXLUHG screen is dim. - Page 21 - MEMO - - 21 - www.costarvideo.com...
- Page 22 - MEMO - - 22 - www.costarvideo.com...
- Page 23 - MEMO - - 23 - www.costarvideo.com...
