Server CCP Manual

With bp-1 1/2 oz pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

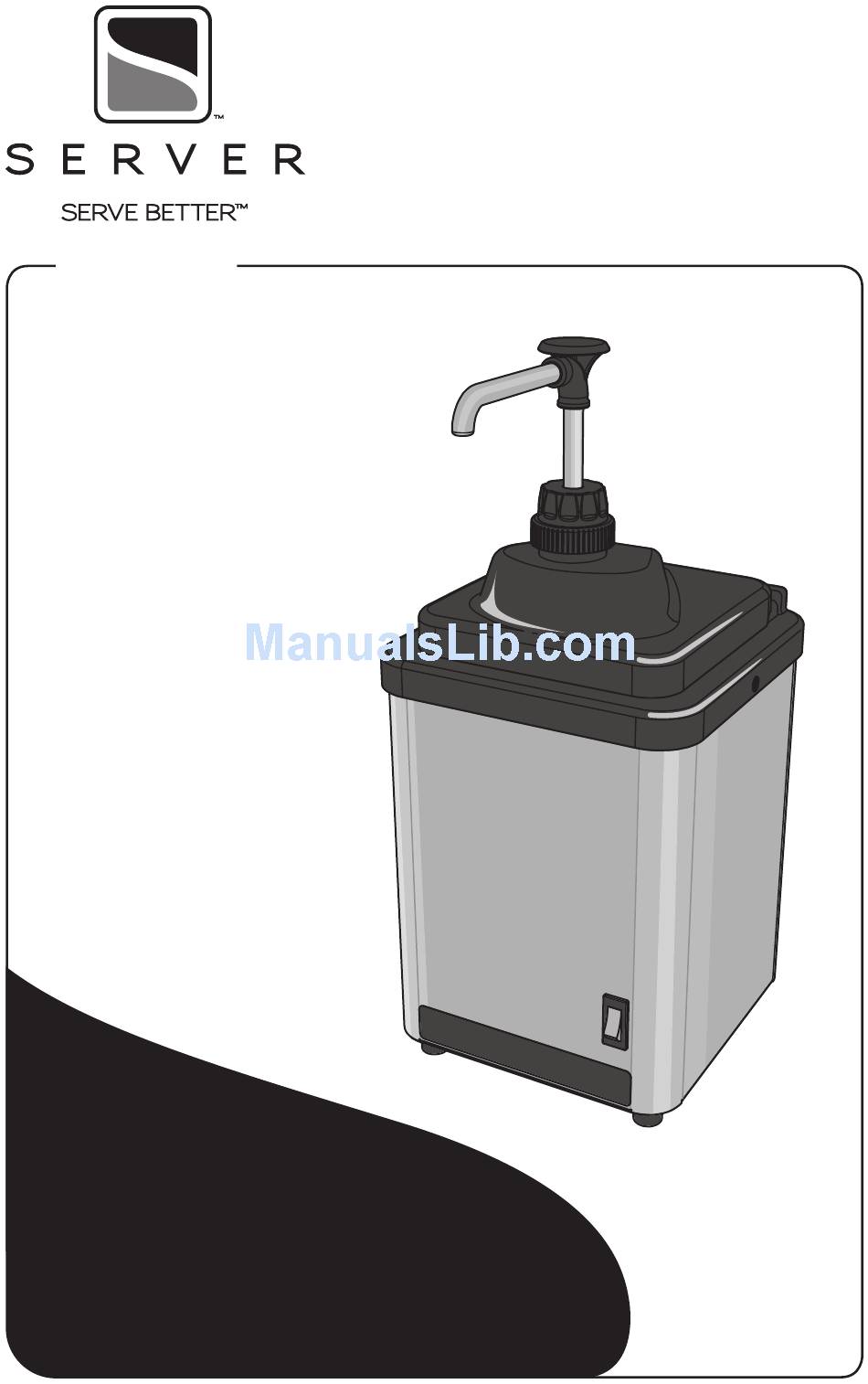

Chiller
with BP-1
1/2 oz Pump
MODEL: CCP
CHILLER
WITH BP-1 1/2 OZ PUMP
80041
120V
BP-1 1/2 OZ PUMP ONLY
88148
Thank You
...for purchasing our Chiller with 1/2 oz Pump.
This quality, NSF listed pump delivers precise,
chilled portions from a quiet, energy efficient unit.
CONSISTENT 1/2-OUNCE PORTIONS—SERVE BETTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Server CCP

Summary of Contents for Server CCP

  • Page 1 Chiller with BP-1 1/2 oz Pump MODEL: CCP CHILLER WITH BP-1 1/2 OZ PUMP 80041 120V BP-1 1/2 OZ PUMP ONLY 88148 Thank You ...for purchasing our Chiller with 1/2 oz Pump. This quality, NSF listed pump delivers precise, chilled portions from a quiet, energy efficient unit.
  • Page 2 PUMP FOR CHILLER BP-1 1/2 OZ CHILLER PUMP 88148 GAGING COLLARS: 1/8 OZ REDUCTION 88313 1/4 OZ REDUCTION 88204 1/2 OZ REDUCTION 88205 LOCKING COLLAR STOP COLLAR PISTON 88409 SEAL 83005 PINCH VALVE 88202 SPRING 88166 BP TOOL CYLINDER ASSEMBLY 88129 88348 (Assists with...

  • Page 3: Chiller With Pump

    CHILLER WITH PUMP CHILLER WITH 1/2 OZ PUMP MODEL: CCP 80041 BP-1 1/2 OZ CHILLER PUMP 88148 VESSEL WITH THERMOMETER STRIP 86144 86938 CORD WITH CONNECTOR 86584 12V ROCKER SWITCH 86032 CHILLER FAN 86007 FILTER (PACK OF 5) 86067 (Replacement feet available.
  • Page 4 Be aware of the product you are serving and the temperature the product is required to maintain. Server Products, Inc. can not be responsible for the serving of potentially hazardous product. Server Products, Inc. claims no responsibility for actual serving temperature of product.

  • Page 5: Pump Assembly

    PUMP ASSEMBLY CLEAN PUMP THOROUGHLY BEFORE EVERY USE. See page 9. SNAP ON GAGING COLLAR(S) To set portion size to 1/2 oz: Attach largest gaging collar (1/2 oz reduction) and black stop collar between locking collar and piston. (Other gaging collars may be added to decrease portions by 1/8 and 1/4 oz.) INSTALL SEAL onto head assembly piston.

  • Page 6: Unit Setup

    UNIT SETUP CLEAN UNIT THOROUGHLY BEFORE EVERY USE. See page 8. PLUG CORD IN Connect unit, adapter and plug into outlet. PRESS SWITCH ON PRE-COOL FOR 20 MINUTES REMOVE PUMP INSERT VESSEL • Product being served must always be inside vessel. Never place food directly into basin of unit.

  • Page 7: Cleaning Or Replacing Filter

    REPLACE FILTER CLEAN FILTER • Wash with hot water and Packs of 5 replacement filters are available. dishwashing detergent. Order Server Products Part 86067. • Fully rinse. 262.628.5600 | 800.558.8722 | spsales@server-products.com IF NECESSARY, CLEAN FAN COVER WARNING- • Dampen cloth with dishwashing liquid ELECTRICAL SHOCK COULD OCCUR or mild sanitizing detergent.
  • Page 8 CLEAN-IN-PLACE PROCEDURE FOR PUMPS CLEAN • Pump out all (if any) remaining food product from inside pump body. • Wash and rinse off outside of pump body. • Flush out and rinse inside of pump. • Place lower end of pump into container full of water and operate pump until all (if any) remaining product is expelled and only warm water flows from discharge tube.

  • Page 9: Pump Disassembly

    PUMP DISASSEMBLY During disassembly, collect small parts in a container to prevent loss. THE BP TOOL may be used to remove the pinch valve and seal from the piston. CLEAN THE PUMP FLUSH & RINSE YES! all pump surfaces with hot water. Place lower end of pump into container Use dishwashing of hot water and operate pump until all...

  • Page 10: Troubleshooting

    TROUBLESHOOTING UNIT DISPENSES LITTLE OR NO PRODUCT? INCONSISTENT PORTIONS? • Clean pump. • Ensure vessel is not empty and has enough product to pump. • Ensure unit is assembled correctly. TIP: Seal has a slight taper. Install with flat side towards top, flared side down.
  • Page 11 WIRING BLACK Chiller Circuit Board, 3.35V Chiller Fan Lighted Rocker Switch, 12V Power Inlet Assembly Connector Power Supply, 5", 5A, 4 Pin Connector Thermistor Chip Assembly Wire Harness, Ground Page 11...

  • Page 12: Care Of Stainless Steel

    Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number. Service is extremely prompt. Typically, units are repaired Server Products equipment is backed by a and ship out within 48 hours of receipt.
