Summary of Contents for Mobilator MT02A Standard

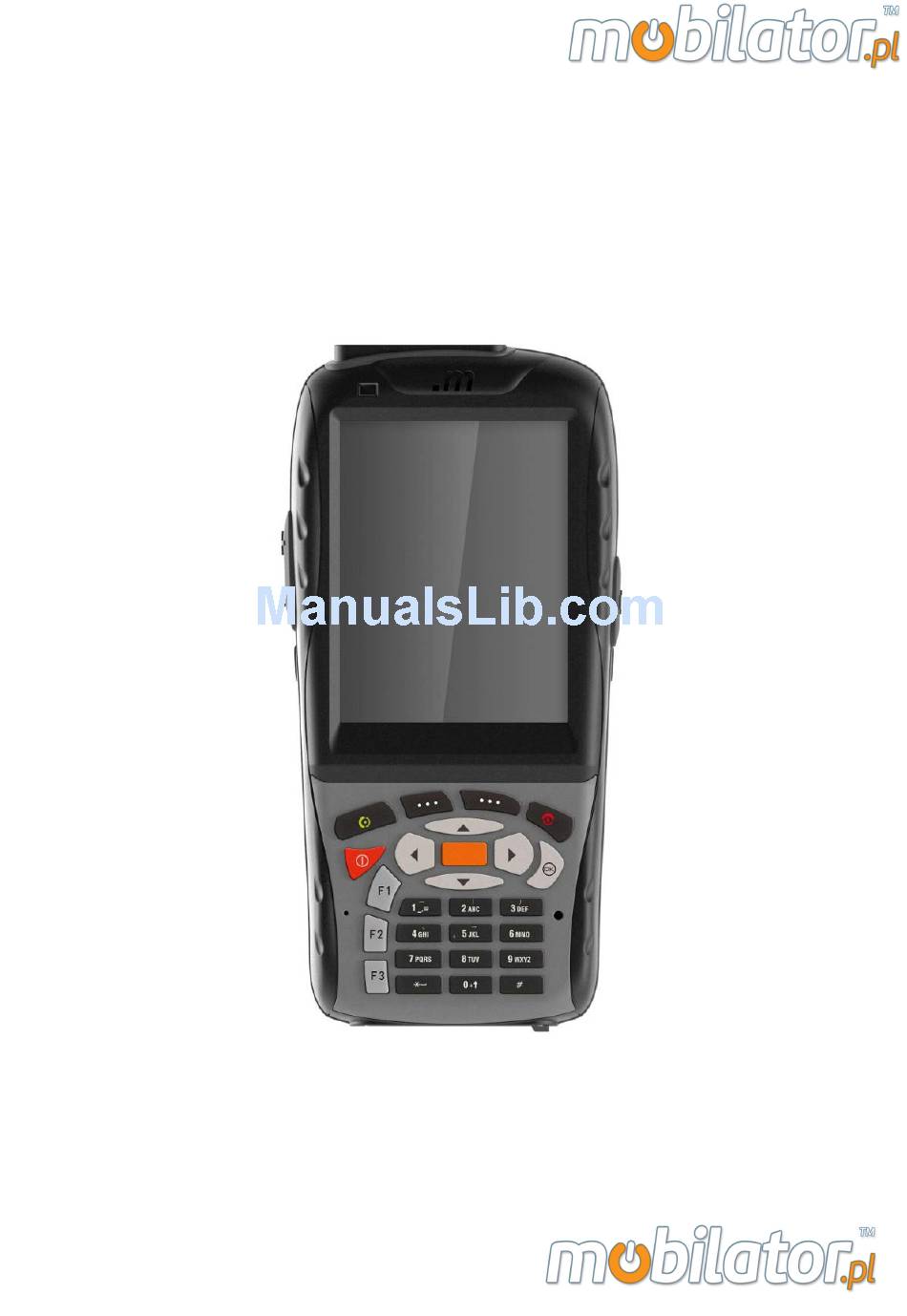

- Page 1 MT02A Quick Guide Android 2.3.7...
- Page 2 MT02A Specifications BASIC INFOMATION PROCESSOR Marvell PXA910 806M 512M FLASH，512M SDRAM STORAGE & MEMORY Android 2.3.7 1.Bluetooth ; 2.WIFI with WLAN 802.11b/g ; CONNECTIVITY 3.GPRS GPS MODULE Ublox The 6th Generation (option) PC CONNECTOR Mini USB; Speed@USB 2.0 SCREEN DISPLAY SIZE 3.5-in;...
- Page 3 1.KEY AND CONNECTORS 4.Barcode (optional) 1 .QVGA Transflective LCD 5.HF RFID 10.PHOTO KEY 6. 5MP AF CAMERA 3.Stylus 17.BACK KEY 18.SCAN KEY 16.MENU KEY 8.RESET KEY 11.MIC 2.VOLUMN KEY 15.Screws use to fix the 12.POWER KEY(Short press will 7.USB jack cover of battery.
-
Page 4: Home Screen
2.HOME SCREEN Home screnn gives you some important information such as missed calls, messages. At the bottom of the screen there are three icons. Press them from left to right you can quick start a call, go in APP SCREEN or start a web browser. -
Page 5: Notification Bar Icons
： 2.1 NOTIFICATION BAR ICONS Network Signal Airplane mode Battery level Low battery level Battery Charging Missed cal Wi-Fi connected Edge mode New text message No SIM Vibrate GPS active No network signal Bluetooth active Warning USB connected... -
Page 6: Operation Instructions
3.OPERATION INSTRUCTIONS 3.1 DIALING In HOME SCREEN, touch the DIAL KEY, you will see the picture below： Favorites Contacts Recent Calls List Virtual Dial key pad Call Backspace... -
Page 7: App Screen
3.2 NOTIFICATION BAR DRAOP-DOWN MENU Touch the NOTIFICATION BAR and drag it down, you will see the picture below: Click to change brightness Click cycle to switch normal ring, vibrate and mute status. Highlight it to enable screen rotation Highlight it to enable data connect Highlight it to enable bluetooth Highlight it to enable WI-FI 3.3 APP SCREEN... -
Page 8: Setting Screen
3.4 SETTING SCREEN In APP SCREEN, click the “Settings” icon will go into SETTING SCREEN. All the settings of the phone are list here, such as WI-FI, LANGUAGE and APPLICATIONS. Slide up & down to see more settings. 3.5 TF CARD BROWSER Make sure the TF CARD is installed well and the USB cable is connected to PC, touch the NOTIFICATION BAR and drag it down you will see the first picture, click the “USB connected”... - Page 9 storage device is connected, you can use it just like a u-disk. 3.6 ENABLE WI-FI into Settings->Wireless & networks->Wi-Fi settings, click to enable ”Wi-Fi”. Then the windows below will list all the Wi-Fi hotspot searched by the phone. Direct click the hotspot you want to connect, if it is encrypted, input the key.
- Page 10 3.7 Focus Scanning 1. make sure of input method is “Android keyboard” , that is in “menue””Settings””Language & keyboard””Keyboard settings” do not check other input method. If you change the input method , the focus scanning won’t ormal use. 2. enter “menue””Settings””Accessibility” , check the “Enable Keyreport Scan”...
- Page 11 3. You can also choose add keyvalue in “Add Keyvalue”, like “without key” , “enter key” , “tab key” , as picture:...
-
Page 12: Rfid(Optional)
Notice： 1. Please set a focus when you use focus scanning. 2. Make sure of “Enable Keyreport Scan ” do not checked when use barcode scan demo . And the orange key becomes scan key only when you choose “change enter to scan” in “Choose Scan key” , otherwise, by default, none, or F1, F2, F3, orange key are the key for the enter 3. -
Page 13: More Information
Please contact the phone manufacturer to get more information. 5.NORMAL MODEL MODEL SPECIFICATION Base product configuration MT02A-S BT/GPS/GPRS/WIFI/3100mA MT02A Standard battery/3.2”LCD/WCDMA/charger MT02A-C5M 5M Auto Focus Base+auto focus camera 5M camera MT02A-NL Base+newland EM1300，support Code128, EAN-13, 1D Infrared... - Page 14 MT02A-N43 Honeywell N4313 Base+Honeywell N4313 1D Laser scanning MT02A-SE45SR Symbol SE4500SR Base+ Symbol SE4500SR scanner...
