Summary of Contents for ELC miniSTORE
- Page 1 512 channel DMX recorder playback Users Manual Software version: 2.0...
- Page 2 The miniSTORE is a smaller and simpler version of the showSTORE, using solid state non volatile memory for storage. The ministore is limited in memory capacity. Therefor a compression is used during recoding. The intended application of the product is to record and playback a single small show with a few fixtures, scanners or moving heads for shop windows, product displays etc.

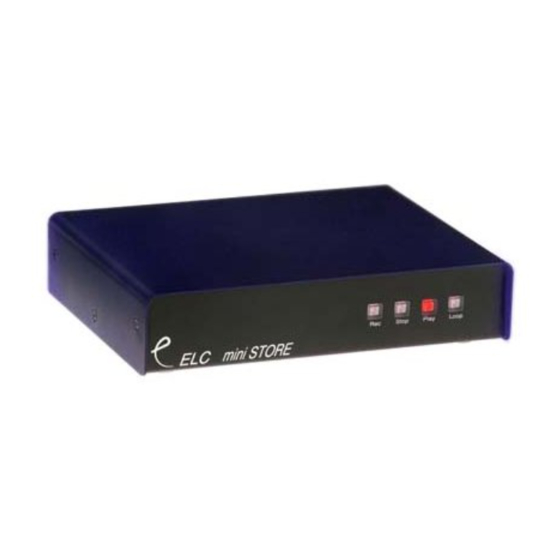

- Page 3 Operation The user interface consists of 4 illuminated momentary pushbuttons, located on the front panel. They are labeled: REC, STOP, PLAY and LOOP. STOP PLAY LOOP Record Puts the device in RECORD READY, waiting for a DMX change to start recording. This state is indicated by blinking of the RECORD led.
- Page 4 To protect the unit from re-recording a file by non qualified people the miniSTORE can be set to a safe mode via the dip switches at the back: 3 to ↓ and 4 to ↑. In this case only the PLAY, LOOP and STOP buttons are available.
-
Page 5: General Information
General Information CE – Product The miniSTORE permits to the CE requirements set-up by the European Community. This can be recognized by this label on the outside of the product. Technical Specifications: DMX INPUT: XLR 5 pin male, optional 3 pin. - Page 6 Designed and manufactured in the Netherlands by: ELC lighting Support contact: support@elclighting.com Distributed by: Worldwide distribution: ANIMA LIGHTING LTD Stand 20 CH-1897 Le Bouveret Switzerland T + Cell 0041 79 2104613 F 0041 86079 2104613 Email: sales@elclighting.com URL: www.elclighting.com...
