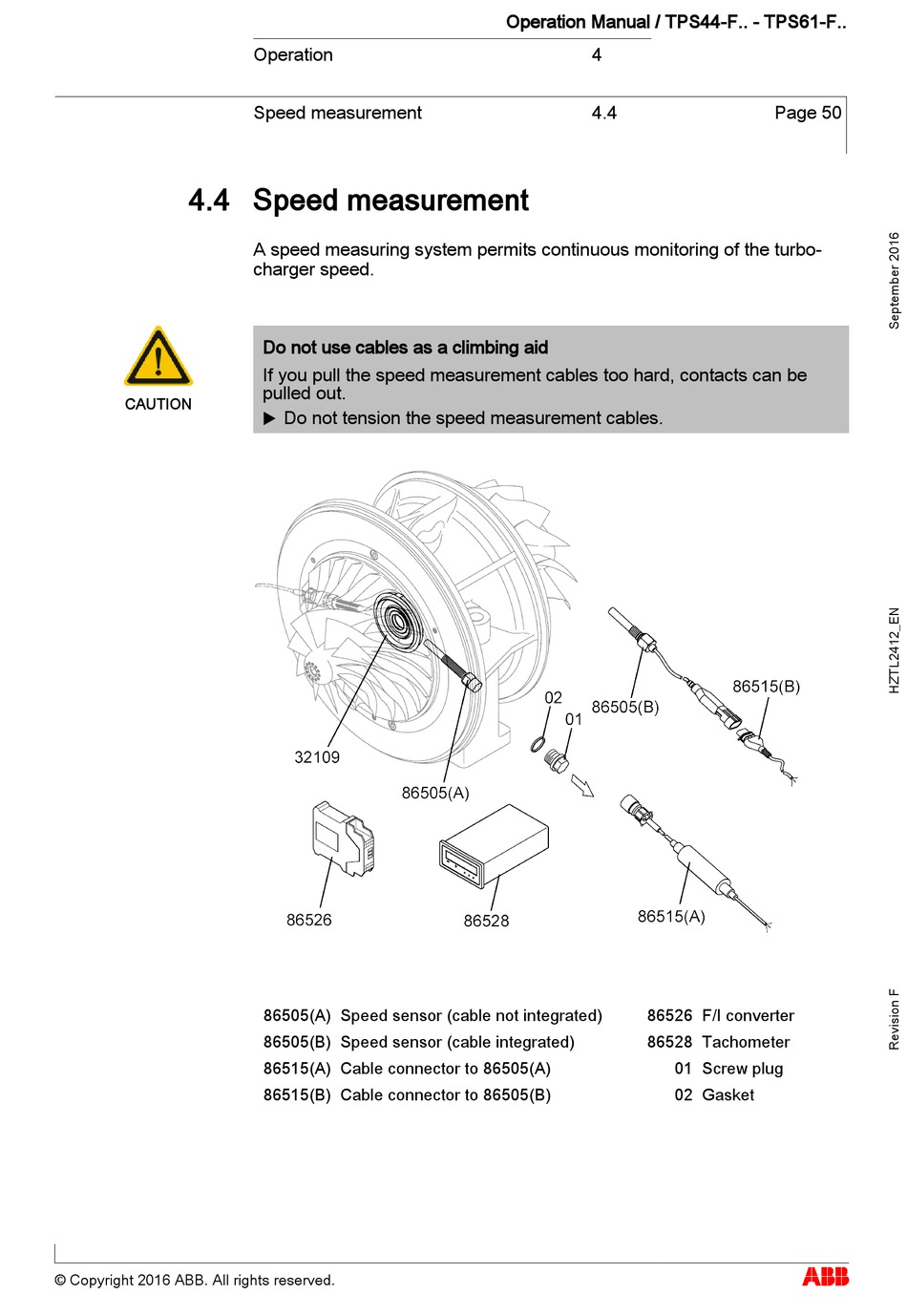

Operation
Speed measurement
Speed measurement
A speed measuring system permits continuous monitoring of the turbo-
charger speed.
Do not use cables as a climbing aid
If you pull the speed measurement cables too hard, contacts can be
pulled out.
Do not tension the speed measurement cables.
86505(A) Speed sensor (cable not integrated)
86505(B) Speed sensor (cable integrated)
86515(A) Cable connector to 86505(A)
86515(B) Cable connector to 86505(B)
Operation Manual / TPS44-F.. - TPS61-F..
4
4.4
86526 F/I converter
86528 Tachometer
01 Screw plug
02 Gasket
Page 50
