Merlin Xtend Manual

Xtend
Introduc�on:
Thank you for purchasing this Merlin Product. Please read the
instruction manual carefully before using the product.
The documentation provided will allow you to fully enjoy all
the features this unit has to o er.
Please save this manual for future reference.
Instruc�ons:

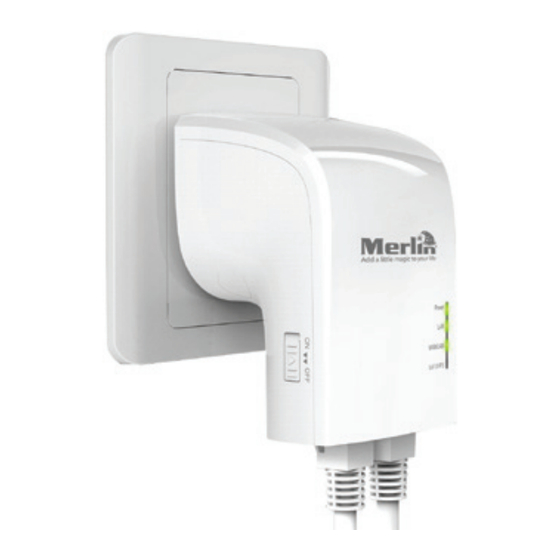

The Xtend is designed to extend the Wi-Fi in your home or
small o ce when a router does not have enough range.
Default Parameters
Default IP: 192.168.10.1
2.4G SSID: Wireless-N
5G/AC SSID: Wireless-AC
Wireless Ley: no

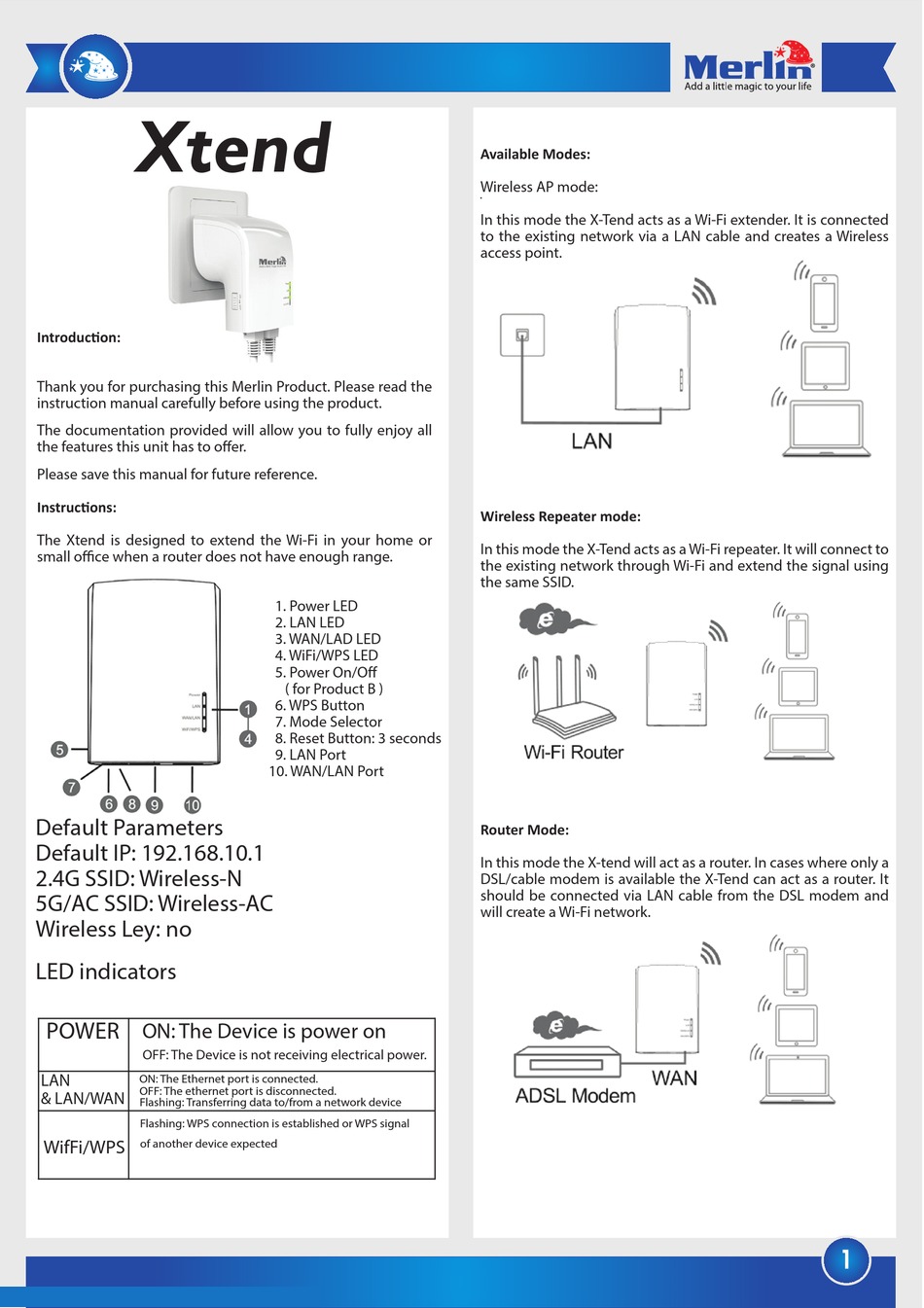

LED indicators

POWER
ON: The Device is power on
OFF: The Device is not receiving electrical power.
LAN
ON: The Ethernet port is connected.
OFF: The ethernet port is disconnected.
& LAN/WAN
Flashing: Transferring data to/from a network device
Flashing: WPS connection is established or WPS signal
WifFi/WPS
of another device expected
1. Power LED
2. LAN LED
3. WAN/LAD LED
4. WiFi/WPS LED
5. Power On/O
( for Product B )
6. WPS Button
7. Mode Selector
8. Reset Button: 3 seconds
9. LAN Port
10. WAN/LAN Port
Available Modes:
Wireless AP mode:
In this mode the X-Tend acts as a Wi-Fi extender. It is connected
to the existing network via a LAN cable and creates a Wireless
access point.
Wireless Repeater mode:
In this mode the X-Tend acts as a Wi-Fi repeater. It will connect to
the existing network through Wi-Fi and extend the signal using
the same SSID.
Router Mode:
In this mode the X-tend will act as a router. In cases where only a
DSL/cable modem is available the X-Tend can act as a router. It
should be connected via LAN cable from the DSL modem and
will create a Wi-Fi network.
1
