Summary of Contents for DAPAudio PSH15T

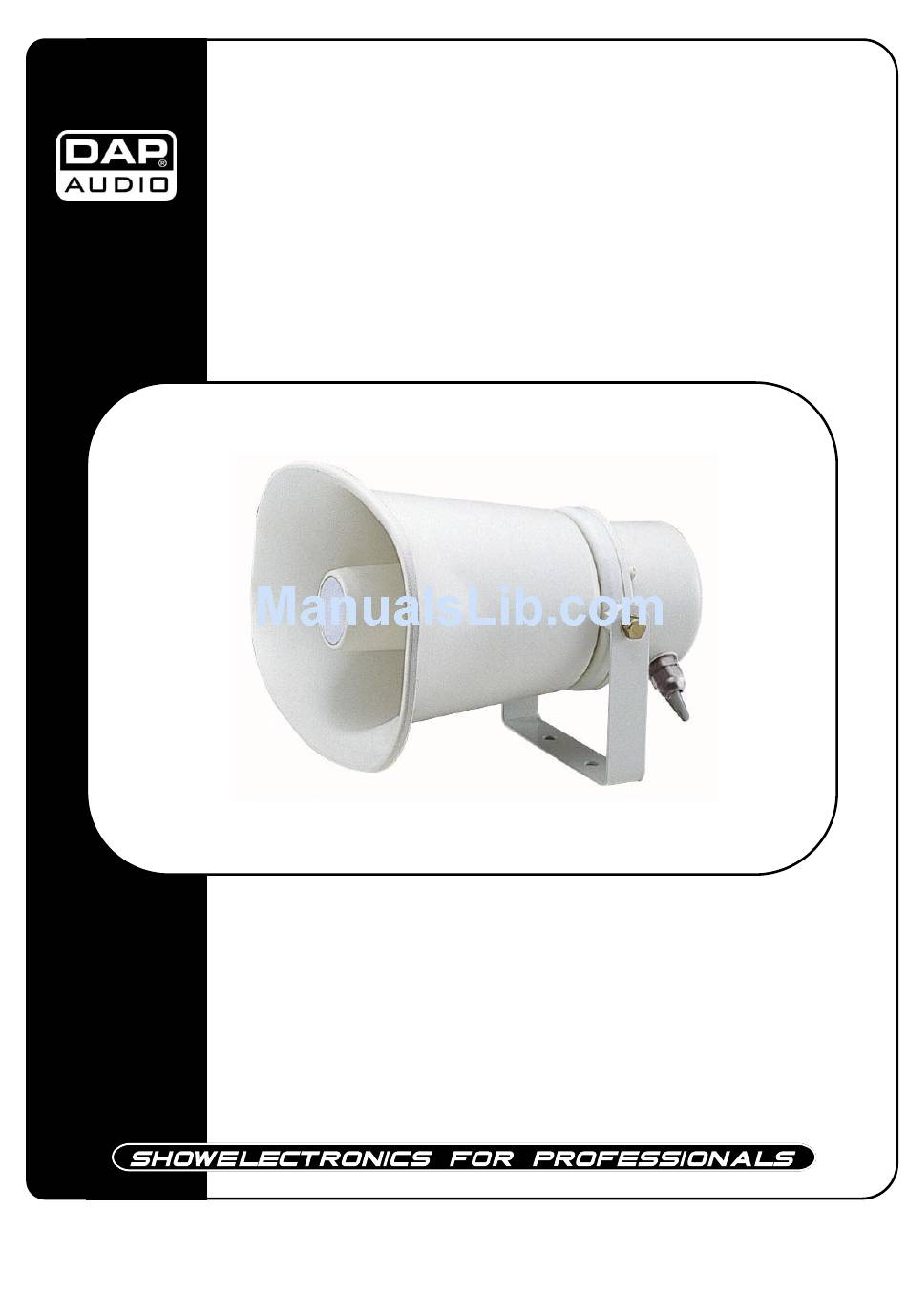

- Page 1 PSH15T ABS Square Horn 15W ORDERCODE D6212...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP PSH15T brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio PSH15T Product Guide ™ Warning..….................…………………………………………. Safety-instructions………………………………………………………….……………………………… Operating Determinations…………………………………………………….………………………… Specifications…………………………………………………………………………………………………. How to connect………………………………………………………………………………………………. Change impedance…………………………………………………………………………………..… Installation……………………………………………………………………………………………………... Set up an operation………………………………………………………………………………………….. Maintenance...................………..………….……...………… Product Specifications..............……………….…….…………….….. -
Page 4: Warning
WARNING SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 5: Operating Determinations
OPERATING DETERMINATIONS If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void. Any other operation may lead to dangers like short-circuit, burns, electric shock, etc. You endanger your own safety and the safety of others! Improper installation can cause serious damage to people and property ! -
Page 6: Specifications
Specifications :... -
Page 8: How To Connect
How To Connect Cable Connections EARTH PLUS SIGNAL MIN SIGNAL Change Impedance... -
Page 9: Installation
Installation Remove all packing materials from the Cable Tester. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. -
Page 10: Product Specifications
Product Specifications PSH15T ABS Square Horn 15W (D6212) Dimensions: 255 x 225 x 160 mm (LxWxH) Weight: 1.32 Kg Rate: IP66 Design and product specifications are subject to change without prior notice... - Page 11 2008 Dap Audio.
