Intended for use with
eCLK-2.5-PoE and eCLK-4-PoE
November 2013
Rev 0.1

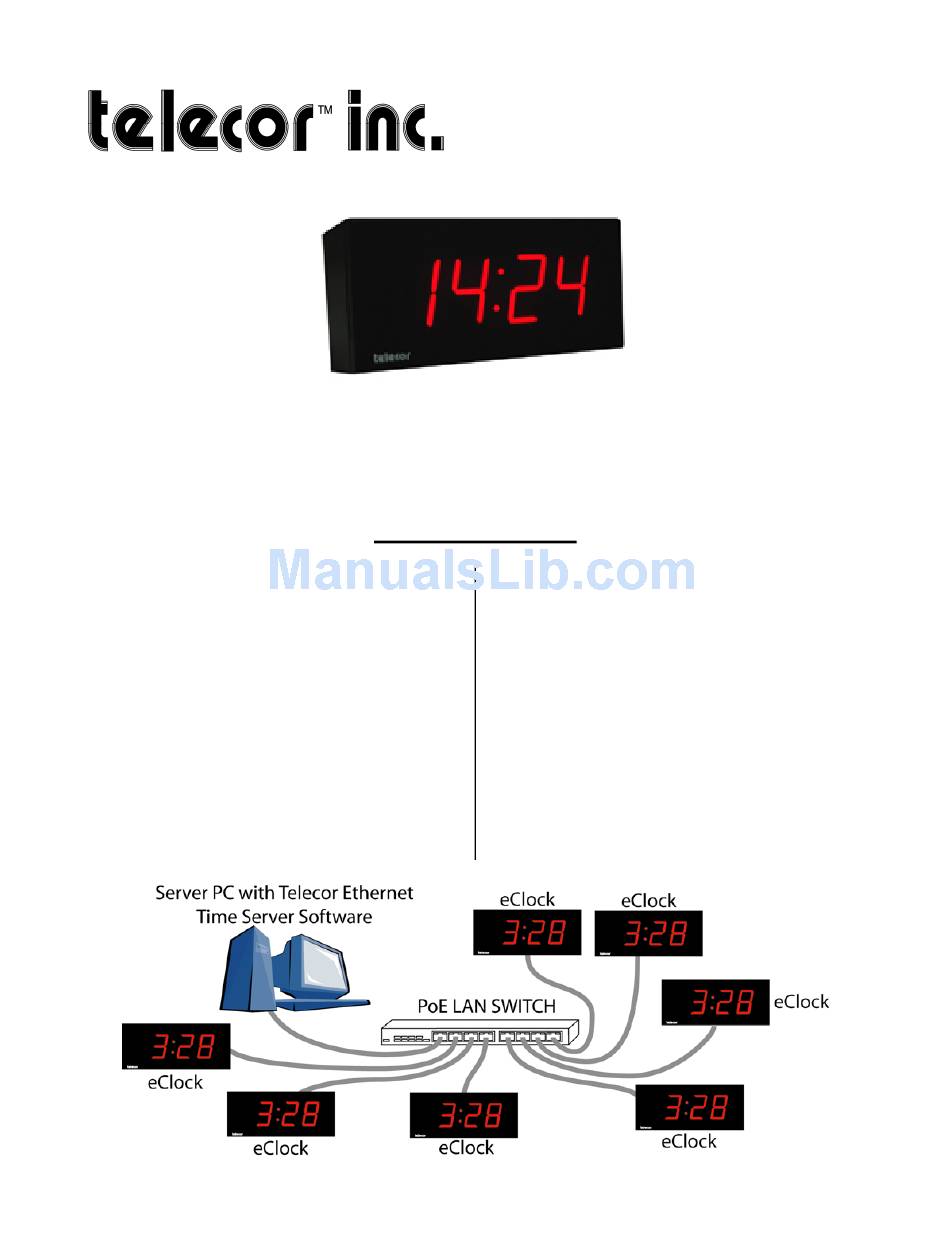

This document provides instructions for the
quick installation and operation of the
Telecor eClock. The eClock uses Power-
over-Ethernet technology to draw both
power and data from a local area network
(LAN). This allows for an eClock network
to be easily and quickly installed in a
facility. The eClock receives its clock data
from a computer on the same network that is
running the Telecor Ethernet Time Server
Software. If an eClock loses its connection
to this computer or the LAN, it will
independently keep the time. The eClock
Introduction
Telecor Inc.
1114 Westport Crescent
Mississauga, Ontario
Canada, L5T 1G1
A. Introduction
will resynchronize with the Time Server
once the connection is re-established.
eClocks are available in 2" and 4" models
This document is organized into the
following topics:
A. Introduction
B. Software Installation
C. eClock Installation
D. Appendix 1 – Backbox Dimensions
E. Appendix 2 – CAT5 Wiring
F. Appendix 3 - Troubleshooting
eClock Quick
Start Guide
Tel: (905) 564-0801
Fax: (905) 564-0806
www.mytelecor.com
1
Advertisement
Table of Contents
Summary of Contents for Telecor eClock
- Page 1 This document is organized into the power and data from a local area network following topics: (LAN). This allows for an eClock network to be easily and quickly installed in a A. Introduction facility. The eClock receives its clock data B.
-
Page 2: Software Installation
Be sure to note the https in the URL. Certificates are automatically updated when the website is visited. Telecor tests the installation of its software products on the U.S. English version of Microsoft operating systems. Other Microsoft Internet Explorer must be used to view the regional or languages versions of Microsoft operating website. - Page 3 A window will appear explaining Read the terms of the License that the installation procedure may Agreement and then click Yes. generate antivirus warnings. Telecor confirms that that it is safe to proceed with the installation despite these antivirus warnings.
- Page 4 Exit. Reboot your computer once with your Telecor Ethernet Time you are ready to do so. Server Software package. Then click Next. Now that the Telecor Ethernet Time Server Software has been successfully installed, you are ready to install the eClocks. Software Installation...
- Page 5 CAT5 Ethernet cables have a maximum effective length of 328 ft (100m). Ensure that the eClock will not be located at a distance from the PoE network switch that requires a cable length greater than 328 ft.
- Page 6 The PoE network switch must be able to support maximum cable raceways or conduits. Refer to Appendix 2 – CAT5 power for each eClock connected to it. Each port on the Wiring. switch must support IEEE 802.3af with a maximum power of 15.4W (12.95W at the eClock).
-
Page 7: Appendix 1 - Backbox Dimensions
D. Appendix 1 – Backbox Dimensions The dimensions of the backboxes available for eClock flush or surface mounting are as follows: Model eClock Display Size Mounting Type Dimensions (inches) 2421-BBF 2.5" Flush 10.75W x 4.5H x 3.75D 2421-BBS 2.5" Surface 10.75W x 4.5H x 3.75D... - Page 8 RJ45 keystone jack for ease of installation without the use of a punch down tool. The final connection between the eClock Ethernet port and the toolless RJ45 keystone jack can then be made with a short (6") store...
-
