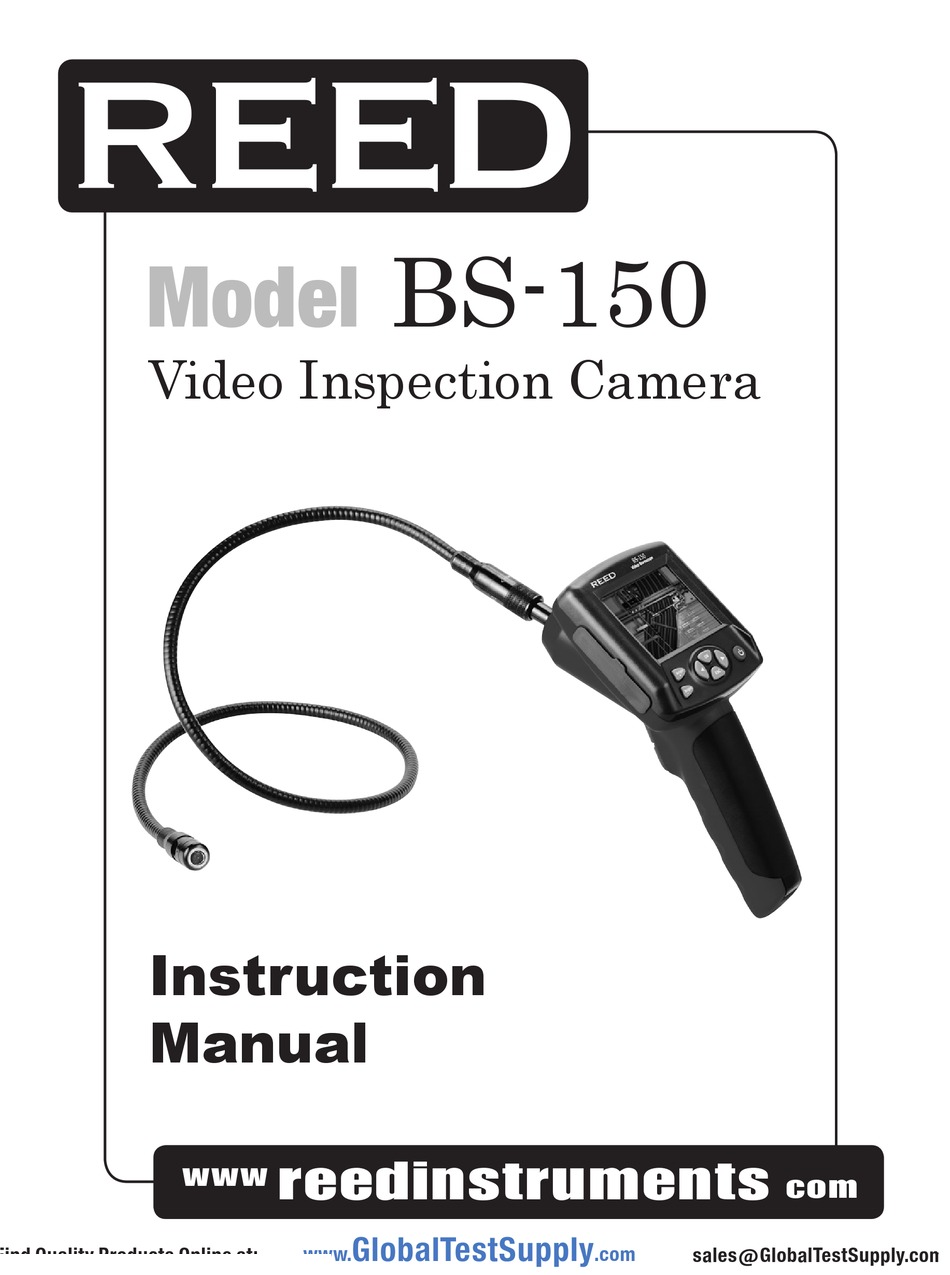

- Page 1 Black BS-150 Model Pantone 534 Blue - 100/80/30/5 Video Inspection Camera Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red For service on this or any other REED product or information on other Yellow - 0/27/100/0 Pantone 123 Yellow REED products, contact REED Instruments at info@reedinstruments.com Blue - 100/80/30/5...
-
Page 3: Specifications
Features • Comfortable pistol grip design and forward facing controls make it easy to detect and diagnose the unreachable • High visibility 3.2” colour TFT LCD monitor with 320 x 240 pixel resolution • 3.2’ flexible gooseneck imager head retains configured shape and is waterproof (IP67) • Gooseneck is expandable up to 30’ (9.144m) with the optional cable extensions •... -
Page 4: Power Supply
Camera Video Format: SD Card Compatibility: Max 8GB Flash Compatibility: Max 8GB Video Working Current: Max 595mA Video Play Current: 230mA Static Current: Max 20UA TV-OUT: PAL/NTSC system Testing Range: 1.96 to 5.9” (5 to 15cm) Data Output: USB data cable and SD card Power Supply: 3.7V, 2000mA, H battery (1860) Dimensions:... - Page 5 Instrument Description 3.2” TFT LCD BRIGHT + Backlight Increase BRIGHT - Backlight Decrease Scroll to Previous Image Battery Cover ESC Exit Scroll to Next Image Power ON/OFF Connector with motherboard socket Gooseneck Camera Camera Motherboard socket USB port and socket charging port TV-OUT and earphone Blue - 100/80/30/5...
-
Page 6: Operating Instructions
Operating Instructions Hold the power button for three seconds to turn the instrument on. Hold the power button for three seconds to turn the instrument off. LED backlight indication Date & Time Image display Remaining memory CMOS Brightness Adjustment When the instrument is in Camera mode, press the BRIGHT+ button to increase the backlight level, press the BRIGHT- button to decrease the backlight level. - Page 7 Taking a Video When the instrument is in Video mode, hold the Video record button for three seconds to begin recording video. You will see a flashing video sym- bol at the top/left of the display. Remaining memory will be displayed at the bottom/left.
- Page 8 Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow REED products, contact REED Instruments at info@reedinstruments.com...
