Summary of Contents for Techlogix TL-4X2-HD

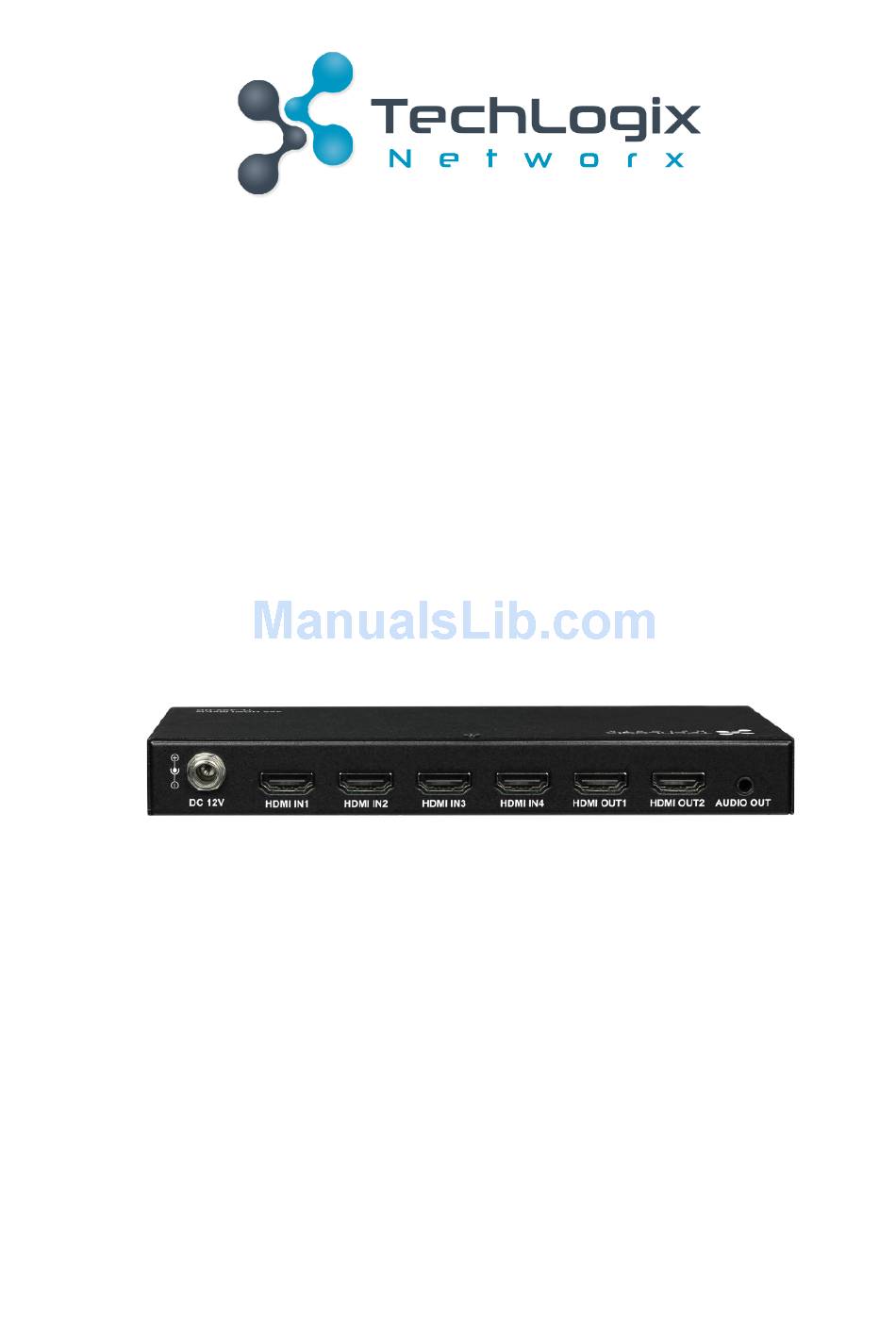

- Page 1 User Manual TL-4X2-HD 4x2 HDMI Matrix All Rights Reserved Version: TL-4X2-HD_160824...
-
Page 2: Fcc Statement
TL-4X2-HD User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only, slight differences may be evident on the real product. This manual is only for operation instruction only, not for any maintenance usage. -
Page 3: Safety Precautions
TL-4X2-HD User Manual SAFETY PRECAUTIONS To insure the best experience from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for... - Page 4 TL-4X2-HD User Manual 1. Introduction TL-4X2-HD is a 4 input, 2 output matrix switcher for HDMI. It reliably distributes four HDMI source signal up to two HDMI displays. The HDCP compliant matrix supports resolutions up to 4K@30Hz and 1080p@60Hz. This matrix features two advanced technologies: automatic EDID...
- Page 5 TL-4X2-HD User Manual 2. Appearance Front Panel Name Description Output 1 LED Indicates the input source for HDMI OUT 1 Select 1 Button Press this button to select input source for HDMI OUT 1 Output 2 LED Indicates the input source for HDMI OUT 2...
-
Page 6: System Connection
HDMI OUT 1~2 Connects to HDMI display devices Audio OUT Connects to audio system & Pictures shown in this manual are for reference only. 3. System Connection The figure below illustrates a typical connection that can be utilized with TL-4X2-HD: www.tlnetworx.com... -
Page 7: Ir Remote Handset
TL-4X2-HD User Manual Step1. Connect a HDMI source (e.g. a Blu-ray DVD) to IN port of TL-4X2-HD; Step2. Connect a HDMI display (e.g. a LCD TV) to OUT port of TL-4X2-HD; Step3. Plug DC 12V 1A power adapter into the power port of TL-4X2-HD. -
Page 8: Edid Management
EDID communication protocol based on the built in EDID information. The source device then produces a signal with the optimum resolution that is compatible with the output device. The TL-4X2-HD Supports EDID copy priority function When connected to one monitor, EDID of the monitor is copied directly to the Ÿ... - Page 9 TL-4X2-HD User Manual General Operating Temperature 0°C to 45°C (32°F to 113 °F) Storage Temperature -20°C to70°C (-4°F to 158 °F) Humidity 10% to 90%, non-condensing Power Supply 12 VDC 1 A Power Consumption 5 W (Maximum) Human-body Model: ESD Protection ±8kV(Air-gap discharge)/...
-
Page 10: Panel Drawing
TL-4X2-HD User Manual 7. Panel Drawing 8. Troubleshooting & Maintenance Problems Causes Solutions Color loss or blurry/ double Poor quality HDMI cable Change HDMI cable. image on HDMI display No power Power up the unit Power LED is off, not... -
Page 11: After Sales Service
TL-4X2-HD User Manual 9. After-sales Service If problems appear when operating the device, please check this user manual for details. 4) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years. Please see warranty page posted on www.tlnetworx.com...
