INSTALLATION INSTRUCTIONS

GL1800 LED FOG LIGHT KIT
2001-2010 PART NO. GL18FGN (NON-AIRBAG)
2006-2010 PART NO. GL18FGA (WITH AIRBAG)
2012+
PART NO. GL18FGA (WITH OR WITHOUT AIRBAG)
L.E.D.
Congratulations on your purchase!
This product is intended for aftermarket use and have been fit checked on stock, non-modified OEM motorcycles. As with any aftermarket products,
there may be some slight modifications required. In some cases, minor modifications such as drill-out of a bigger hole may be necessary on the part
itself or onto your motorcycle. If you are not comfortable with any installation steps, please consult a qualified motorcycle technician to perform the
work. Always allow bulbs to cool down before touching them.
Non U.S. Motorcycles: This kit may not be Plug and Play on non U. S. spec motorcycles.

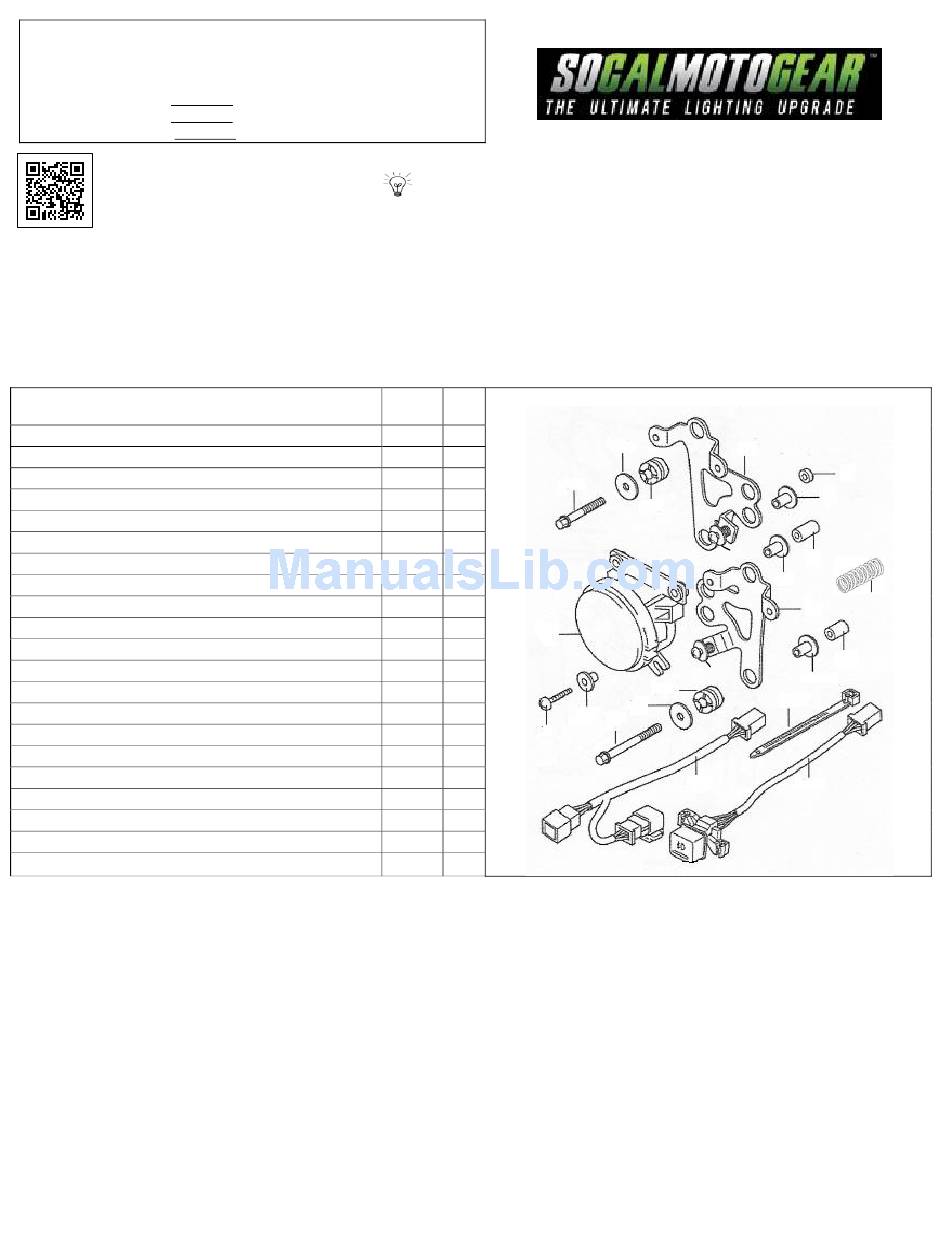

PARTS LIST
LED FOG LIGHT
RIGHT MOUNTING BRACKET
LEFT MOUNTING BRACKET
4MM SPACER
20MM SPACER
16MM SPACER
SMALL FLANGE INSERT
M5 X 18MM SCRW
LARGE FLANGE INSERT
LARGE RUBBER GROMMET W/BRACKET
2MM SPACER
M6 FLANGE (LONG) BOLT
M6 FLANGE (SHORT) BOLT
JUMPER WIRE [non-pictured]
SPRING
M5 X 30MM SCREW [non-pictured]
FLAT WASHER
SMALL RUBBER GROMMET
W/LIGHT BRACKET [non-pictured]
ZIP TIE
ON/OFF SWITCH
FOG LIGHT WIRE HARNESS
INSTALLATION STEPS:
STEP 1. Place motorcycle on center stand.
IMPORTANT – The memory settings of the suspension system, trip meter, clock, and radio will be lost when disconnecting the negative battery cable.
Reset your settings after reconnecting the battery.
STEP 2. Disconnect the negative cable from the battery.
STEP 3. Remove the lower front cowl following the repair manual instructions.
STEP 4. Skip this step if you currently have fog lights installed. Remove your existing lights and proceed to Step 5.
Using cutters, remove the plastic knockouts from the lower front cowl and smooth edges with a Dremel® or file.
STEP 5. Locate the Left (indicated on the back with an "L") and the Right (indicated on the back with an "R") Mounting brackets and set aside.
© Copyright 2015 SoCalMotoGear. All Rights reserved. Ver. 1.5
To see our Installation Video, please visit: www.SoCalMotoGear.com/foglights
LETTER
QTY
A
2
B
1
C
1
(M)
(D)
D
3
E
1
F
2
G
4
H
4
I
6
J
6
(A)
K
6
L
3
M
3
--
1
(H)
N
2
--
2
O
6
--
4
P
1
Q
1
R
1
(K)
(B)
(J)
(O)
(O)
(J)
(K)
(G)
(L)
(R)
(D)
(I)
(E)
(I)
(N)
(C)
(F)
(I)
(P)
(Q)
Page 1 of 4
