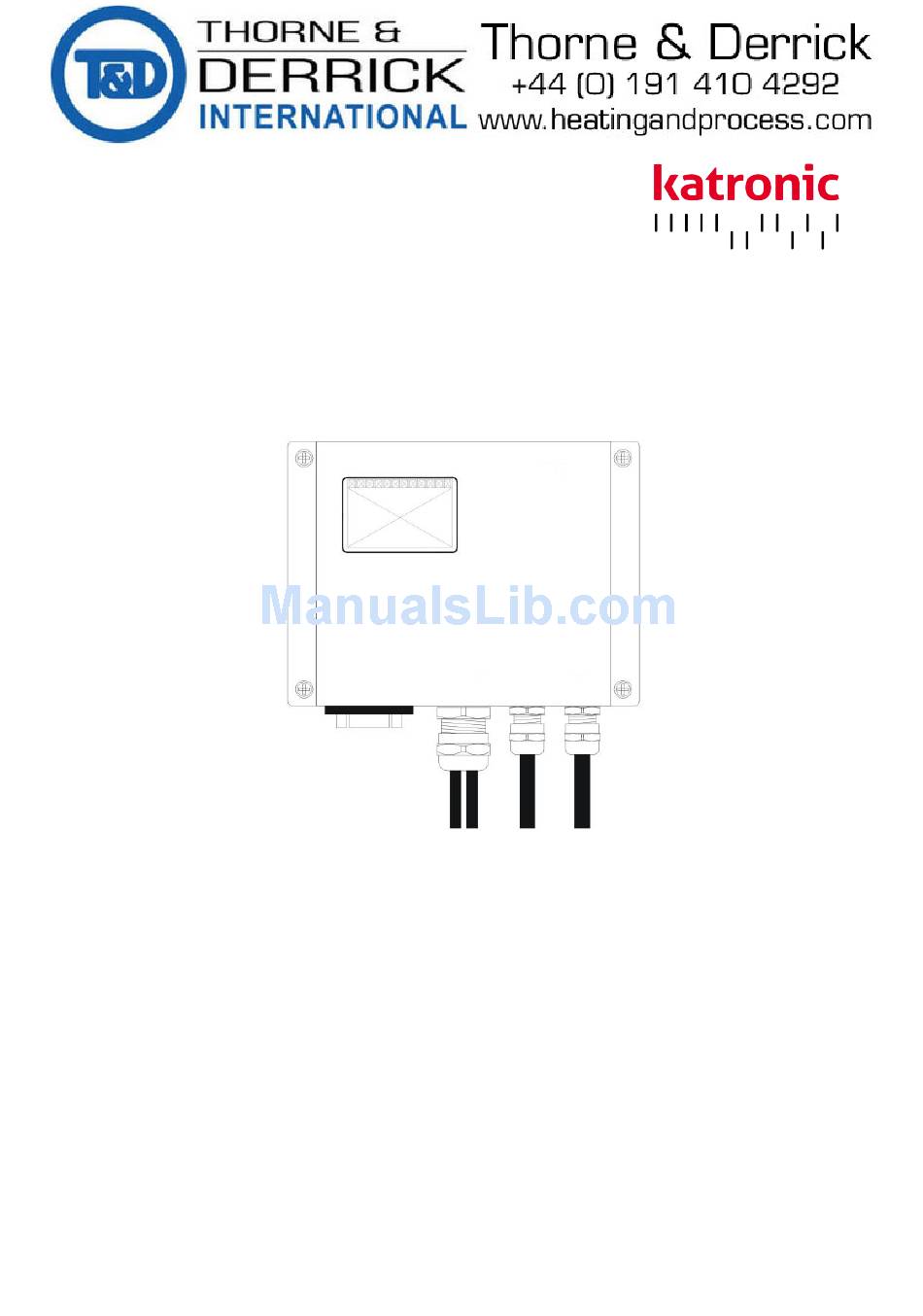

  • Page 1 Operating Instructions KA Tflow 100 Ultrasonic Flow Transmitter...
  • Page 2 Katronic Technologies Ltd. Earls Court 13 Warwick Street Earlsdon, Coventry West Midlands CV5 6ET United Kingdom Tel. +44 (0)2476 714111 Fax +44 (0)2476 715446 Internet www.katronic.co.uk E-mail mail@katronic.co.uk Operating Instructions KATflow 100 Version V11EN160420 Copyright © 2016 All rights reserved.

  • Page 3: Table Of Contents

    KATflow 100 Table of Contents KATflow 100 Operating Instructions Table of Contents Page 1 Safety instructions, legal requirements, warranty, return policy....5 1.1 Symbols used in these operating instructions..........5 1.2 Safety instructions..................5 1.3 Warranty...................... 6 1.4 Return policy....................6 1.5 Legislative requirements................6 2 Introduction......................
  • Page 4 KATflow 100 Table of Contents 5.4.3 HART compatible output...............34 5.4.4 Analogue current output ..............35 5.4.4 Analogue voltage output ..............35 5.4.4 Analogue frequency output..............35 5.4.5 Digital Open-Collector output..............36 5.4.6 Digital relay output................36 5.5 Input configuration..................36 5.5.1 PT100 inputs..................36 5.5.2 Analogue current input 0/4 ... 20 mA.............37 5.6 Heat quantity measurement (HQM).............37...

  • Page 5: Safety Instructions, Legal Requirements,Warranty, Return Policy

    KATflow 100 1 Safety instructions, legal requirements,warranty, return policy 1 Safety instructions, legal requirements,warranty, return policy 1.1 Symbols used in these operating instructions Danger This symbol represents an immediate hazardous situation which could result in serious injury, death or damage to the equipment. Where this symbol is shown, do not use the equipment further unless you have fully understood the nature of the hazard and have taken the required precautions.

  • Page 6: Warranty

    KATflow 100 1 Safety instructions, legal requirements,warranty, return policy 1.3 Warranty Any product purchased from KATRONIC is warranted in accordance with ● the relevant product documentation and as specified in the sales contract provided it has been used for the purpose for which it has been designed and operated as outlined in these operating instructions.

  • Page 7: Introduction

    KATflow 100 2 Introduction 2 Introduction The KATflow 100 is an ultrasonic flow transmitter employing clamp-on sensors for Clamp-on trans- the measurement of liquids in full, enclosed pipes. Flow measurements can be un- it-time flow transmit- dertaken without interruption of the process or interference with the integrity of the pipeline.

  • Page 8: Installation

    ● 3.1.3 Identification of components The following items are typically supplied (please refer to your delivery note for a detailed description): KATflow 100 ultrasonic flow transmitter ● Clamp-on sensors (one pair for single channel operation, two pairs for dual ●...

  • Page 9: Clamp-On Sensor Installation

    KATflow 100 3 Installation 3.2 Clamp-on sensor installation The correct selection of the sensor location is crucial for achieving reliable meas- urements and high accuracy. Measurement must take place on a pipe in which sound can propagate (see Acoustic propagation) and in which a rotationally sym- metrical flow profile is fully developed (see Straight pipe lengths).
  • Page 10 KATflow 100 3 Installation For a free inlet or outlet pipe section: Select the measuring point at a location where the pipe cannot run empty. Correct Disadvantageous Correct Disadvantageous For a vertical pipe: Select the measuring point at a location where the liquid flows upward to ensure that the pipe is completely filled.
  • Page 11 KATflow 100 3 Installation Disturbance source: 2 x 90°-elbows in different planes Inlet Outlet L ≥ 40 D L ≥ 5 D Disturbance source: T-section Inlet Outlet L ≥ 50 D L ≥ 10 D Disturbance source: diffuser Inlet Outlet L ≥...

  • Page 12: Pipe Preparation

    KATflow 100 3 Installation 3.4 Pipe preparation Clean dirt and dust from around the area of the pipework where the ● sensors are to be placed. Remove loose paint and rust with a wire brush or file. ● Firmly bonded paint does not necessarily need to be removed provided the flow- meter diagnostics indicate sufficient signal strength.

  • Page 13: Flowmeter Installation

    KATflow 100 3 Installation 3.6 Flowmeter installation 3.6.1 Wall mounting The KATflow 100 is a wall mounted device and can be installed using suitable screws and wall plugs according to the following drawings. Flowmeter outline di- mensions Drawing 1: Outline dimensions KATflow 100 ultrasonic flowmeter...
  • Page 14 KATflow 100 3 Installation Drilling aid for wall mounting Drawing 2: Drilling aid for wall mounting Make sure that the ambient temperature is within the -10 ... 60 °C operating tem- perature range specified for the flowmeter unit.

  • Page 15: Electrical Connections

    Please note that in order to supply the unit with MAINS POWER, the equipment Electrical wiring must be protected by suitably sized switches and circuit breakers. 10 W 100 ... 240 V AC, 50/60 Hz 9 ... 36 V DC 10 W Drawing 3: Electrical connection diagram for the KATflow 100 flow transmitter...

  • Page 16: Clamp-On Sensor Mounting

    KATflow 100 3 Installation 3.7 Clamp-on sensor mounting Before the sensors can be mounted Sensor mounting the installation location should have been determined, ● a sensor mounting method should be chosen, ● the flowmeter must be mechanically and electrically installed, ●...

  • Page 17: Correct Positioning Of The Sensors

    KATflow 100 3 Installation 3.7.3 Correct positioning of the sensors Correct sensor position Illustration 6: Correct positioning of the sensors Always mount the transducer pair so that the free front edges of the sensors face each other. There is a different engraving on the top of each transducer. The transducers are mounted correctly if the engravings on the two transducers form an arrow.
  • Page 18 KATflow 100 3 Installation Pull the tension strap and guide the free end through the clamp so that the ● clamp hooks engage. Slightly tighten the screw on the clamp. Mount the second sensor in the same way. ● Press the sensors firmly onto the pipe. There should be no air pockets ●...

  • Page 19: Operation

    KATflow 100 4 Operation 4 Operation 4.1 Switching On/Off The flowmeter is switched on by connecting the power supply to the instrument. Switching On/Off Disconnecting the external supply switches off the flowmeter. 4.2 Keypad and display (where specified) KF100 Programmer...
  • Page 20 KATflow 100 4 Operation Character entry: No function Character entry: No function < Character entry: No function > Character entry: No function Character entry: No function Character entry: No function Character entry: No function Move menu/list selection item Character backspace clear...

  • Page 21: Display Functions

    KATflow 100 4 Operation Abort entry without saving ESCape menu item Switches the instrument OFF if pressed for more than 2 s Confirm entry with saving ENTER menu item Switches the instrument ON if pressed for more than 2 s 4.2.2 Keypad key functions (internal keypad where specified)

  • Page 22: Quick Setup Wizard

    KATflow 100 4 Operation Not used Backlight switched on Backlight switched off I/O processor error (internal screen only) I/O processor functioning correctly Without strike-through: Speaker on With strike-through: Speaker off Poor sensor coupling, low SNR (internal screen only) Sensor coupling OK...
  • Page 23 KATflow 100 4 Operation (Programmer) Use cursor keys to select Setup Wizard. Confirm by pressing <ENTER>. Table 5: Quick setup wizard If sensors are recognised, the serial number will be shown. If not recognised or not connec- ted, they may be selected from a list.
  • Page 24 KATflow 100 4 Operation Enter inner pipe diameter using alphanumeric keys and confirm by pressing <ENTER>. The value that appears here will have been calculted from the entered Outeside Diameter (or Cicumference) and Wall thickness. Enter- ing a new value here will recalculate the Out- side Diameter.

  • Page 25: Measurements

    KATflow 100 4 Operation Use cursor keys to select Sensor Positioning. Confirm by pressing <ENTER>. (Screen) Use cursor keys to select Start Measurement. Confirm by pressing <ENTER>. Sensor positioning screen: Mount transducers with suggested spacing and use middle bar for fine adjustment of position (central position is desired).

  • Page 26: Main Process Value (Pv) Display

    KATflow 100 4 Operation 4.4 Measurements 4.4.1 Main process value (PV) – (screen only) Measurement is started using the Quick Setup Wizard. Once all the parameters are Measurement programmed, any subsequent power-on sequences will immediately give the main screens PV as a display (where specified) and/or as an output as appropriate.

  • Page 27: Totalisers

    KATflow 100 4 Operation 4.4.3 Totalisers – (screen and programmer only) The totaliser displays will only be shown when the totalisers are activated. Totalisers Display screen Operation The flow totaliser can be started or reset by se- lecting “Totalizer” from the main menu.

  • Page 28: Commissioning

    KATflow 100 5 Commissioning 5 Commissioning 5.1 Menu structure – (screen, programmer and software) Alternative specifications are shown in light grey. Menu structure Main menu Menu level 1 Menu level 2 Description/settings Quick Start Setup Wizard Sensor type Indication of sensor type and serial number if automatically detected, otherwise select from list ↑↓...
  • Page 29 KATflow 100 5 Commissioning Liner Material Select from list ↑↓ None, Epoxy, Rubber, PVDF, PP, Glass, Cement, User (liner c-speed) Liner c-speed Only if lining material selected 600 ... 6553.0 m/s Liner thickness Only if lining material selected 1.0 ... 99.0 mm Passes Select from list ↑↓...
  • Page 30 KATflow 100 5 Commissioning Kinematic 0.001 ... 30000 mm (viscosity) Density 100 ... 2000 kg/m C-speed 800 ... 3500 m/s Temperature -30 ... 300 °C Lining Material Select from material list ↑↓ Thickness 1 ... 99 mm C-speed 600 ... 6553.0 m/s...
  • Page 31 KATflow 100 5 Commissioning Frequency out Source Channel 1 System Units Select from list ↑↓ Min Value Min. process variable (PV) value that corres- ponds to minimum frequency Max Value Max. process variable (PV) value that corres- ponds to maximum frequency...
  • Page 32 KATflow 100 5 Commissioning Max F Cut ± Maximum flow velocity cut off 0 ... 30 m/s Corrected Apply flow velocity profile correction Yes, No PV Offset Calibration process variable zero offset -30 ... 30 units PV Scaling Calibration process variable gradient scaling 0 ...

  • Page 33: Diagnostics

    KATflow 100 5 Commissioning Sig dB (signal), noise dB, SNR, C m/s (sound speed), CU (housing temperature) Tin, Tout (inlet and outlet temperature) Low memory Logger space remaining at low memory alarm Log Wrap Saves "selected" items as a continuous stream...

  • Page 34: Output Configuration

    KATflow 100 5 Commissioning 5.4 Output configuration The assignment of output slots is detected by the flowmeter, and will be as appears in the table in the "In/Output" menu - first line = Slot 1, second line = Slot 2 etc.

  • Page 35: Analogue Current Output

    KATflow 100 5 Commissioning 5.4.4 Analogue current output 0/4 ... 20 mA Analogue outputs The analogue current outputs operate in a 4 ... 20 mA or 0 ... 20 mA span. Current outputs may be assigned to process values in the “mode” section of the output menu.

  • Page 36: Digital Open-Collector Output

    KATflow 100 5 Commissioning 5.4.7 Digital open collector output Digital outputs Open-Collector outputs may be assigned to process values in the “mode” section of the output menu. The outputs are configured using the menu structure. The totaliser function is enabled and controlled using the menu structure Wiring Galvanically isolated from main electronics and from other I/O's.

  • Page 37: Analogue Current Input 0/4

    KATflow 100 5 Commissioning 5.5.2 Analogue current input 0/4 ... 20 mA Wiring Electrical Active (top) or passive (bottom) variants Measuring range active = 0 ... 20 mA at 30 V characterist- Measuring range passive = 4 ... 20 mA Accuracy = 0.1 % of measured value...

  • Page 38: Scope Function

    KATflow 100 5 Commissioning 5.8 Scope function (where provided) Katronic flowmeters have an additional scope function which shows a representa- tion of the pulse received by the sensors. In addition to displaying the received pulse, this screen lists the following data (from...

  • Page 39: Maintenance

    KATflow 100 6 Maintenance 6 Maintenance KATflow flowmeters are maintenance free concerning the flow measurement func- tions. Within the scope of periodic inspections, regular inspection for signs of dam - age or corrosion is recommended for the transducers, the junction box if installed, and the flowmeter housing.

  • Page 40: Troubleshooting

    KATflow 100 7 Troubleshooting 7 Troubleshooting Should there be the need to call customer service, please let us know the following details: Model code ● Serial number ● SW, HW revision ● Error log list ● Possible error messages may include the following:...
  • Page 41 KATflow 100 7 Troubleshooting COMM HS1 ERR Hardware Internal communication Power on/off, otherwise error call customer support COMM READ AVE Hardware Internal communication Power on/off, otherwise error call customer support COMM READ RAW Hardware Internal communication Power on/off, otherwise error...

  • Page 42: Technical Data

    KATflow 100 8 Technical data 8 Technical data Sound Speed* Shear Wave (at 25 ºC) Material ft/s Steel, 1% Carbon, hardened 3,150 10,335 Carbon Steel 3,230 10,598 Mild Steel 3,235 10,614 Steel, 1% Carbon 3,220 10,565 302 Stainless Steel 3,120...
  • Page 43 KATflow 100 8 Technical data All data given at 25 ºC (77 ºF) unless otherwise stated Change Viscosity Sound Speed v/ºC (Kinematic) Chemical Specific Substance ft/s m/s/ºC mm X10-6 ft Formula Gravity Acetic anhydride (CH3CO)2O 1.082 (20 ºC) 1,180 3,871.4 0.769...
  • Page 44 KATflow 100 8 Technical data 1,328.7 Methane 0.162 (-89 ºC) 17.5 (-89 ºC) (-128 ºF) Methanol CH4O 0.791 (20 ºC) 1,076 3,530.2 0.695 7.478 Methyl acetate C3H6O2 0.934 1,211 3,973.1 0.407 4.379 Methyl alcohol CH4O 0.791 1,076 3,530.2 0.695 7.478...
  • Page 45 KATflow 100 8 Technical data 1,170 3,838.6 Tetrachloroethane C2H2Cl4 1553 (20 ºC) 1.19 12.804 (20 ºC) (68 ºF) Tetrachloro-ethene C2Cl4 1.632 1,036 3,399 Tetrachloro-Methane CCl4 1.595 (20 ºC) 3,038.1 0.607 6.531 Tetrafluoro-methane 875.24 (- 2,871.5 1.75 (-150 ºC) 6.61 (Freon 14) 150 ºC)
  • Page 46 KATflow 100 8 Technical data 95.0 1519 4984 96.8 1521 4984 98.6 1523 4990 100.4 1525 4997 102.2 1527 5010 104.0 1528 5013 105.8 1530 5020 107.6 1532 5026 109.4 1534 5033 111.2 1535 5036 113.0 1536 5040 114.8 1538 5046 116.6...
  • Page 47 KATflow 100 8 Technical data 192.2 1551 5089 194.0 1550 5086 195.8 1549 5082 197.6 1549 5082 199.4 1548 5079 201.2 1547 5076 203.0 1547 5076 204.8 1546 5072 206.6 1545 5069 208.4 1544 5066 210.2 1543 5063 212.0 1543 5063 220.0...

  • Page 48: Specification

    KATflow 100 9 Specification 9 Specification General Measuring principle : Ultrasonic time difference correlation principle Flow velocity range : 0.01 ... 25 m/s Resolution : 0.25 mm/s Repeatibility : 0.15 % of measured value ± 0.015 m/s Accuracy : ± 1 ... 3 % of measured value depending on application, ±...
  • Page 49 KATflow 100 9 Specification Communication Serial interface : RS 232, RS 485, Modbus RTU, HART (optional) Data : Measured data, parameter set and configuration, KATdata+ Software Functionality : Downloading of measured values/parameter sets, graphical presentation, list format, export to third party software, on-line transfer of measured data Operating systems : Windows 2000, NT, XP, Vista, 7, 8, 10;...

  • Page 50: Index

    KATflow 100 10 Index 10 Index Acoustic coupling gel Outer Diameter Analogue current input Output Configuration Analogue current output Output settings Analogue frequency output Packaging Analogue voltage output Passes Certificate of Conformity Pipe material selection Commissioning Pipe parameters Customer Return Note (CRN)

  • Page 51: Appendix A

    KATflow 100 Appendix A Appendix A Certificate of Conformity...

  • Page 52: Appendix B

    KATflow 100 Appendix B Appendix B Customer Return Note (CRN) Company Address Name Tel. No. E-mail Instrument model Katronic contract no. (if known) Serial number Sensor type(s) Sensor serial number(s) The enclosed instrument has been used in the following environment (please √):...
