Summary of Contents for TMB ProPlex Digital RGB Drive

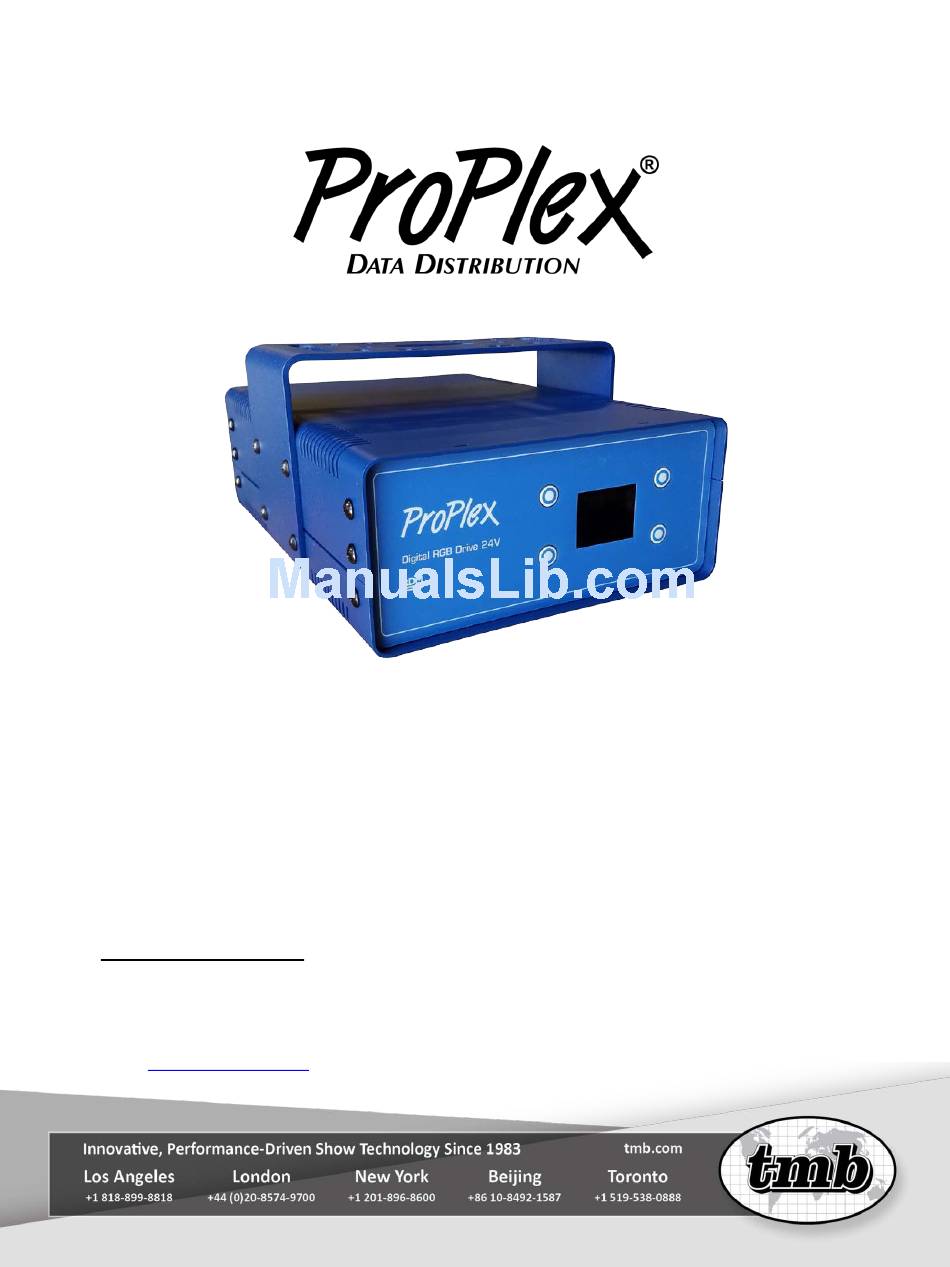

- Page 1 ProPlex Digital RGB Drive PortableMount TMB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 e-mail: techsupport@tmb.com...
-
Page 2: Table Of Contents
ABLE OF ONTENTS ........................3 NTRODUCTION ............................3 RODUCT VERVIEW ..........................3 NPACKING NSTRUCTIONS ..........................3 OWER EQUIREMENTS ............................ 4 AFETY NSTRUCTIONS ............................4 EPLACEMENT 24V ..........................5 ANEL RONT ................................6 INKING LED S ............................6 TRIP ........................7 PERATION ........................ -
Page 3: Introduction
1. I NTRODUCTION RODUCT VERVIEW The ProPlex Digital RGB Drive is a 24V DMX controller for Floppy Flex Digital LED neon. Features include: • Rugged, tour-ready ProPlex “Blue Box” PortableMount chassis. Packaged for extreme Conditions. Shock-mounted circuitry. Advanced thermal management •... -
Page 4: Safety Instructions
AFETY NSTRUCTIONS Please read these instructions carefully. This user manual contains important information about the installation, usage and maintenance of this product. • Keep this user manual for future reference. If unit is sold to another user, make sure they also receive this instruction booklet. -
Page 5: Panel Front /Rear 24V
RGB D ANEL RONT IGITAL RIVE RGB D ANEL IGITAL RIVE EATURES 1 LED strip output for use with Digital FloppyFlex 24V DC output Maximum 180w total power Power input- 90-240VAC, 50/60Hz... -
Page 6: Linking
INKING 1) Connect the male 5-pin XLR connector of the DMX cable to the output (female) 5-pin XLR connector of the DMX console. 2) From the DMX console, connect the female 5-pin XLR connector of the DMX cable to the input connector (male) of the ProPlex RGB Drive. -
Page 7: Operation
2. O PERATION AVIGATING THE ONTROL ANEL Access control panel functions using the four control panel buttons surrounding the LCD display. Press and hold the <MENU> button to scroll through the top level menu items. This is the top of the menu map. -
Page 8: Main Menu Functions
– Change fixture parameters Config During normal operation of the ProPlex Digital RGB Drive, the LCD of the control panel displays the current DMX address. If the unit is not receiving a DMX signal, the address blinks in RED color. -
Page 9: Dmx Address
– DMX A To set the required DMX address, you must: DDRESS 1) Press and hold <MENU> button to open the Main Menu. 2) Use <UP> and <DOWN> buttons to find the ”DMX Address” submenu. 3) Press <Select> button to access the DMX address value change submenu. 4) Use <UP>... -
Page 10: Control
– The Digital RGB Drive LED strip controller has one default 3-channel controlling ONTROL mode which can’t be changed. Pixel numb. Channel Value Function 000 ↔ 255 RED intensity 0% - 100% 000 ↔ 255 GREEN intensity 0% - 100% 000 ↔... - Page 11 4) To change values of preset mode, you use the <+> and < - > buttons. After selecting the desired value of the first color (RED), press the <SELECT> button to edit the next value in the list (BLUE). When all values have been set as desired, select "Save". It will flash “Saved”. 5) Now the device should have a LED output.
-
Page 12: Demo
in this menu, select the following demo scenes: – Red color test Demo 1- Green color test Demo 2- Blue color test Demo 3- White color test Demo 4- Yellow color test Demo 5- Cyan color test Demo 6- Magenta color test Demo 7- RGBW Full test Demo 8-... -
Page 13: Config
CONFIG – Under this menu, change the devices configuration settings. 1) Press and hold <MENU> button to open the Main Menu. 2) Use <UP> and <DOWN> buttons to find the Demo submenu and press select button. 3) Another submenu will open: 4) Using <UP>... -
Page 14: Dmx Hold
- Set the RGB Drive’s reaction to lost DMX signal. HOLD HOLD – Holds the last received DMX values when DMX signal is lost OFF – Doesn’t hold the last received DMX values when DMX signal is lost; stops light output. Use <UP>... -
Page 15: Installation
3. I NSTALLATION OUNTING IGGING Orientation – ProPlex Mini units may be mounted in any position, using the standard yoke. Always make sure there is adequate room for ventilation. Rigging – Always consult a certified rigging specialist before suspending any device overhead. - Page 16 3) Caution: Mounting ProPlex RGB Drive. RGB Drive units require adequate airflow. When installing multiple units, they must be mounted on alternating sides of the rack, so one does NOT reside directly above another, with at least one-half 1U space between each assembly, per below illustration.
-
Page 17: Appendix
(2) years from the date of original sale by TMB. TMB’s warranty shall be restricted to the repair or replacement of any part that proves to be defective and for which a claim is submitted to TMB before the expiration of the applicable warranty periods. -
Page 18: Return Procedure
Please send returned merchandise prepaid and in the original packing. Freight call tags will not be issued for shipping the product to TMB, but TMB will pay the freight for return to the customer. Clearly label package with a Return Merchandise Authorization Number (RMA #). Products returned without an RMA # will delay service. -
Page 19: Technical Specifications
– D RGB D ECHNICAL PECIFICATIONS IGITAL RIVE WEIGHT & DIMENSIONS ( YOKE ......................8 / 202 IDTH ......................10.7 / 272 EPTH ......................7.3 / 186 EIGHT ...................... 8.75 / 3.98 EIGHT POWER AC P ..................90-240VAC, 50-60Hz OWER DC P ................
