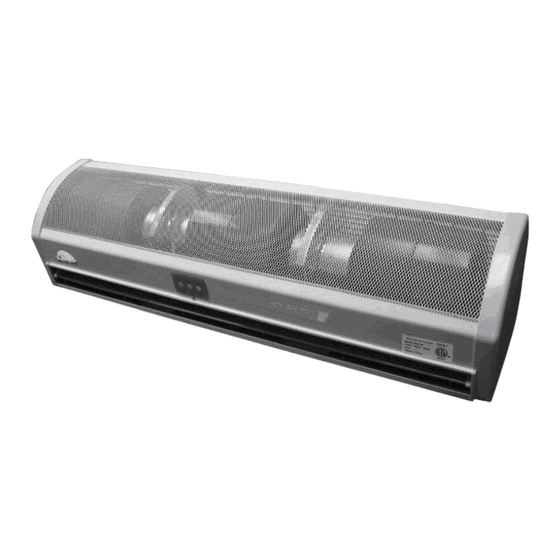

Summary of Contents for Yoshimasa YMAC36

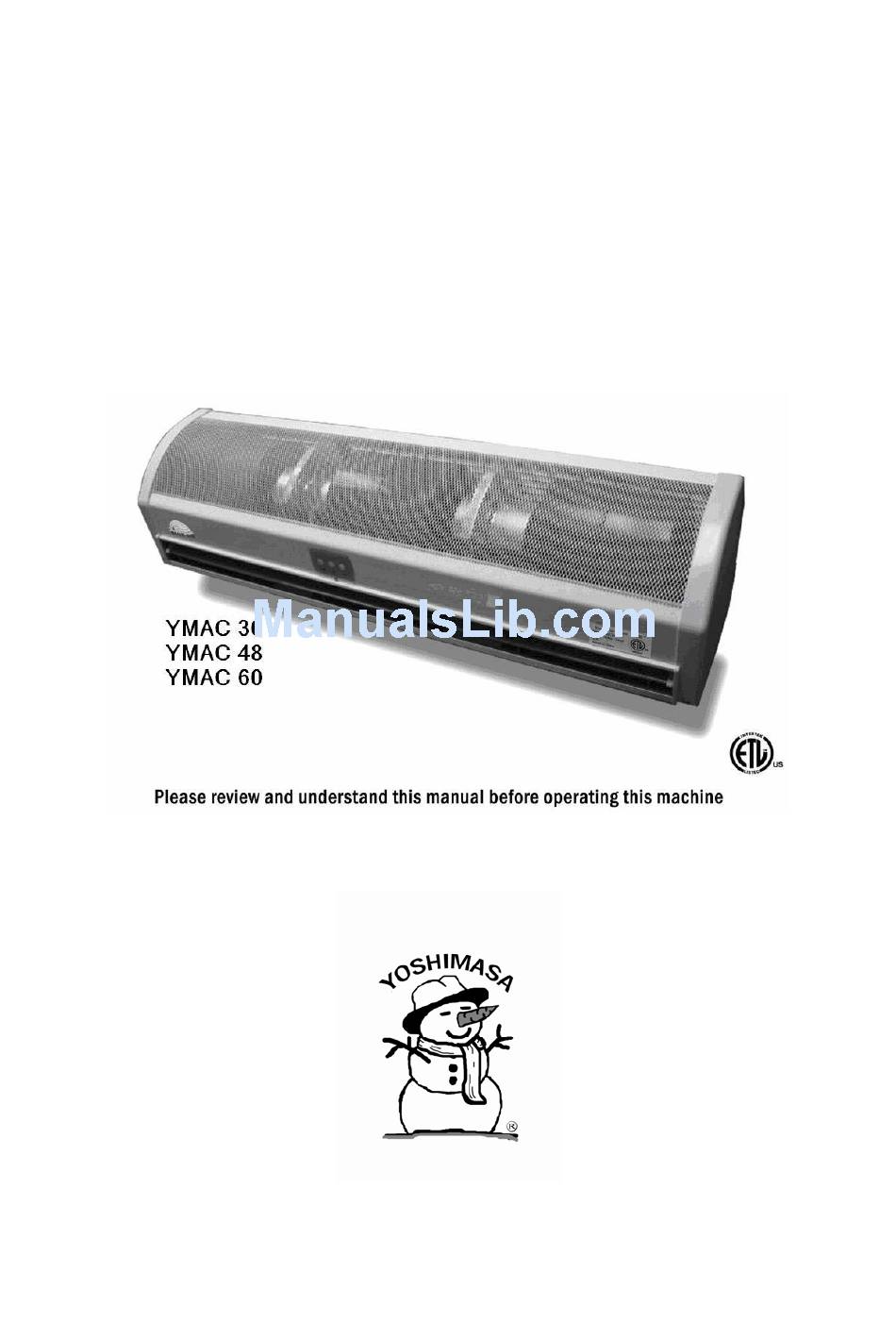

- Page 1 USER’S MANUAL www.YOSHIMASAUSA.com...
- Page 2 Instruction Manual READ AND SAVE THESE INSTRUCTIONS CAUTION: Read and follow all instructions before Operating Fan. Do not use fan if any part is damaged or missing. WARNING: To Reduce the Risk of Fire or Electrical shock, Do Not Expose to Water or Rain. To Reduce the Risk of Fire or Electrical shock, Do Not Use This Fan with Any Solid State Speed Control Device.
- Page 3 3: INSTALLATION DIMENSIONS [Inch] 4: INSTALLATION METHOD WARNING: INSTALLATION & ELECTRICAL CONNECTION MUSTBE PERFORMED BY QUALIFIED TECHNICIAN 1) Accessories: 6sets of (M8×60L) Fastening bolt, Washer, Spring washer, and (M8) Nut 2) Check to ensure the voltage /frequency on rating label is complied with the local power source before use.
- Page 4 b. Install INSTALLATION PLATE on the wall: - To fix position of installation. - Insert bolts and fill with cement for consolidation. - After cement solidifies, Install INETALLATION PLATE on bolts and fasten it with washers, spring washers and nuts. (See diagram on the right) - To ensure INSTALLATION PLATE is fixed securely.
- Page 5 See attached instruction guide comes with Micro Door Switch or available at www.YOSHIMASAUSA.com 8. Remote Control (optional) Remote control is available at www.YOSHIMASAUSA.com or call at 1(800)789-9835 Remote Control [YMAC36-Remote, YMAC48-Remote,YMAC60-Remote] * YOSHIMASAUSA has the right to change specifications without prior notice.
- Page 6 WARRANTY CERTIFICATE Warranty Valid Only In USA & CANADA Warranty Information 1Year parts and labor Warranty In USA & CANADA Warranty Claims All labor claims or parts must include copy of original invoice submitted directly to YOSHIMASAUSA. All claims must include: a copy of original invoice (Customer Name, Customer Address, Model Name, and Date of Sale), Customer Name, Address, Phone Number, Model and Serial Number of the unit, Date of Sale, Distributor Name, and a Brief Description of Complaint.
- Page 7 www.YOSHIMASAUSA.com...
