Summary of Contents for Santa Medical PM-180

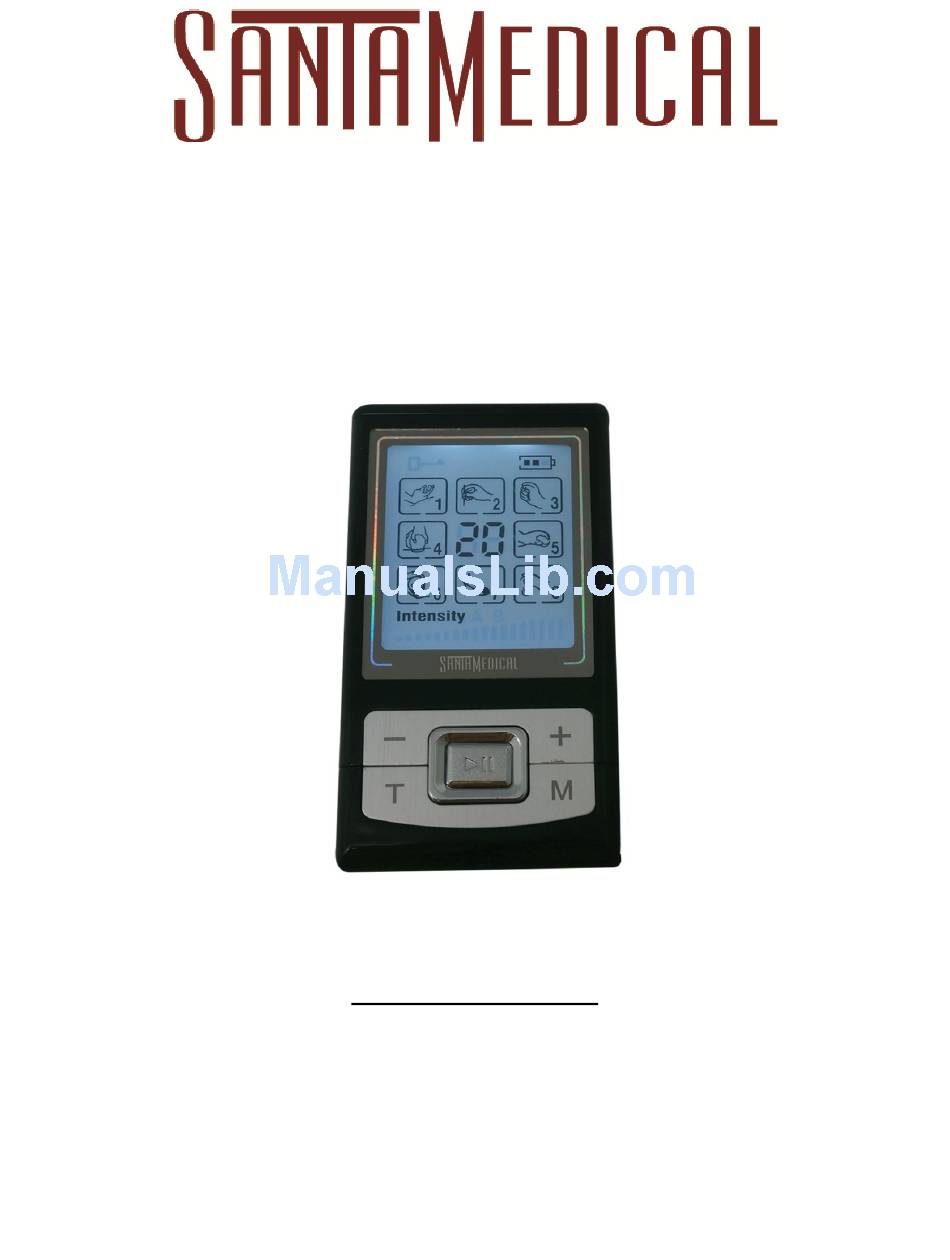

- Page 1 Mini Pulse Electronic Stimulator Model: PM-180 Operating Manual IMPORTANT: Please read all instructions before using this product. Retain this manual for future reference. www.santamedical.com...
- Page 2 IMPORTANT NOTICES TO USERS Do not use this device if you have an implanted defibrillator or implanted metallic devices. Such use could cause electrical shock, burns, electrical interference or death. If you have one of the following conditions, please consult with your physician before purchasing or using this device.
-
Page 3: Indications For Use

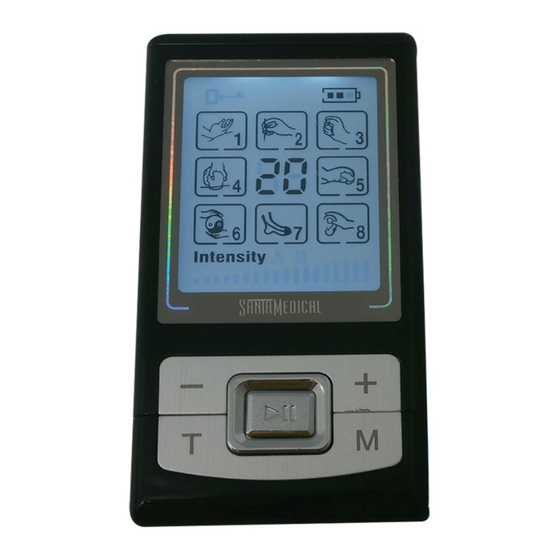

Santamedical PM-180 has 8 operation modes. Its screen can show the battery power, selected mode, current intensity, and remaining time. The device is equipped with accessories of four electrode pads, two electrode cables, one battery charger, one USB cable, and one wire roller coupled with the pad holder. -
Page 4: Part Identification And Functions
PART IDENTIFICATION AND FUNCTIONS 1. Channels Outlets 8. Mode Selector 2. On/Off Switch 9. Pads and Wires Collector 3. LCD Screen 10. Electrode Pads 4. USB Port 11. Lead Wires 5. Intensity Increase/Decrease 12. USB Cable 6. Timer 13. USB charger 7. -
Page 5: Recommended Practices
SET UP To Operate 1. Make sure the power switch of the device is in the OFF position. 2. Connect a pair of electrode pads to one connecting wire by snapping them on; the other end of the connecting wire is connected to the left output of the device. Similarly, the other pair of electrode pads is connected to the remaining connecting wire and the right output of the device. -
Page 6: Positions For Use
POSITIONS FOR USE Please be sure area to be treated is free of perspiration, dirt and abrasions. Attach to desires area as shown on diagrams above. TROUBLESHOOTING If your device is not operating properly, please check below for common problems and suggested solutions. Device does not turn on Check if the battery is low and needs to be recharged. - Page 7 If problem persists, contact your physician. • Note 1. Do not tamper with this product or expose to excessive heat, humidity, or prolonged direct sunlight. 2. Our company will not be held responsible for any damages to product or its accessories caused by improper use and/or disassembly.
