Summary of Contents for Channel Vision A0915

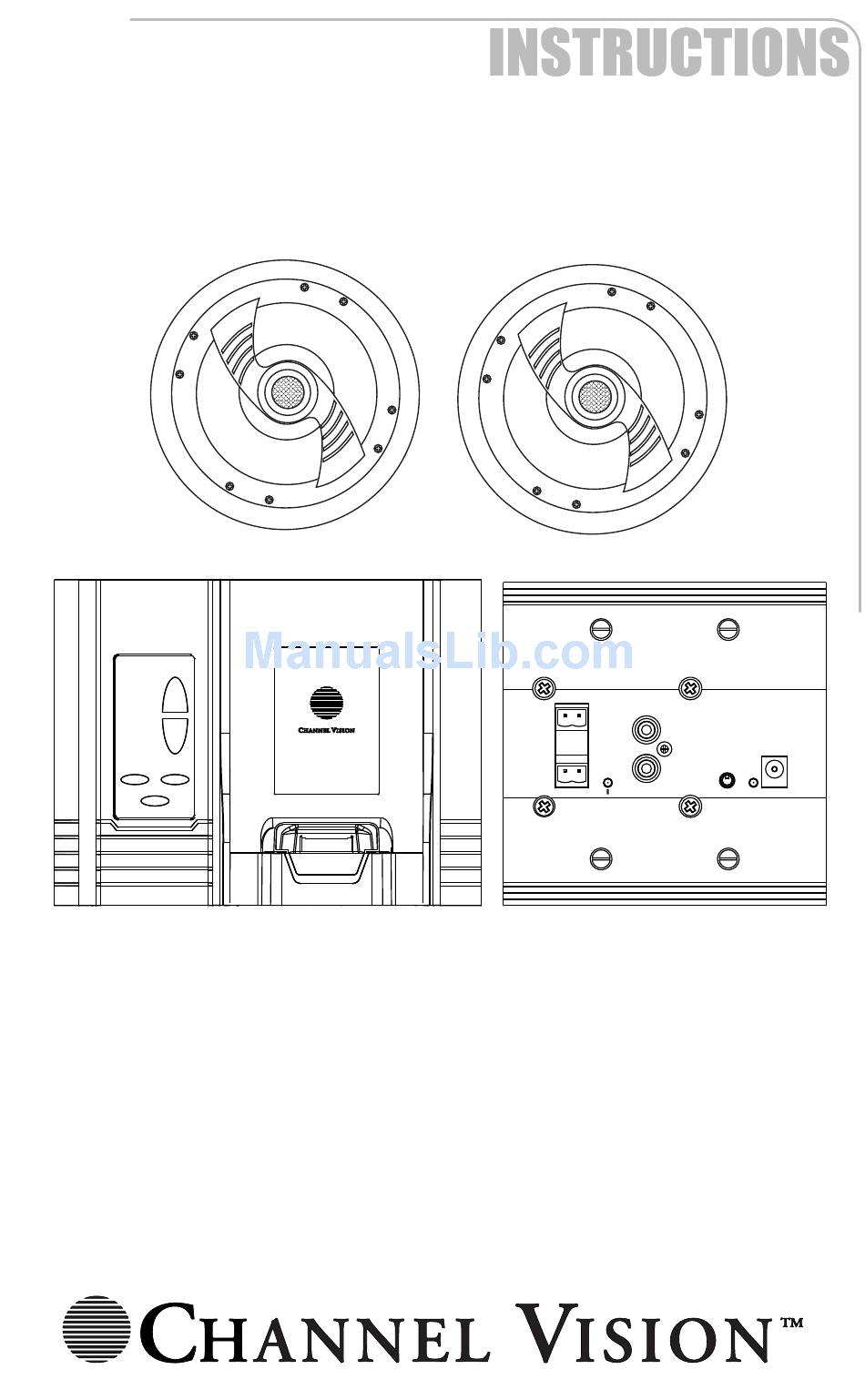

- Page 1 A r i a By CHANNEL VISION Flush Mount Amplifier Spkrs Active Local In IR In 24VDC A0915 iBus Wall-Dock Single Room Kit • Intelligent Entertainment • Infrastructure • Security Solutions...
-
Page 2: Product Introduction
The A0915 Kit includes the iBus Wall Dock for iPod, 100W Amplifier, Keypad controller, and one pair of 6.5" architectural speakers. - Page 3 (RCA) audio input on the front. A r i a Speaker outputs can be used on either the front or By CHANNEL VISION Flush Mount Amplifier the back. A 24vDC 4 Amp power supply is included with this amplifier.
-
Page 4: In-Wall Installation
Installation A0350 Installation The A0350 can be installed in the wall using a standard 2-gang junction box or low-voltage mounting ring. In-Wall Installation Standard 2-gang ring or extra deep Attach unit with the j-box (not included) provided screws Note: if using a j-box, it must have a minimum A r ia depth of 3.5”... - Page 5 Installation Continued A0315 Installation Steps 1. Connect all wiring. 2. Attach main chassis to j-box using the provided four 6-32 screws. 3. Feed the dock connector circuit board through the opening in the front cover. 4. Hang the front cover on the main chassis from the two top tabs.
- Page 6 Installation Continued In some installations it may be desirable to mount a single gang control keypad next to the A0315. To accomplish this, the single gang trim plate can be installed next to the A0315 in a 3-gang junction box. Follow the steps below: Installation Steps 1.
-
Page 7: Basic System Diagram
Connect the A0315 to the CAT5 input on the back of the A0350. Plug the A0129 into the back of the keypad input on the back of the A0350. A0350 A0129 A r i a By CHANNEL VISION Flush Mount Amplifier Plug into Spkrs Active... -
Page 8: Troubleshooting
Troubleshooting Problem: Hum in System Troubleshooting: Plug all parts of the system into the same outlet to see if the hum goes away. Try lifting the ground with a ground lifting plug. Cause: The different components in the system are connected to different electrical grounds. - Page 9 Troubleshooting Continued Problem: iPod not charging Troubleshooting: Verify you have plugged the CAT5 into the output on the back of the A0315. Verify you have plugged the CAT5 into the terminal labeled audio input on the back of the A0350. Cause: iPod dock not connected properly, wire crimped improperly or plugged into the wrong terminal, iPod too old (not compatible) or has a very worn out connector that is not making a good connection to the A0315 dock.
-
Page 10: Top View
Certifications Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 11: Specifications
Specifications A0350 Specifications: (typical at 77 ) º Amplifier: Power input: 24VDC 4 Amps Output power: 50 Watts/ch RMS into 6 ohms @ <10% THD Frequency Response: 20-20kHz (+/-3dB) Signal to Noise Ratio: >85dB Input Sensitivity: 500mVRMS Auto On Threshold: 10mVRMS Storage Temperature: -40 to +85º... - Page 12 Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for one year from the date of original purchase. This is a no hassle warranty with no mail in warranty card needed.
