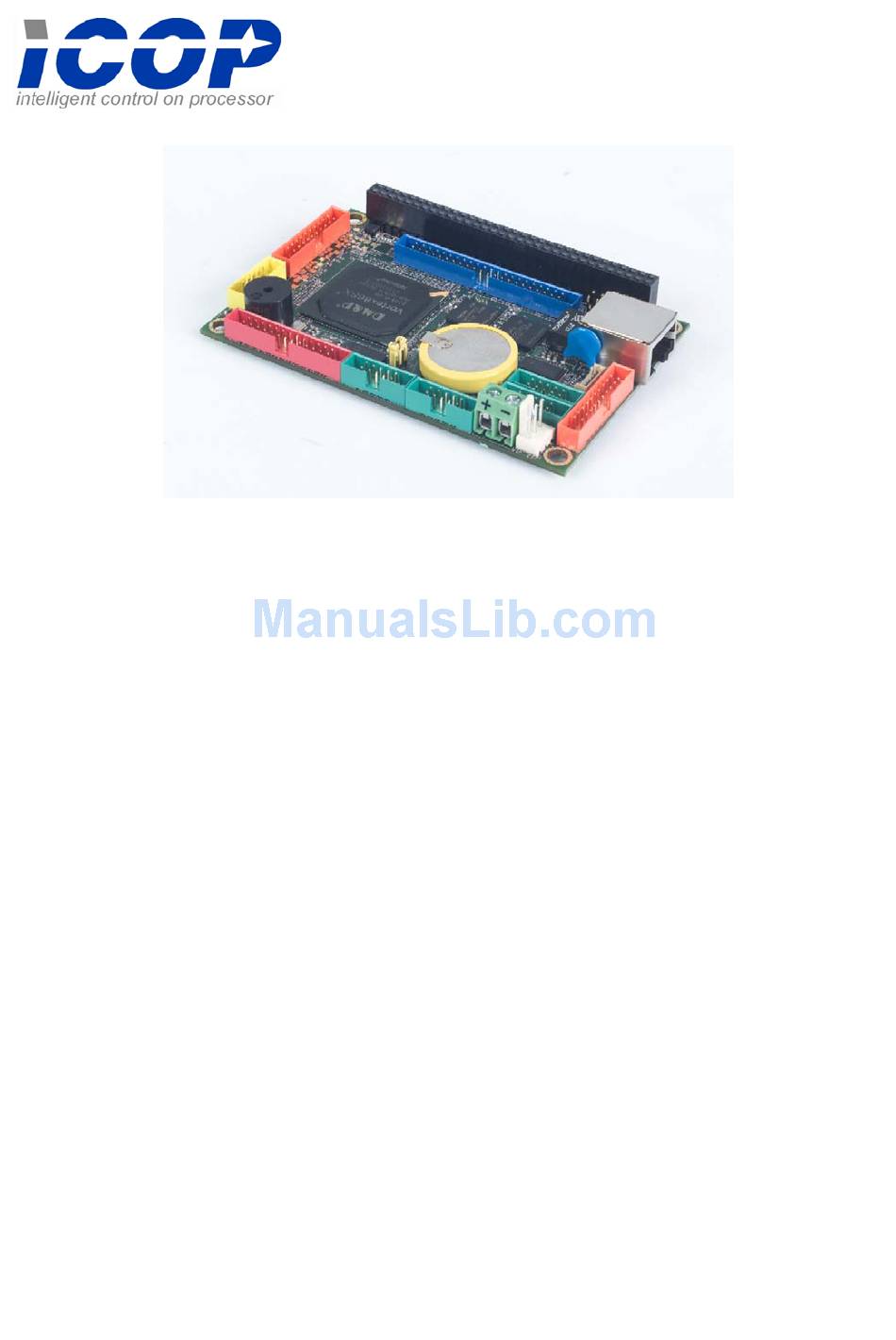

- Page 1 VSX-6115 DM&P Vortex86SX 300MHz Tiny CPU Module with 4S/2USB/LAN/2GPIO 128MB DDR2 Onboard User’s Manual (Revision 1.2A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.. ©Copyright 2007 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s .............iii C h a p t e r 1 Introduction……………………………………………1 Packing List............1 Product Description .......... -
Page 4: Chapter 1 Introduction
Introduction Packing List Product Name Package Embedded Vortex86SX CPU All-in-One Board Manual & Drivers CD x 1 VSX-6115 RS232 cable x 4 PRINTER cable x1 IDE cable x 1 USB cable x 1 (USB port x 2 GPIO cable x 2... -
Page 5: Product Description
Tiny controller. The VSX-6115 family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering. -
Page 6: Specifications
1.3 Specifications Features VSX-6115 DM&P SoC CPU Vortex86SX- 300MHz Real Time Clock with Lithium Battery Backup Cache L1:16K I-Cache, 16K D-Cache BIOS AMI BIOS Bus Interface 16-bit x-ISA interface System Memory 128MB DDR2 onboard Watchdog Timer Software programmable from 30.5 us to 512 seconds x2... -
Page 7: Board Dimension
1.4 Board Dimension Vortex86SX-6115 Vortex86SX™ Tiny CPU Module... -
Page 8: Chapter 2 Installation
C h a p t e r 2 Installation 2.1 Board Outline Note: VGA function support (ICOP-2720) via x-ISA Interface ICOP-2720: http://www.icop.com.tw/products_detail.asp?ProductID=9 Vortex86SX-6115 Vortex86SX™ Tiny CPU Module... -
Page 9: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors Vortex86SX-6115 Vortex86SX™ Tiny CPU Module... - Page 10 Jumpers & LEDs Vortex86SX-6115 Vortex86SX™ Tiny CPU Module...
-
Page 11: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections nbrs. 44-pin Box Header, 2.0∅ ,22x2 10-pin Box Header,2.0∅ , 5x2 JTAG 6-pin Wafer, 1.25∅ , 6x1 Reset 2-pin Pin Header, 2,54∅,1x2 PS/2 Keyboard 5-pin Box Header, 2,54∅,1x5 COM1 10-pin Box Header, 2.0∅... -
Page 12: Pin Assignments & Jumper Settings
2.4 Pin Assignments & Jumper Settings J1: IDE (44 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID... - Page 13 J5: RESET Pin # Signal Name Pin # Signal Name VCC3 J6: PS/2 Keyboard Pin # Signal Name Pin # Signal Name KBCLK KBDAT J8: COM 1 Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 Vortex86SX-6115...
- Page 14 J9: GPIO (Port 0 / Port 1) Pin # Signal Name Pin # Signal Name GP00 GP10 GP01 GP11 GP02 GP12 GP03 GP13 GP04 GP14 GP05 GP15 GP06 GP16 GP07 GP17 J10: COM2 Pin # Signal Name Pin # Signal Name DCD2 RXD2 TXD2...
- Page 15 J12: GPIO (Port 2 / Port 3) Pin # Signal Name Pin # Signal Name GP20 SPICS / GP30 GP21 SPICLK / GP31 GP22 SPID0 / GP32 GP23 SPIDI / GP33 GP24 GP34 GP25 GP35 GP26 GP36 GP27 GP37 (If there is a 2M SPI flash Disk onboard, you cannot use GP30~GP33 Pins) J13: RS-485 (Auto direction) Pin # Signal Name...
- Page 16 J16: PRINT Pin # Signal Name Pin # Signal Name STB- ACK- BUSY SLCT AFD- ERR- INIT- SLIN- J17: COM4 Pin # Signal Name Pin # Signal Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 Vortex86SX-6115 Vortex86SX™ Tiny CPU Module...
- Page 17 J18: X-ISA Connector – 64pin Pin # Signal Name Pin # Signal Name SBHE RSTDRV SD10 SD11 SD12 SD13 IOCHRDY SMEMW SMEMR SA19 SA18 SA17 SD14 SA16 SD15 SA15 MEMCS16 SA14 ICOS16 SA13 REFRESH SA12 SYSCLK SA11 IRQ7 SA10 IRQ6 IRQ5 IRQ4 IRQ3...
-
Page 18: System Mapping
System Mapping Vortex86SX-6115 Vortex86SX™ Tiny CPU Module... - Page 19 Vortex86SX-6115 Vortex86SX™ Tiny CPU Module...
- Page 20 Vortex86SX-6115 Vortex86SX™ Tiny CPU Module...
-
Page 21: Watchdog Timer
Watchdog Timer There are two watchdog timers in Vortex86SX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 22: Gpio
GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 23: Spi Flash
SPI flash (Serial Peripheral Interface) As SPI Flash (Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver). -
Page 24: Chapter 3 Driver Installation
C h a p t e r Driver Installation The Vortex86SX processor also integrated 10/100Mbps Ethernet controller that supports both 10/100BASE-T and allows direct connection to your 10/100Mbps Ethernet based Local Area Network for full interaction with local servers, wide area networks such as the Internet. I/O and IRQ settings can be done by software with the supplied utility software, or it can be set for Plug and Play compatibility. -
Page 25: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
