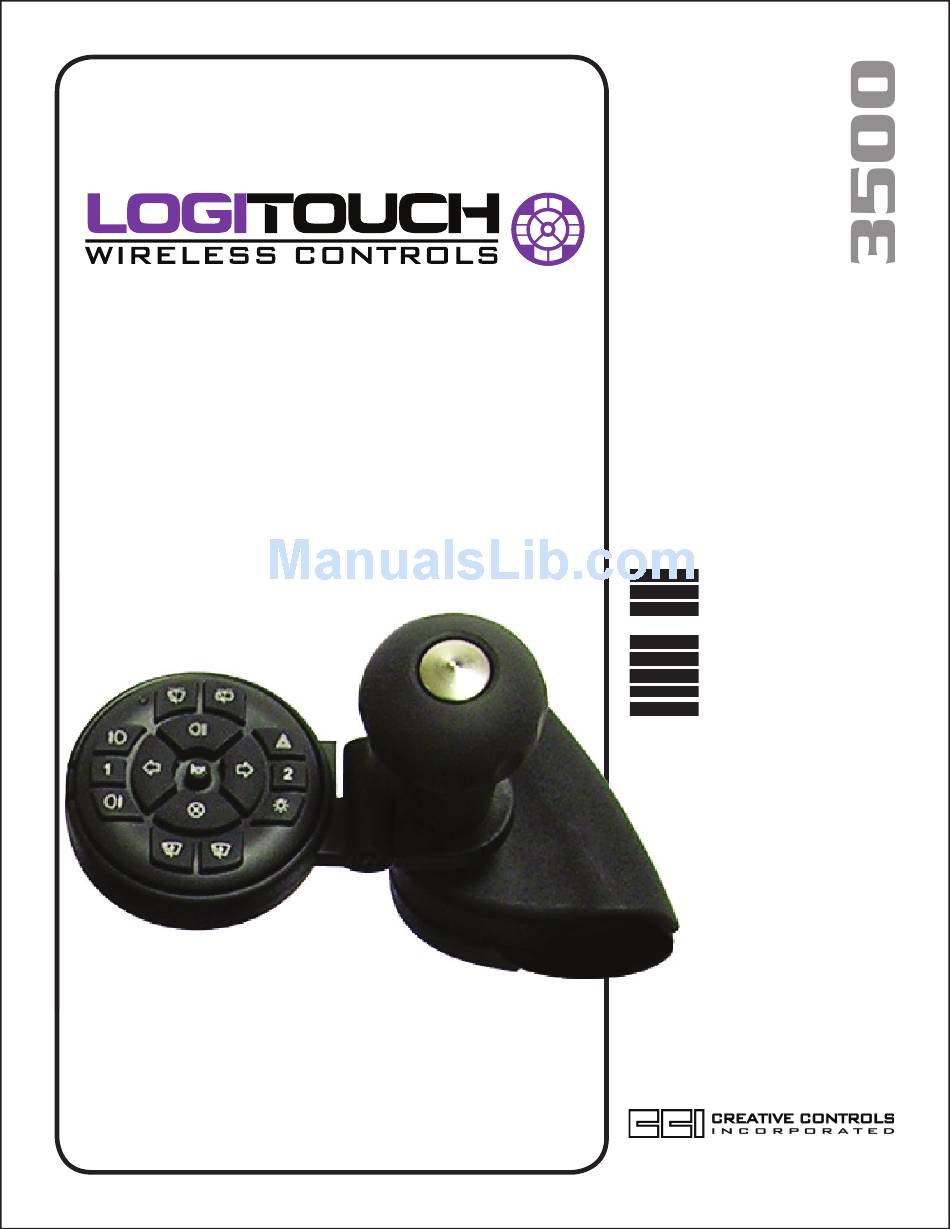

INSTALLATION GUIDE
Up to 18 Functions
Wireless Handset Controls
The Control Unit is powered by the ignition
and will only operate when the ignition is on.
The Transmitter is battery powered and only
operates when a button is pressed.
The maximum operating range in free air
is approximately 20 yards. each one has its
is approximately 20 yards. each one has its
own unique ID code so there is no danger of
own unique ID code so there is no danger of
operating another vehicle accidentally.
operating another vehicle accidentally.
The cars existing controls are unaffected by
The cars existing controls are unaffected by
the transmitter signal and will operate as
the transmitter signal and will operate as
normal. For the control to work correctly, the
normal. For the control to work correctly, the
car's controls should be set to turn indicators
car's controls should be set to turn indicators
off and lights on low beam.
off and lights on low beam.
Installation Manual
Ver.2.1
*patent (or pending)
Advertisement
Summary of Contents for Creative controls LogiTouch
- Page 1 INSTALLATION GUIDE Up to 18 Functions Wireless Handset Controls The Control Unit is powered by the ignition and will only operate when the ignition is on. The Transmitter is battery powered and only operates when a button is pressed. The maximum operating range in free air is approximately 20 yards.
- Page 2 Those that are not available can be developed with a one – two week lead time. Logitouch systems are transferable. A new hook-up sheet will be required unless it is transferred to an identical car, and can be obtained from cci.
- Page 3 LogiTouch Installation & Setup Instructions, Ver. 2008 Overview: The new RKS100 is a remote keypad system that operates the vehicle secondary controls using a wireless (2.4Ghz radio link) system. It has been designed to offer the most flexibility available. It is one standard, universal kit that can be installed a number of different ways.
-
Page 4: Transmitter Keypad
LogiTouch Installation & Setup Instructions, Ver. 2008 Transmitter Keypad: The transmitter keypad is battery powered, and the batteries will last 2-3 years with average use. The maximum operating range in free air is approximately 20 yards. Each one has its own unique ID code so there is no danger of operating another vehicle accidentally. There is a low battery indicator which also indicates if the transmitter is being received by the relay box. - Page 5 LogiTouch Installation & Setup Instructions, Ver. 2008 Steering wheel clamp & steering ball assembly and use: The steering knob assembly does not need any oil or grease. It has a resistance element built into it which needs the clamps to be installed as follows for it to work correctly.
- Page 6 LogiTouch Installation & Setup Instructions, Ver. 2008 Decoder relay box: Overview: The decoder has a built in transceiver which communicates with the transmitter. It is designed so any set up procedures can be carried out without any extra equipment, with the transmitter acting as a control interface to change any settings. It is designed to directly drive any of the usual secondary controls on a car (turns, lights etc) with a minimum of extra components.
- Page 7 LogiTouch Installation & Setup Instructions, Ver. 2008 Decoder relay box internal modes function detail: Turn Indicators and hazards wiring: The first three turn indicator wires are intended to be wired in parallel with the vehicle indicator switches on vehicles that have independent turn lamps. The additional four wires are for domestic style turn indicators that are shared with the brake lamps.
- Page 8 LogiTouch Installation & Setup Instructions, Ver. 2008 F. Relay (Four) Turn Indicators Mode (many domestic vehicles) a. The decoder can be set to operate the style of turn indicators that share a rear lamp for brake and turn. This will directly drive the car with no additional components or relays.
- Page 9 LogiTouch Installation & Setup Instructions, Ver. 2008 Mode 4 Nissan Mode - dim on when main is on. a. When headlights (off/park/headlights) are set to off, or parklights on: Flash output is momentary, Dim/main does nothing. b. When headlights (off/park/headlights) are set to headlights on: The startup condition is Dim/main turned on, flash off. Flash output is latching, and toggles on and off when Dim/Main/Flash switch is pressed.
- Page 10 LogiTouch Installation & Setup Instructions, Ver. 2008 b. Two “soft” outputs wiper down 1 and 2 c. Pressing wiper down button operates “soft” output wiper down 1 for 0.5 sec. then “soft” output wiper down 2 momentarily until wiper up is released.
- Page 11 LogiTouch Installation & Setup Instructions, Ver. 2008 c. To turn both off, press button for 2 seconds. Mode 2 Safety interlock. a. Press headlights switch for parklights only to turn on. b. Press again for park and headlights on. c. To turn both off, press headlights switch for 2 seconds.
