Summary of Contents for Family TCB-8063HI series

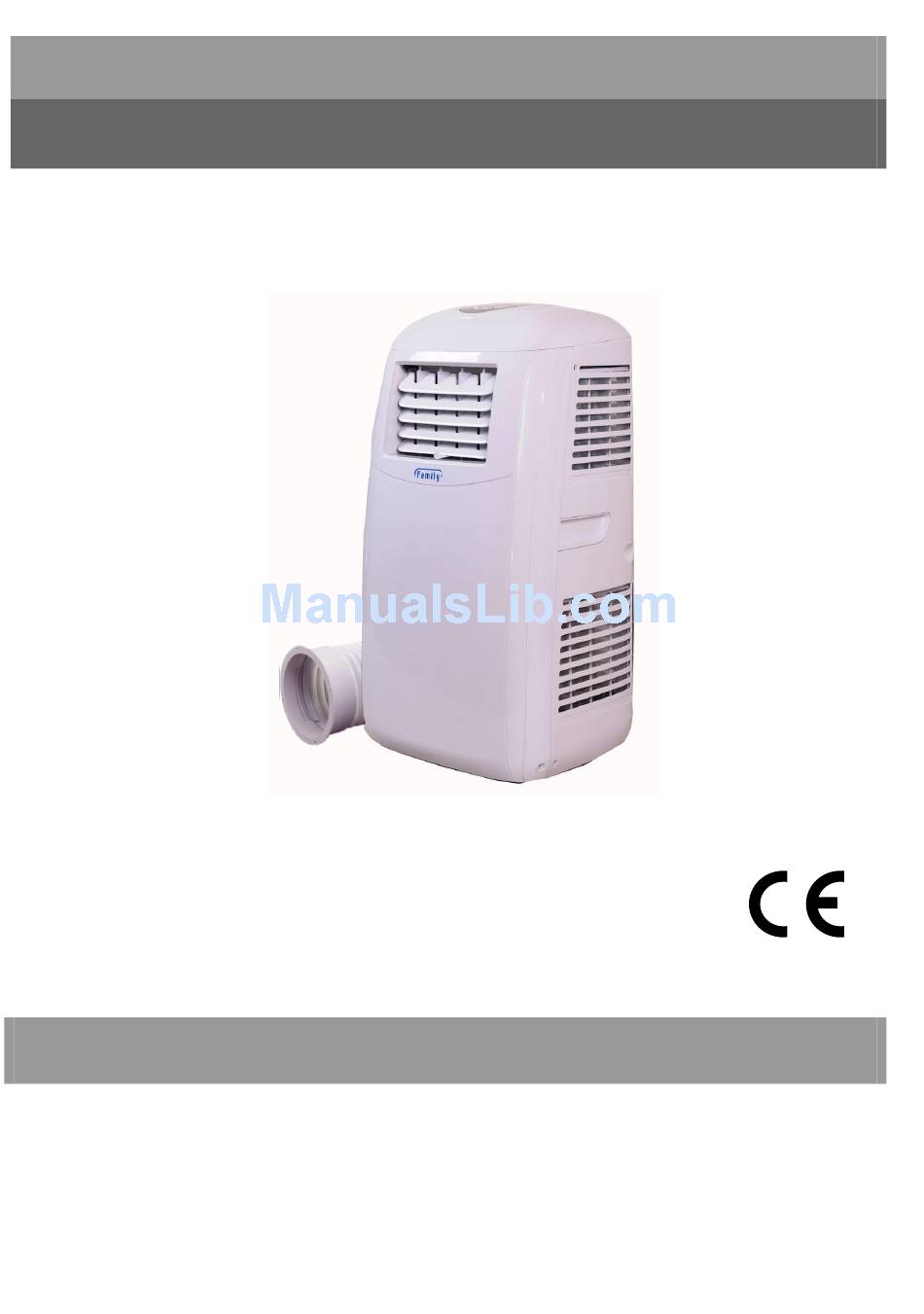

- Page 1 PORTABLE AIR CONDITIONER INSTRUCTION MANUAL r TCB-8063HI series ☆ Read and retain these instructions for future reference...
-
Page 2: Specification
SPECIFICATION Model no. TCB-8063HI Cooling capacity Heating capacity Power/Ampere consumption for cooling Power/Ampere consumption for heating Air volume (max. speed) Humidity removal capacity 1.2L/hour Power supply 220-240V~, 50Hz Compressor rotary Refrigerant R410A Fan speed Timer 1～24 hours Working temperature Cooling:18~32 Heating: 7~25 Exhaust pipe Ø... -
Page 3: Before Use
BEFORE USE GENERAL SAFETY Only use in the upright position on a flat level surface and at least 36cm from any objects (fig 1 & 4). Do not place objects on the unit or block the air inlet / outlet (fig. 2). ... - Page 4 PARTS Front Back FIG.5 FIG.6 Air filter Control Panel Exhaust air outlet Carrying handle Air filter Water tank Air inlet Caster 10. Cord storage Air outlet 11. Air inlet 12. Water stopper / drainage point Accessories FIG.7 16. Foam strip - for filling the open 19.
-
Page 5: Installation
INSTALLATION Installation of the exhaust pipe The unit is a portable air conditioner that may be moved from room to room. 1. Using the window spacer Window spacer FIG. 8 Offer window spacer to the window gap and adjust the length as you need. ... - Page 6 Mounting of the exhaust pipe Use only the hose provided and clip exhaust hose and unit adaptor to the back of the air conditioner Avoid kinks and bends in the exhaust hose as this will cause expelled moist air to build up causing the unit to overheat and shut down.
- Page 7 Installation of the carbon filter FIG.11 Remove the filter frame from the unit. Separate the filter fixer from the filter frame. Remove the active carbon filter from its plastic bag. Insert the active carbon filter into the filter frame. Fix the filter by reassembling the fixer onto the filter frame.
-
Page 8: Operation
OPERATION Control panel FIG.13 1. ON/OFF button Display window 2. MODE button Heating operation indicator (optional) 3. TEMPERATURE UP button Automatic mode indicator 4. TEMPERATURE DOWN button Cooling operating indicator 5. SPEED (ventilation) button Fan operation indicator 6. TIMTER button High ventilation indicator 7. - Page 9 Setting mode/function Press MODE button to select required working mode: cooling, fan or heating, (Heating is only available for heating & cooling models.) Sign of your selected mode comes on. Setting temperature Press 'Temperature up' or 'Temperature down' button to regulate the temperature you desired.
- Page 10 Heating function (optional) - When using Heat Pump, the ambient warm air (usually spelled during the summer season) is recycled and use to heat the area where it is required. The Exhaust Pipe must be still fitted to allow the cold air to be removed in this mode & used in the usual way. Under this 、MEDIUM system, the machine can run at HIGH...
- Page 11 NOTICE ! To prolong the compressor's life, after switch-off of the unit, please wait for 3 minutes (at least) before re-switch. The cooling system will switch off if the ambient temperature is lower than the set one. The ventilation, however, keeps working on the set level. If the ambient temperature rises above the selected level, the cooling will return to work.
- Page 12 DRAINAGE During the process of cooling, some water will be extracted from the air into the unit. If the both of the compressor and motor will stop. The “water full” sign will light on, also reservoir is full, the machine will beep as reminder. To make the cooling work again, please empty the water by one of the following ways: Turn off the air conditioner and avoid moving it when full.
- Page 13 The drain tube may be extended by adding an extension tube and using a suitable connector. Drain tube FIG.18 Please note The drain must be at or below the outlet level. 2. Flashing comp / ‘full water’ indicator will not function in this mode of drainage.
-
Page 14: Maintenance
MAINTENANCE Always unplug the air conditioner from the mains before cleaning. To maximize the efficiency of the air conditioner clean regularly. Cleaning the housing Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions. -
Page 15: Fault Check List
FAULT CHECK LIST The air conditioner does not run Is the air conditioner plugged in? Is there a power failure? Is the comp / ‘full water’ indicator flashing? room temperature below temperature? The machine seems to do little Is there direct sunshine ? (Please put down the curtain.) ...
