Summary of Contents for Microlight IR-1 HELIOS

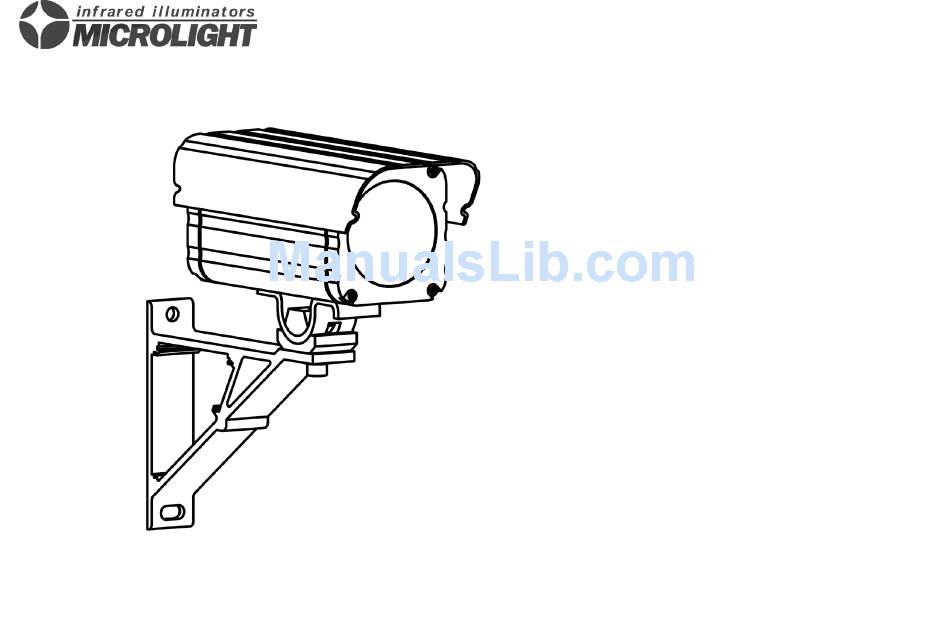

- Page 1 Infrared illuminator IR-1 HELIOS Technical manual Version 3.1 (03.2010)
-
Page 2: Product Description
Thank you for purchasing a product by Microlight Product description The IR-1 Illuminator is designed for covert illumination of environments in conditions of insufficient lighting. HELIOS may be installed either outdoors or indoors. For appropriate cooling it is necessary to provide free circulation of ambient air around the illuminator's case (while installing). -
Page 3: Technical Parameters
Technical parameters Wavelength, nm Illumination range, m see table 1 * Viewing angle, ° variable, from 2 to 100 ** Photosensor turn off delay, sec 30 *** Input voltage, V 12...24 AC/DC Power consumption , W under 4 Operating temperature, °С –30...+40 Dimensions, mm 72×73.5×185 ****... - Page 4 Photocell switch Photocell switch is a built-in device for automatic on/off switching of IR-1 illuminator, with operating threshold light level of 3 lux. From short-term changes in lighting, such as headlights of a passing car, photocell is protected by a turn on delay chip, that shuts down power if light stays on for over 30 sec.
- Page 5 Installation guide – Assemble the bracket as shown on the picture; – Attach the illuminator with a visor to the bracket using two internal hexagon screws M4x10 (included in your package). Adjust horizontal placement settings; – Vertically fix the bracket with the illuminator, losing the hinge screw adjust rotation and vertical angles, tighten the screw; –...
-
Page 6: Maintenance
Maintenance Periodically clean the protective light filter and illuminator's case. Use a scrub or a brush to clean the case. Water may be used if needed. The light filter cleaning is done with a wet cotton cloth. Continuously change the contacting surface of a cloth to avoid filter's damage. -
Page 7: Warranty
Package includes 1. IR-1 Illuminator 2. Visor 3. Bracket Set (4 bracket pieces, two M4×10 screws, one M6×25 screw, a washer size 6) 4. Hexagonal key 5. Technical passport 6. Packing set Warranty The manufacturer or the supplier guarantees the IR-1 illuminator's conformity to the technical requirements under condition of compliance with storage and operational rules described in the manual. - Page 8 Other Microlight products IR-Plate IR-294 series Wavelength, nm: Illumination angles, º: Illumination distance, m: up to 5 in 880nm range: 18, 30, 45, 60, 90 Consumed power, W: in 940nm range: 18, 20, (60×40) Protection standard: IP66 Illumination distance, m:...
- Page 10 Microlight Co., Ltd. Dmitrovskoe Shosse, 100/2, office 317, Moscow, RF 127591 tel./fax +7 (495) 788-66-62 www.microlightcctv.com...
