Summary of Contents for Discovery Communications Discovery Adventures 8785105

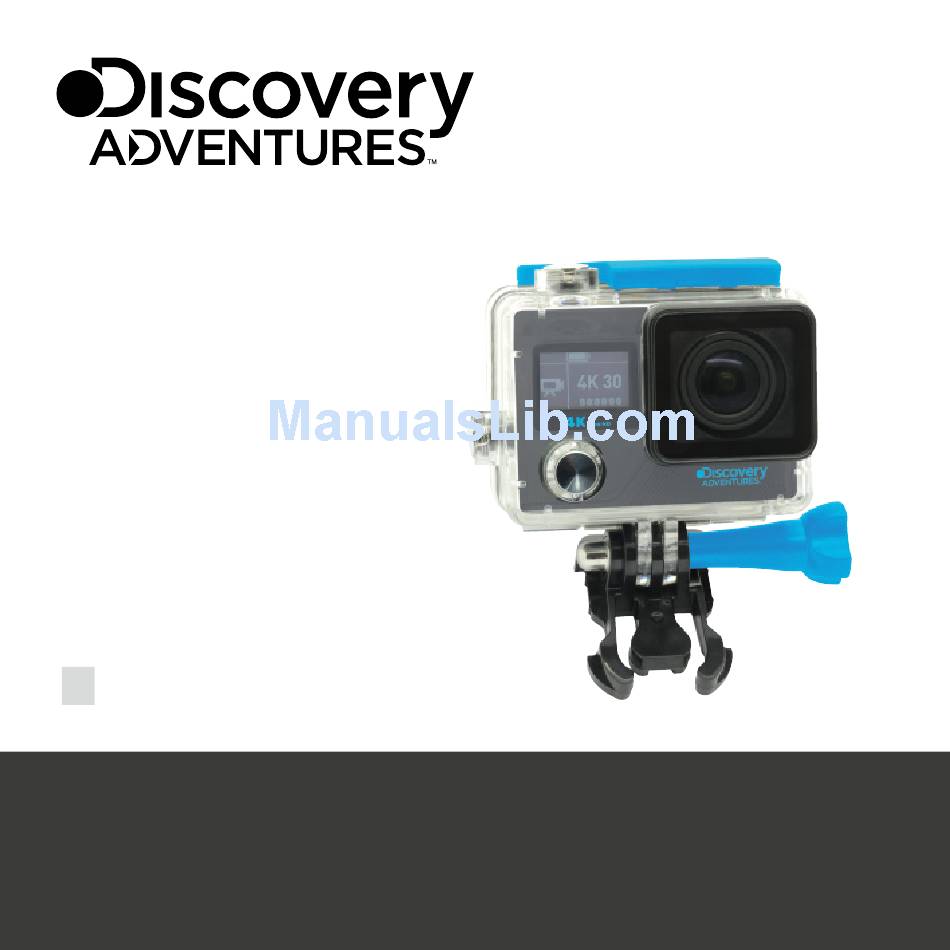

- Page 1 Art.No. 8785105 Operating instructions ACTION CAMERA Premium // ULTRA HD 4K WIFI...
- Page 2 Besuchen Sie unsere Website über den folgenden QR Code oder Weblink um weitere Infor- mationen zu diesem Produkt oder die verfügbaren Übersetzungen dieser Anleitung zu finden. Visit our website via the following QR Code or web link to find further information on this product or the available translations of these instructions.
-
Page 3: Service And Warranty
FULL MANUAL & VIDEO DOWNLOAD: www.bresser.de/download/8785105 APP DOWNLOAD „Ez iCam“: SERVICE AND WARRANTY: www.bresser.de/warranty_terms Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google Inc. -
Page 4: Intended Use
About this Instruction Manual Please read the safety instructions and the operating instructions carefully before use. Keep these instructions for renewed use at a later date. When the device is sold or given to someone else, the instruction manual must be provided to the new owner/user of the product. -
Page 5: Notes On Cleaning
• Do not interrupt an on-going data connection to a computer before all data has been transferred. This could lead to data loss for which the manufacturer is not liable. Notes on cleaning • Turn off the camera • Clean the eyepieces and/or lenses only with a soft, lint-free cloth, (e.g. microfibre cloth). To avoid scratching the lenses, use only gentle pressure with the cleaning cloth. -
Page 6: Warranty And Service
The integrated battery must only be removed for disposal. Opening the device housing can damage the unit. Drain the battery completely before disposal. Remove all the screws in the housing and open the device housing. Remove the connections to the battery and remove it. Cover the open contacts with tape and package the battery in such a way that it cannot shift in the packaging. -
Page 7: Scope Of Delivery
Scope of delivery Camera Case door Waterproof case Cable ties Bicycle mount USB cable and AC adapter Straps, Wire rope Thumb knobs and cleaning cloth Retaining clip for Base mount Multifunction mounts Selfie stick Camera housing and belt clip Remote control 1/4”... -
Page 8: First Steps
First Steps How to open and close the waterproof case: How to open: How to close: Press the clamp upward, to open Press the case door all the way down (1) and the housing (1). then snap the clamp to the hinge (2). Now, simply press the clamp down (3) to close. - Page 9 Installing or removing the battery A. Remove the battery compartment cover. B. Correctly install the battery into the camera. C. Replace the battery compartment cover. Battery cover Charging A. Charging can be done with the power adapter or by connecting the action camera to a computer via the usb cable.
- Page 10 Functions WIFI...
- Page 11 1. OLED screen 9. Wi-Fi button WIFI 2. Power button (on/off) 10. Loudspeaker & Menu & Mode button 11. OK / Record button 3. Lens 12. Battery cover 4. Microphone 5. microSD port 6. Micro HDMI port 7. Micro USB port 8.
- Page 12 How to use the Base mount Flat surface or curved surface mount: Choose the flat or curved base depending on the surface. Base mount (e.g. for Helmet mount):...
- Page 13 Mount examples: Base mount / Helmet mount: Helmet mount (Vertical mount) Bicycle mount: Belt mount:...
- Page 14 Operating Mode Switching Press the [Power ON/OFF / Mode] button [ ] repeatedly to cycle through the camera modes. Camera mode Description Video recording mode Video recording Photo shooting mode Take a single photo Photo shooting mode Burst mode (Continuous shooting) Photo shooting mode Time Lapse (Self-timer) Playback videos directly on the TFT screen...
- Page 15 How to record videos, take photos and configure settings Video Recording Press and hold the power switch [ ] for 3 to 5 seconds to turn the camera on. You will start with the video recording mode. There will be an [ ] icon in the upper left corner.
- Page 16 Press the Wi-Fi button [ ] to toggle between the modes. Press the „OK“ [ ] button to WIFI enter the corresponding mode. Video playback Use the [ ] button to switch between the individual recordings. Use the „OK“ [ ] button to play the videos.
- Page 17 Settings To access the settings, press [ ] several times until you see the icon [ ] for the settings. Now press “OK” [ ] to open the menu. Resolution (Video resolution) 3840x2160 (30fps), 2560x1440 (30fps), 1920x1080 (60fps) Resolution (Picture resolution) 12M/10M/8M/5M/3M/2M Video Interval (Video loop) 2 Min/ 5 Min/ 10 Min...
-
Page 18: Technical Data
Sound indicator Trigger - On /Off Startup - On /Off Menu sound - On /Off Volume : 0-3 Screen saver Off / 1 Min / 3 Min / 5 Min Power saver Off / 1 Min / 3 Min / 5 Min Format All data on the sd card will be deleted Reset (default settings) - Page 19 Resolution of videos 4k (30 fps), 2.7k (30 fps), 1920x1080 (60 fps) Video format Video codec H.264 Storage Micro SD card up to 64 GB (not included) (SDHC Class 10 or higher required) Shooting mode Single photo / Time Lapse (2s/5s/10s) / Burst mode Frequency 50Hz/60Hz...
- Page 20 © 2017 & TM Discovery Communications, LLC. Discovery Adventures™ and logo are trademarks of Discovery Communications, LLC, used under license. All rights reserved. OFFICIAL LICENSED PRODUCT Bresser GmbH Gutenbergstr. 2 DE-46414 Rhede www.bresser.de · info@bresser.de Errors and technical changes reserved.
