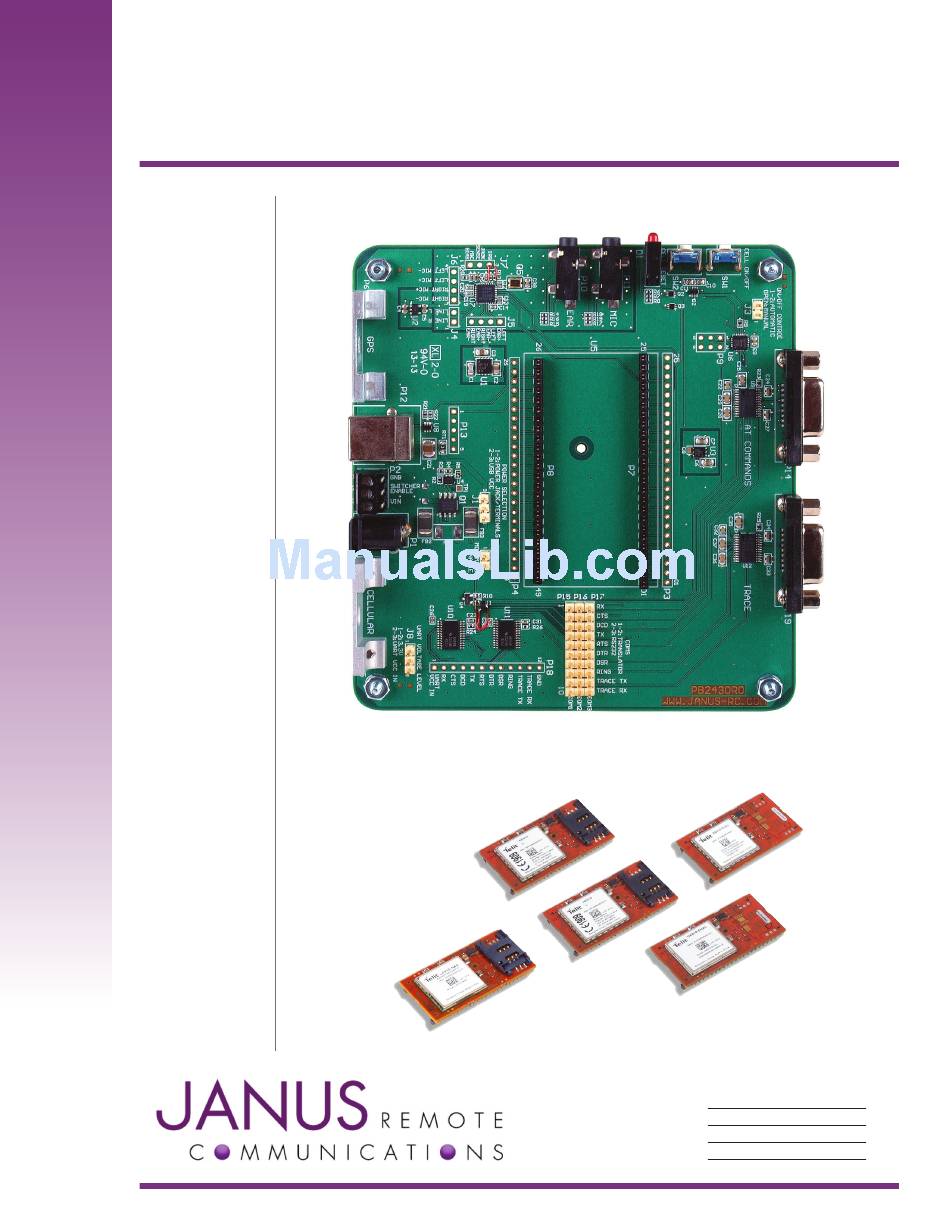

  • Page 1 910CF Plug-In Modules Evaluation Kit User Guide Bulletin JA03-EKUM_910 Revision Date 31 July 2013...
  • Page 2 Introduction The following document describes the functions of the evaluation board for the 910CF Plug-In series of cellular communication terminals. This guide, along with the Plug-In Modules Hardware User guide, allows all features of the terminal to be evaluated before your PCB goes into CAD.
  • Page 3: Trace Port

    Port Settings: Baud: 115200 Data bits: Parity: None Stop Bits: Hardware Handshaking: Terminus 910CF Modules Evaluation Kit User Guide Page 3 Rev: A00 Date: 07/31/13 Specifications subject to change without notice © Copyright 2013 Janus Remote Communications All Rights Reserved...
  • Page 4: Absolute Maximum Ratings

    2.3v to 2.7v 0.3v 3.0v to 3.6v 0.55v 4.5v to 5.5v 0.55v Terminus 910CF Modules Evaluation Kit User Guide Page 4 Rev: A00 Date: 07/31/13 Specifications subject to change without notice © Copyright 2013 Janus Remote Communications All Rights Reserved...
  • Page 5 USB Serial Ports: The development board allows access to virtual COM ports and modem ports via the USB. To use this interface during development you will need to download the USB drivers from the Janus website (www. janus-rc.com). The HSPA910CF will show several virtual COM ports after the drivers are installed. These are USB0 through USB6, along with a modem for applications like Dial Up with Windows.
  • Page 6: Led Indicators

    This bracket is for an MCX ended cable, in our evaluation kit we include a Murata GSC to MCX connector for this purpose. Terminus 910CF Modules Evaluation Kit User Guide Page 6 Rev: A00 Date: 07/31/13 Specifications subject to change without notice © Copyright 2013 Janus Remote Communications All Rights Reserved...
  • Page 7 This header section is for choosing which section of the board to communicate to the modem through. Terminus 910CF Modules Evaluation Kit User Guide Page 7 Rev: A00 Date: 07/31/13 Specifications subject to change without notice © Copyright 2013 Janus Remote Communications All Rights Reserved...
  • Page 8: Getting Started

    5 seconds, with an indication by the Red LED. Terminus 910CF Modules Evaluation Kit User Guide Page 8 Rev: A00 Date: 07/31/13 Specifications subject to change without notice © Copyright 2013 Janus Remote Communications All Rights Reserved...
  • Page 9 If you receive an OK, your connection is successful and you are now able to communicate with the module. Please refer to http://www.janus-rc.com/terminuscf.html for a link to further documentation. The CF User Manual will give you step by step instructions on setting up voice and data calls, SMS messages, and socket connections.
  • Page 10: Rs232 Serial Communication

    Data Bits: Parity: None Stop Bits: Flow control: Hardware Then press “OK.” Terminus 910CF Modules Evaluation Kit User Guide Page 10 Rev: A00 Date: 07/31/13 Specifications subject to change without notice © Copyright 2013 Janus Remote Communications All Rights Reserved...
  • Page 11 If you receive an OK, your connection is successful and you are now able to communicate with the module. Please refer to http://www.janus-rc.com/terminuscf.html for a link to further documentation. The CF User Manual will give you step by step instructions on setting up voice and data calls, SMS messages, and socket connections.
  • Page 12 This adjusts all audio types, and a max value of 14 can be used. Please see the AT Command Reference for full command details. Terminus 910CF Modules Evaluation Kit User Guide Page 12 Rev: A00 Date: 07/31/13 Specifications subject to change without notice © Copyright 2013 Janus Remote Communications All Rights Reserved...
  • Page 13 Errata The following points are noted issues with the current build of the 910 Evaluation PCB. The board has been tested as working with these changes, but Janus Remote Communications offers no warranty. Point 1: I2C lines to the codec, routed manually Point 2: Adjustment of a FET array for proper VBUS control.
  • Page 14: Plug-In Modules

    Plug-In Modules Evaluation Kit User Guide Revision Revision Date Note 07/31/13 Preliminary Release Janus Remote Communications Europe Division of The Connor-Winfield Corporation Bay 143 Shannon Industrial Estate 2111 Comprehensive Drive • Aurora, Illinois 60505 Shannon, Co. Clare, Ireland 630.499.2121 • Fax: 630.851.5040 Phone: + 353 61 475 666...
