Summary of Contents for Tecno Slot TST43A
- Page 1 TST43A ASSEMBLY INSTRUCTIONS: TECNO with magnet effect SLOT Avgda. Sant Esteve, 4 1‐3 08402 GRANOLLERS (Barcelona‐Spain) E‐mail: mail@tecno‐slot.com www.tecno‐slot.com ...

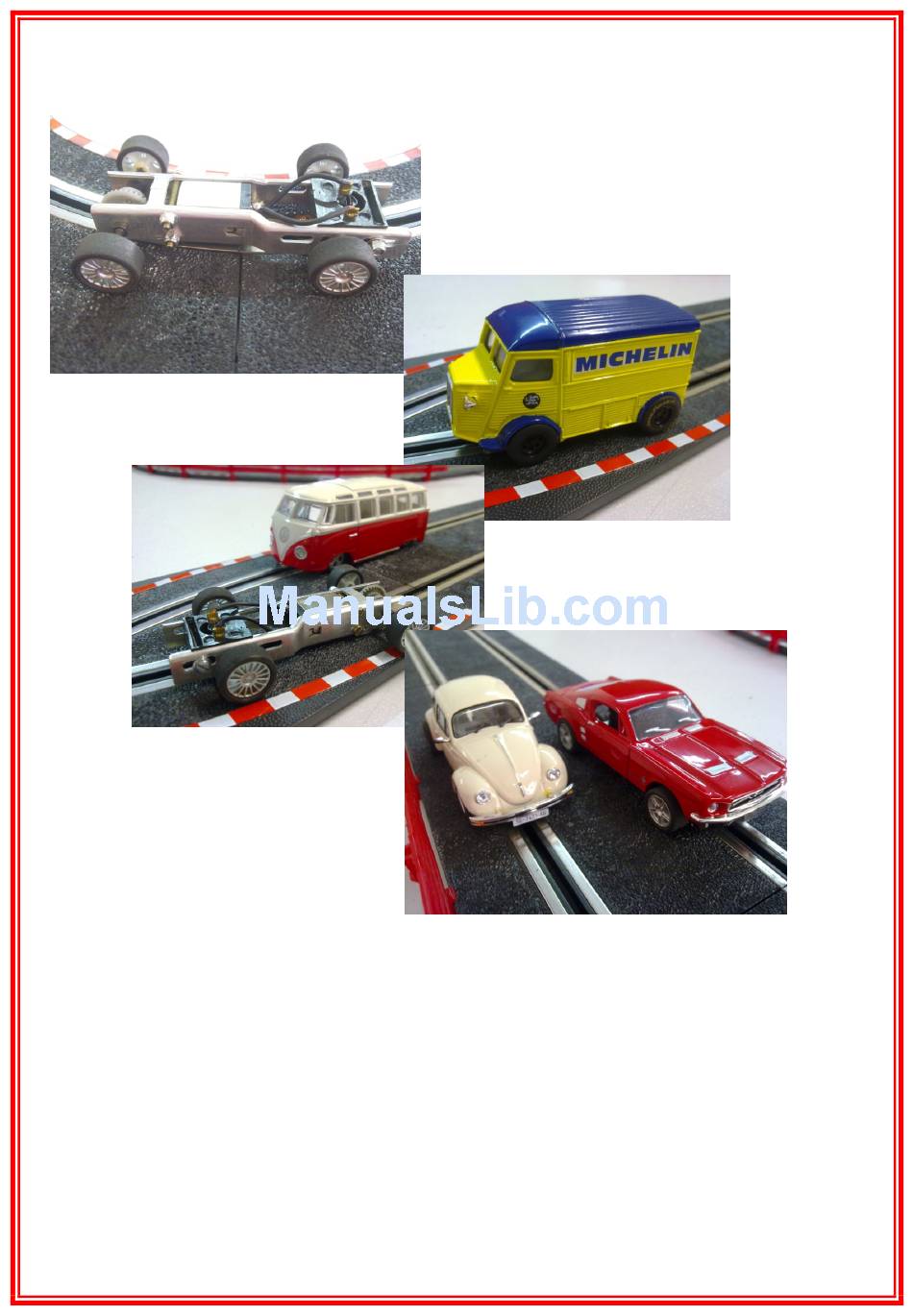

- Page 2 CHASIS SLOT KIT 1:43 “Powered by SCX”. With a TST43A chassis you can adapt the majority of 1:43 scale static vehicles or similar to slot, either plastic, resin or metal ones, and enjoy driving them to slot tracks. It is not a race chassis, although depending of its adaptation can have high performance.
- Page 3 TECNO HI-TECH SLOT DESIGN SLOT Remove the static vehicle chassis, freeing the body: 2- Insert the transmission gear on the rear axle (with central engraved) so that the slot of the transmission gear is centered on the axle: 3- Chassis configuration: - make a pre-assembly to determine the length of the frame (position of the front axle) with the following parts: chassis, guide support, rear axle with wheels and bearings, and front axle &...
- Page 4 TECNO HI-TECH SLOT DESIGN SLOT - the guide support piece has 3 channels that allow for different placement options and the screw shaft. Depending on the body you want to adapt, the front channel can be opened sideways if necessary and in small vehicles can entirely eliminated: front channel cutted front channel...
- Page 5 TECNO HI-TECH SLOT DESIGN SLOT 6- Motor set-up: - It could be that you have a problem with the braiz point/cable on the motor if you mount the chassis. In this case you have to modify but this has no effect to the running characteristic from the motor: - Insert the pinion on the engine, leaving a gap of 0.5 mm: 0,5mm...
- Page 6 TECNO HI-TECH SLOT DESIGN SLOT 8- Insert the centering of the engine: 9- Insert the two rivets to the support guide: 10- Insert the guide with fitted braids to the support: p. 5-9...
- Page 7 TECNO HI-TECH SLOT DESIGN SLOT 11- Insert the bearings in the traction axle, the short one at side of the transmission gear and the long on the other side: Insert the rear axle in the right frame: 13- Insert the engine in the previous set so that the vents are as the next photo: p.
- Page 8 TECNO HI-TECH SLOT DESIGN SLOT 14- Insert the left frame, mount the 2 screws M2x20 with nuts and mount the magnet by removing a bit of assembly. Finish tightening the nuts: 15- Adjusting the front axle: mount the guide support obtained in paragraph 10 to the chassis with the screw M2x25, the 2 washers, self-locking nut, the front axle, wheel spacers and wheels.
- Page 9 TECNO HI-TECH SLOT DESIGN SLOT 17- Final Adjustment: finish tightening the set screws and check that the traction axle turns smoothly. If you have had to cut the axles and the end engraves had disappeared, we recommend to put a drop of two-components glue before assembling the wheels. Driving the final kit on the track to checking it.
- Page 10 TECNO HI-TECH SLOT DESIGN SLOT Additional comments: 1- In some cases, to improve esthetics of the finished vehicle, there is the possibility of inserting part of the static vehicle wheel rim inside the wheel rim provided in the kit: p. 9-9...
