- Page 1 Feederline Equalizers FFE-*-100*/RP-R and FFE-HSG/86* Installation Instructions 539924-001 Revision B...
- Page 2 ARRIS Enterprises, Inc. (“ARRIS”). ARRIS reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of ARRIS to provide notification of such revision or change.
- Page 3 I n s t a l l a t i o n I n s t r u c t i o n s ARRIS Feederline Equalizers are passive feederline cable equalizers used in Cable Access television (CATV) distribution systems. Equalizer models FFE-8-86*, FFE-8-75*, and FFE- HSG/86* compensate for feeder cable slope and thus provide improved “window”...

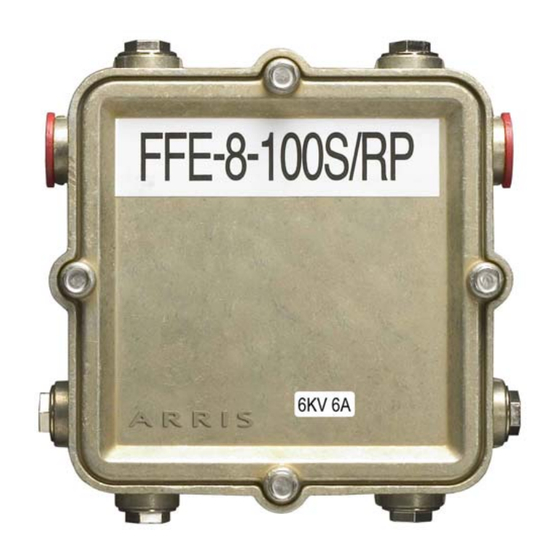

- Page 4 Figure 1 FFE-8-100S/RP-R Figure 2 FFE-12-100S/RP-R FFE Feederline Equalizers 539924-001 Rev B...
-
Page 5: Preparing The Housing
All FFEs include sub-split filters for two-way systems. You can use any value equalizer necessary to suit system applications. The return-path signals pass with minimal insertion loss and are not affected by the FFE*. The FFEs also pass up to 12 A(rms) AC power to other active units in use beyond its location. - Page 6 Connectors with integral center conductor pins possessing a nominal diameter of 0.067 inches are recommended. Figure 4 Pin connector 1.65" Max. 1.50" Min. Tighten the center conductor seizure screw from 15 to 20 in/lbs. Figure 5 Properly Installed center-conductor 1.65" Max. 1.50"...
- Page 7 Mounting the FFE* CAUTION ARRIS equalizers are designed for an operating environment of -40°C to +60°C. The Mil Spec Hdbk 217 states that a 9°C increase in device operating environments will reduce the product’s reliability (and projected lifetime) by 50%.
- Page 8 Changing the Plug-in Equalizer Refer to Table 1 for the correct match of FFE* and plug in equalizer board, model SFE*. If you need to adjust tilt, change the SFE* value. For optimum performance, use the equalizers that match the system frequency. To replace the existing equalizer: Remove the bottom plate assembly by loosening the four captive bolts and separating it from the housing.
-
Page 9: Specifications
Specifications are valid over the given bandpass and operating temperature range of 40º F to +140º F (40º C to +60º C). Specifications are stated worst case unless otherwise noted, and are subject to change. Refer to the ARRIS catalog at http://www.arrisi.com/products/index.asp or contact your account representative for the latest specifications. -
Page 10: If You Need Help
Enterprises, Inc. (“ARRIS”). ARRIS reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of ARRIS to For additional technical support contact information, visit provide notification of such revision or change.
