Stratus Power

Installation Instructions

This document and the information
APPAREO SYSTEMS, LLC
contained herein are the property of
Appareo Systems, LLC and are
FARGO, NORTH DAKOTA 58102
confidential. They may not be disseminated
or redistributed without the written
Stratus Power Installation Instructions
permission of Appareo Systems, LLC
Document Number
Document Type
Last Revised
Rev
Sheet
600840-000041
Certification
15 December 2016
1.0
1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stratus Power and is the answer not in the manual?

Questions and answers

Related Manuals for Appareo Stratus Power

Summary of Contents for Appareo Stratus Power

  • Page 1: Installation Instructions

    Installation Instructions This document and the information APPAREO SYSTEMS, LLC contained herein are the property of Appareo Systems, LLC and are FARGO, NORTH DAKOTA 58102 confidential. They may not be disseminated or redistributed without the written Stratus Power Installation Instructions...

  • Page 2: Last Revised: December

    Appareo Systems, LLC, 1830 NDSU Research Circle North, Fargo, ND 58102 USA. Visit us on the web at www.appareo.com. Questions? E-mail us at support@appareo.com. The most recent version of this document and other Stratus Power documentation can be found at the Appareo Dealer Portal at appareo.com/dealer-portal or appareo.com/resources.

  • Page 3: Table Of Contents

    List of Figures Figure 1: Mounting location ......................7 Figure 2: Installing Stratus Power....................8 Figure 3: Harness ........................9 Figure 4: Back of Stratus Power....................9 List of Tables Table 1: TSO compliance......................5 Table 2: TSO deviations......................5 Table 3: Equipment specifications....................

  • Page 4: Related Documentation

    600840-000041 Stratus Power Installation Instructions Rev. 1.0 Last Revised: December 15, 2016 Record of Revision Revision Change Description Revision Date Inserted By Number Initial Release 12/15/16 Related Documentation Document Number Title Appareo 600845-000028 Stratus Power Maintenance Manual Acceptable Methods, Techniques, and Practices - Aircraft FAA AC 43.13-1B...

  • Page 5: About Stratus Power

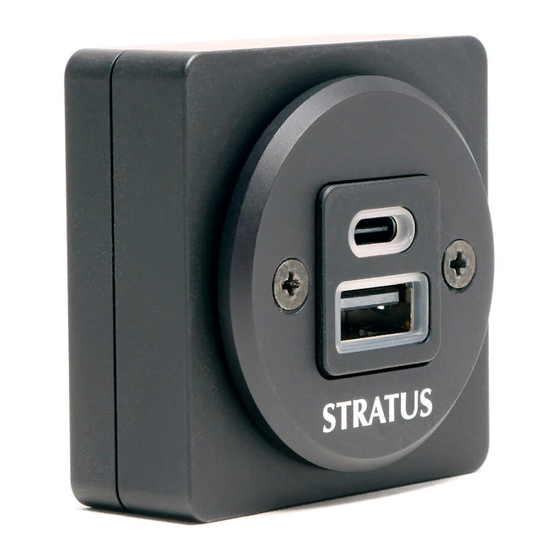

    Last Revised: December 15, 2016 1. About Stratus Power 1.1. Overview Stratus Power is a dual 2.1 amp USB charging hub used to power and charge electronic devices in the cockpit. 1.2. TSO compliance Stratus Power is compliant with the following Technical Standard Order:...

  • Page 6: Required Tools

    251015-000116 Table 5: Supplied hardware 1.8. Unpacking/inspection requirements When unpacking Stratus Power, visually inspect for any damage to the unit or missing components. If damage or missing parts are present, contact Appareo. 1.9. Limitations for installation This article meets the minimum performance and quality control standards required by a technical standard order (TSO).

  • Page 7: Mounting Stratus Power

    Figure 1. Then, cut the notch in the top of the hole. Figure 1: Mounting location 4. Place the Stratus Power unit behind the panel and align the front of the unit with the hole. Place the panel cover over the front of the unit and secure with screws.

  • Page 8: Wiring Stratus Power

    The installer must supply 20-24 gauge wiring and install it in accordance with FAA AC 43.13-1B and AC 43.13-2B. Wire length and routing will vary by installation. The installer must also supply a circuit protective device for use with Stratus Power. Use a 2A breaker for 28V aircraft and a 4A breaker for 14V aircraft.

  • Page 9: Figure 3: Harness

    Measure the voltage across the two wires using a multimeter. The voltage reading should be equal to your aircraft power. d. Disconnect aircraft power. 3. Connect the power receptacle into the header on the back of Stratus Power. Figure 4: Back of Stratus Power Page 9 of 12...

  • Page 10: Troubleshooting

    600840-000041 Stratus Power Installation Instructions Rev. 1.0 Last Revised: December 15, 2016 4. Connect aircraft power and ensure that the breaker is pushed in. 5. Verify the voltage output of Stratus Power before connecting any devices. 4. Troubleshooting Problem Troubleshooting Steps...
  • Page 11 600840-000041 Stratus Power Installation Instructions Rev. 1.0 Last Revised: December 15, 2016 Appendix A Nomenclature: Stratus Power Part number: 153510-000040 TSO number: TSO-C71 Manufacturer: Appareo Systems Address: 1830 NDSU Research Circle North, Fargo, ND 58102, USA DO-160G Conditions Description of tests conducted...

  • Page 12: Table 7: Do-160G Tests Performed

    600840-000041 Stratus Power Installation Instructions Rev. 1.0 Last Revised: December 15, 2016 Equipment tested to Category U. Sine-on-Random for 8.8.2 Category U Curve G. Equipment identified as Category X, no test Explosive Atmosphere performed. Equipment identified as Category X, no test Waterproofness 10.0...
