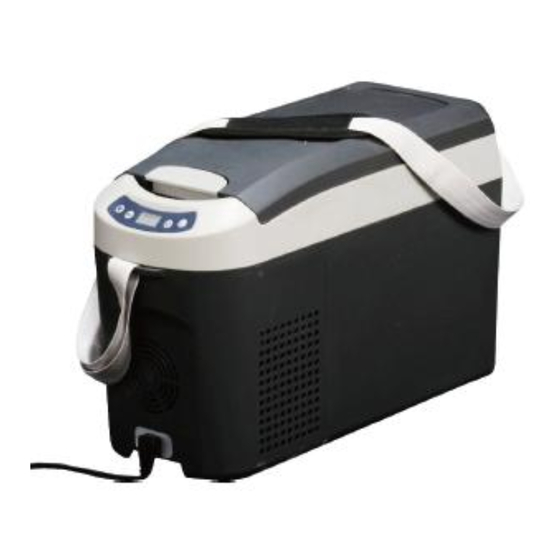

- Page 2 Caution: Read the instructions and safety warnings carefully before using the refrigerator. DESCRIPTION IB15 /18 are portable refrigerators that can be used with most 12-24 VDC power sources (including vehicles and trucks). They can be used both as a refrigerator or a freezer.
-
Page 3: Data Sheet
DATA SHEET MODEL IB15 IB18 External dimensions (L x W x H ) 565x235x360 (mm) 565x235x405 (mm) Net weight 8.5 Kg 9.5 Kg Power Usage 35 W 35 W Supply voltage DC 12-24 V DC 12-24 V Internal Protection Fuse 10A... -
Page 4: Installation
INSTALLATION Place the refrigerator on a dry, flat surface. Do not use the refrigerator in areas exposed to the elements. The refrigerator requires good ventilation. Leave a space of at least 15 cm around all sides. Avoid placing the refrigerator near a heat source, for example, a cooker or radiator. Avoid exposing the fridge to direct sunlight. - Page 5 CONTROL PANEL DESCRIPTION ON / OFF Button SET Battery protection Button LCD Display Temperature decrease or scroll menu button 5 Temperature increase or scroll menu button To increase the temperature of the cooling compartment press key 5 until the desired value appears on the display.
- Page 6 The refrigerator includes a settings menu, from where it is possible to modify values and thresholds set by the manufacturer, more specifically: 1. (OFS) OFF-SET value 2. (F-C) Fahrenheit or Centigrade settings To access the menu, press, with the refrigerator powered but off, keys 2-4-5 at the same time for a few seconds.
-
Page 7: Off-Set Value
OFF-SET VALUE The OFF-SET value refers to the difference between the temperature inside the cooling compartment and the temperature set and presented on the display. It is possible to set three different OFF-SET levels dependent on the temperature set on the display. The recommended OFF-SET value is 2°C, in order to achieve a temperature within the cooling compartment which corresponds with the temperature presented on the display. -
Page 8: Maintenance
Any operation faults will be displayed after 90 seconds and will be presented on the display with the following codes: Insufficient voltage (Voltage below cut-out value) : The fan is using more than 0.6A: The compressor rotor is blocked: The compressor is not able to operate at the minimum number of revolutions/rpm: (1850 rpm) The temperature in the compressor bay is too high : The thermostat has short-circuited or is not correctly connected to the control...
