Shenzhen TZONE Digital Technology CO.,LTD.
Items
Keywords
Abstract
TZ-AVL19
, GPRS, RFID, C
Vehicle Terminal
Explain the AVL_19 using method
TZ-AVL19 user manual
---User Manual
Contents
ommands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TZ-AVL19 and is the answer not in the manual?

Questions and answers

Summary of Contents for Shenzhen TZONE Digital Technology TZ-AVL19

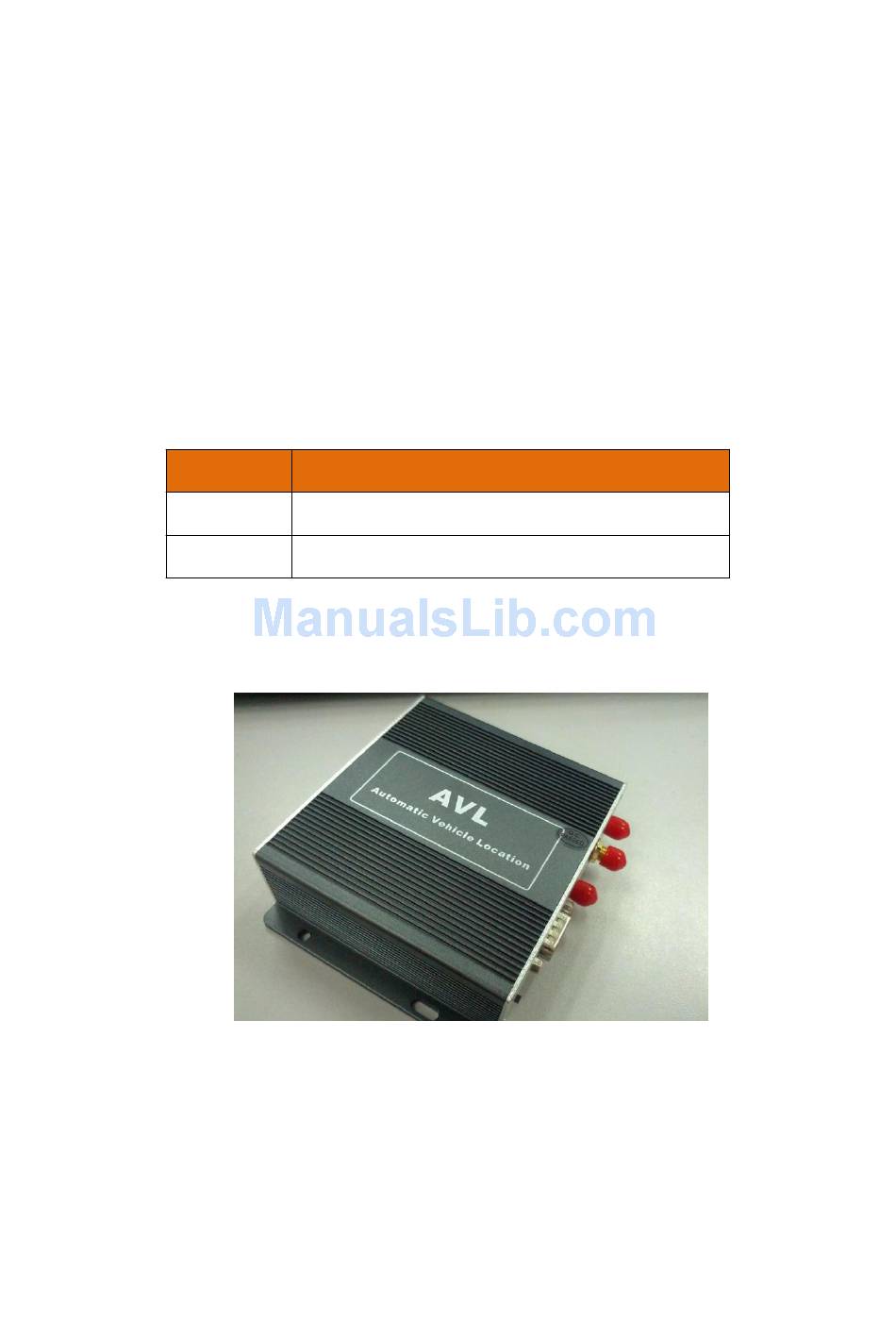

  • Page 1 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual TZ-AVL19 ---User Manual Items Contents ommands , GPRS, RFID, C Keywords Vehicle Terminal Abstract Explain the AVL_19 using method...

  • Page 2: Table Of Contents

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual Content 1. Product Overview......................... 3 1.1. Key Features.......................... 3 1.2. Specification.......................... 4 1.3. Outside feature........................5 1.3.1. Socket and Switch......................5 1.3.2. I/O ports.......................... 6 1.3.3. LED Indicators........................7 1.3.4. Connect to the external peripheral by Serial Port............8 1.3.5.

  • Page 3: Product Overview

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 1. Product Overview AVL19 is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, AVL19 has good sensitivity and stable performance. It can get accurate GPS fix even in remote places.

  • Page 4: Specification

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual Support for multiple frequency RFID card including 125 KHz or 13.56 MHz or UHF or 2.4 GHz or 433MHz Support external various RFID reader as 125 KHz or 13.56 MHz or UHF or 13.56 G reader...

  • Page 5: Outside Feature

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual Hot Start 1 second Warm Start 38 seconds Cold Start 42 seconds Exterior GSM antenna Receive GSM signal better Exterior GPS antenna Receive GPS signal better RFID Antenna socket Connect Exterior RFID Antenna...

  • Page 6: I/O Ports

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual Hardware Function A. USB Port Support "USB Converter” to update firmware B. I/O Sockets Expanding function, as below C. Serial port 1 Connect to the external peripheral C. Serial port 2 Connect to the external peripheral D.

  • Page 7: Led Indicators

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual I/O 06 Digital input 2 I/O 07 Digital input 1 I/O 08 Button C I/O 09 Button B I/O 10 Button A I/O 11 SOS Button I/O 12 CAN_L I/O 13 VCC(+12)

  • Page 8: Connect To The External Peripheral By Serial Port

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual light 0.1s dark 0.3s (flash five Receive A SMS times) light 0.1s dark 1s Connect to GPRS When AVL is in work mode, if GSM signal is in good state, the green LED will...

  • Page 9: Detect Car On/Off

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 1.3.5. Detect Car ON/OFF...

  • Page 10: Connect Relay To Control The Car Oil/Power (Port 21/22/23)

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 1.3.6. Connect Relay to control the Car Oil/Power (Port 21/22/23)

  • Page 11: Connect To The Fuel Sensor To Detect The Fuel.(Port 17/18)

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 1.3.7. Connect fuel sensor to detect the fuel.(port 17/18) Our AVL can get the voltage by the AD collection and according to the voltage change to know the fuel level in the tank. As the fuel tank in different car is different, you need to find out the different relation between the voltage and fuel.
  • Page 12 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual Picture 1 (How to connection) Picture 2 (About the fuel meter)

  • Page 13: How To Use The Product

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 2. How to use the Product 2.1. Prophase to prepare Step 1: Inset a SIM card. Make sure the SIM card can communicate with other cards via SMS and call, and before installing the SIM card to the holder, please use a mobile phone to empty the SMS storage of the card Step 2: Connect GSM Antenna and GPS Antenna to AVL unit.

  • Page 14: How To Use Command By Sms

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual (GSM antenna) When you connect the GSM and GPS antenna, please make sure the connection is firm. Step 3: Connect the AVL to DC12V exterior power. Please refer to above introduction about I/O ports: Port 1 to negative; Port 12 to positive.

  • Page 15: Use The Gprs Function

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual @@@@@@: the new password For example: *000000,001,123456# After you send the SMS command to device, it will reply to your mobile phone: Receive:’001’OK *000000,001,123456# 2.2.1.GPRS function Notes: First of all, make sure the SIM card inserted to the device and have the GPRS function.

  • Page 16: Set The Sleep Mode

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 2.2.2. Set the sleep mode Use commands 046 and 047 to configure AVL19. Like : *$$$$$$,046,1,300,30,1100000# Note: Press SOS button , Trigger Input1 and Input2, Calling, Send SMS, vibration can wake up the machine 2.2.3.

  • Page 17: Set Double-Talk Function

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 2.3.5 Set two-way conversation function Two-way conversation function allows user to call the AVL19 and talk with the driver or monitor the voice on the bus, or the AVL19 can call the user.

  • Page 18: Gprs Protocol

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 0x43 Into Geo-fence Alarm Button A is pressed 0x49 0x48 Button B is pressed Button C is pressed 0x47 0x50 IO-1 Close —digital input 1 closed 0x51 IO-1 Open —digital input 1 opened 0x52 IO-2 Close —digital input 2 closed...
  • Page 19 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual Set the time *$$$$$$,002,X,Y# (Max Digital) intervals of =0, Stop send position SMS position notice (default) =[1,60000] Time interval The Position SMS (Unit: mins) (Max will be sent to the Digital) preset SOS phone =[1,999] times send SMS number.
  • Page 20 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual over speed alarm Y is the time period over GPRS data will speed [1,999], unit is second be sent to the Z=[10,360], ( The time Preset Server. interval to send speed alarm) unit is second.
  • Page 21 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual average of two minutes to collect) F=0, ADA Normal AD collect (default) F=1, ADA Oil collect.(The average of two minutes to collect) The difference of two method Normal AD collect will output the AD value...
  • Page 22 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual *$$$$$$,011,APN,Username, APN : APN string (must < 28 Password# chars) APN,Username,Pass word (default: cmnet) User name: Your username (must < 28 chars) Password: Your password (must < 28 chars) * If there is no username or password, then left it blank.
  • Page 23 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual Set DNS *$$$$$$,014, X,DNS1,DNS2# X=0 Disable the DN(default) X=1 Disable the DNS Enable the DNS DNS is the domain name server , xxx.xxx.xxx.xxx Set IP Address *$$$$$$,015,X,IP/org,PORT# X=0: & port number IP: xxx.xxx.xxx.xxx...
  • Page 24 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual X=C means the output port 3 X=D means the output port 4 Y=0, Out port is low (the oil of circuit is restore) (default) Y=1, Out port is high ( the oil...
  • Page 25 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual Detect the engine *$$$$$$,047,X,Y# Disable sleep unction (default) Enable sleep Function Y=0, port7 as detection Y=1, port6 as detection...
  • Page 26 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual Set Call Number A *$$$$$$,103,S,Number# This command set the function for Button A. S=0, If the button trigger, send out one GPRS. S=1, If the button trigger, it will call the number. For example:...
  • Page 27 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual command set (default:0) Set OutA Change *$$$$$$,117,A,B,C,D# A=[0,999]km/h , the threshold of speed. (default:50) B=[0,60000] ms, the interval of OutA off (default:500) C=[0,60000] ms, the interval of OutA on (default:500) D=[0,99], the times of OutA...
  • Page 28 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual Roaming sending X=0 Disable this function *$$$$$$,12,X,Y,Z# GPRS data (Default) X=1 Activate this function. interval time Y=[0,999] Roaming time interval (Unit: sec) Z : Network ID If the machine in roaming, in...
  • Page 29 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 6: RD03 9: UHF102 Device (ChengXinDevice) Note: Only one of COM1 or COM2 can be used for people counting. If COM1 is used, COM2 will disable. If want to use COM2, must close COM1 people countingfunction.
  • Page 30 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual Choose tag type *$$$$$$,138,X# 0: Tag01/Tag02(default) 1: Tag03 2: Tag04 3: Tag201(the data from TAG201 has 12 bytes) 4: Tag201(the triggered data has 12 bytes, and the heart-beat data has 7 bytes) 5: TT01 6: 2.4G Lock...
  • Page 31 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual Set functions for *$$$$$$,140,X,ID# X=0: RD03 AVL19 send the all the tag ID it receives to the server. X=1:AVL19will send Tag201 which has been triggered by the RD03 that user set ID before.
  • Page 32 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 142 Set Tag06/Tag06B *$$$$$$,142,X,Y,Temp_H,Temp X=0, Disable this function temperature and _L,RH_H,RH_L# (Default) humidity over limit local alarm function Tag itself can preset (by factory) Temp_H, Temp_L, RH_H, RH_L: X=2: Alarm according to the preset of tag.
  • Page 33 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 143 Set the battery low *$$$$$$,143,X,Y,Z# X=0,Disable this voltage local alarm function (Default) function X=1, Activate this function, Y: Select OUTPUT port (connect to buzzer); 1: output port 1(default); 2: output port 2;...
  • Page 34 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual Control picture data *$$$$$$,202, X# X=[1,6],[Default:4]picture data sending packet sending packet number number Camera *$$$$$$,203,X,Y# X= [1,999]/Min Picture Time Interval (default:10) taking pictures Y= [0,999]/Times The number of photographs (default:0)
  • Page 35 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual X=0: ASCII(default)； Set the format of *$$$$$$,204, X# GPRS data that X=1: HEX X=2: appear at the log HEX+ASCII Take picture *$$$$$$,210,X# X=1, camera 1 take picture X=2, camera 2 take picture...

  • Page 36: Update The Firmware Of The Avl

    Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual OTA .OTA @P$$$$$$,A# A=0: update the Program and the configuration: A=1: only update the Program; A=2: only update the configuration; 6. Update the firmware of the AVL 1) Install USB cable driver A.
  • Page 37 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 2) Turn on AVL device 3) Build a New Hyper terminal connect, fill the name, example as IAP_DL 4) Choose the Com Port that the USB Cable used...
  • Page 38 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 5) Set up all the option as shown in the following picture 6) Into Configure Mode...
  • Page 39 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 7) Turn Off AVL device ① Keep the SOS button is pressed and Turn on Power. All indicators of the device will keep light at same time, (all of the device’s indicator will be keep...
  • Page 40 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual ③ Then choose Send file (Send-> Send File)at soon as possible, because the update mode will keep for 92 seconds, if out of this time update will not be processed successfully. 8) Choose the firmware that you want to Update；...
  • Page 41 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 9) Press Send button, will display a New Windows that show the update process. 10) When finish Update, will appear "Programming Completed Successfully!", GSM and GPS light is always on, press Keypad 2 or press the Button C end the...
  • Page 42 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual 11) Turn On AVL19 again.(at this times the firmware will load the parameter to the unit ). Then the firmware updates finished. 7. Worldwide APN (Access Point Name) List...
  • Page 43 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual...
  • Page 44 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual...
  • Page 45 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual...
  • Page 46 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual...
  • Page 47 Shenzhen TZONE Digital Technology CO.,LTD. TZ-AVL19 user manual...
