Summary of Contents for Tzone TZ-Tag06

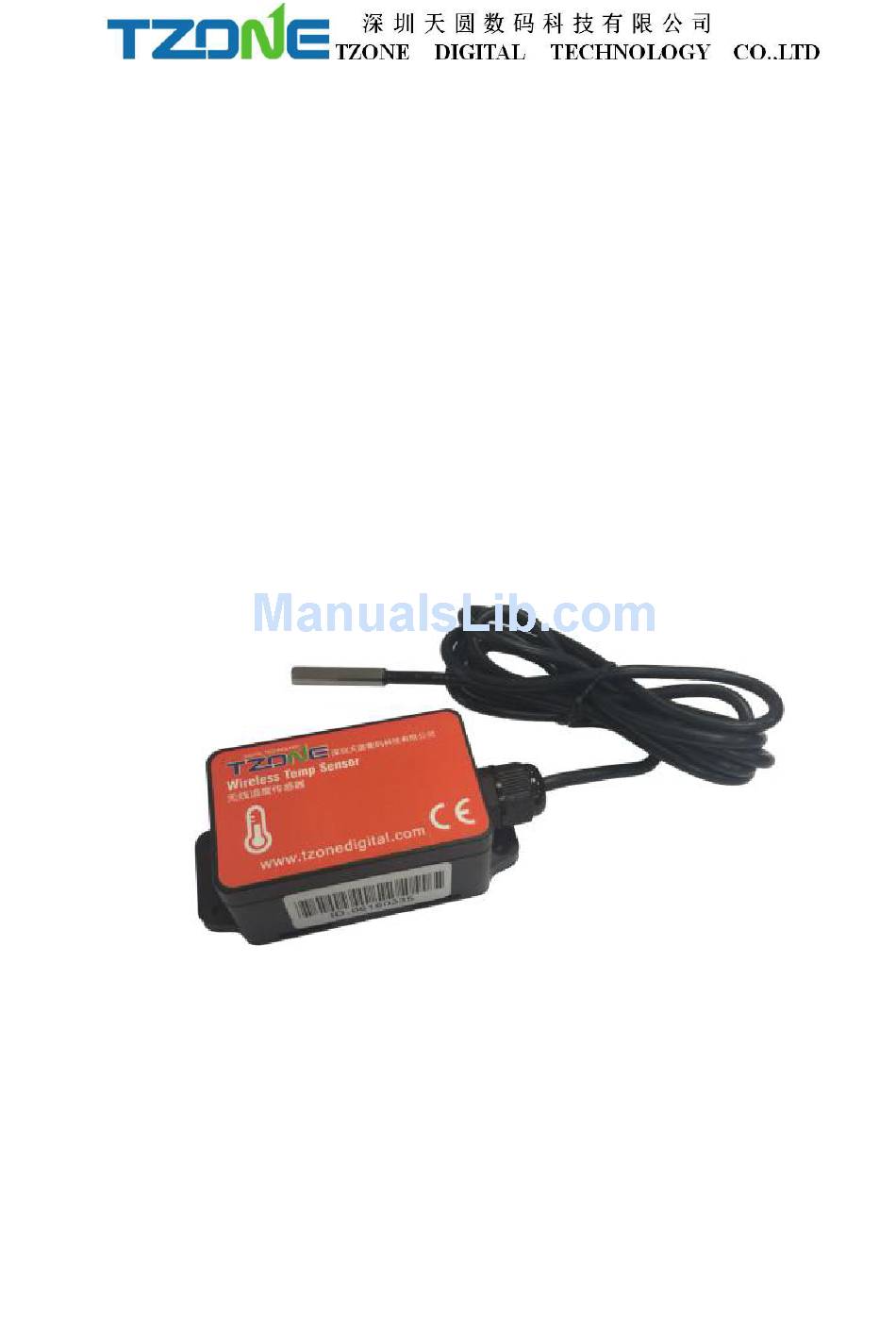

- Page 1 TZ-Tag06 ---User manual...
- Page 2 1 Description TZ-Tag06 temperature transmitter is a new designed high-quality wireless acquisition terminal that we developed. Taking a full consideration of bad environment and applying situation in the field, solved successfully some kind of shortage that existed in similar products. With long data transmission distance (800m), small volume (63mm*38mm*31mm) and long life battery (3 years’...
- Page 3 4. The transmitter supports 3 working module: Normal working module,low voltage module and temperature overrun module. To better track the ambient temperature change, the data collecting time is different in each module. 5. 1200mAh/3.6V battery built-in, long time standby and stable performance. The electricity is less than 1uA when the sleep mode.
- Page 4 5 Operating Model Operating Model Operating Condition Transmitter acquires temperature according to the Normal Model settled acquisition interval and then start the module 433 and send out. Transmitter Voltage lower than 2.2V will acquire and send data per hour. Low-voltage Model At this point the power supply of transmitter will almost run out and users should change the machine in time Transmitter can acquire and send the data with a little...
- Page 5 （2）HOOk&LOOP：Fix the TAG with an object through the HOOk&LOOP 7 Compatible application TZ-Tag06 as the send-port of data needs to be used with the machine of RD01\RD04\RD05\AVL11\AVL19 and so on from our company. Customers can check the user's manual of these machines or contact our staff.
