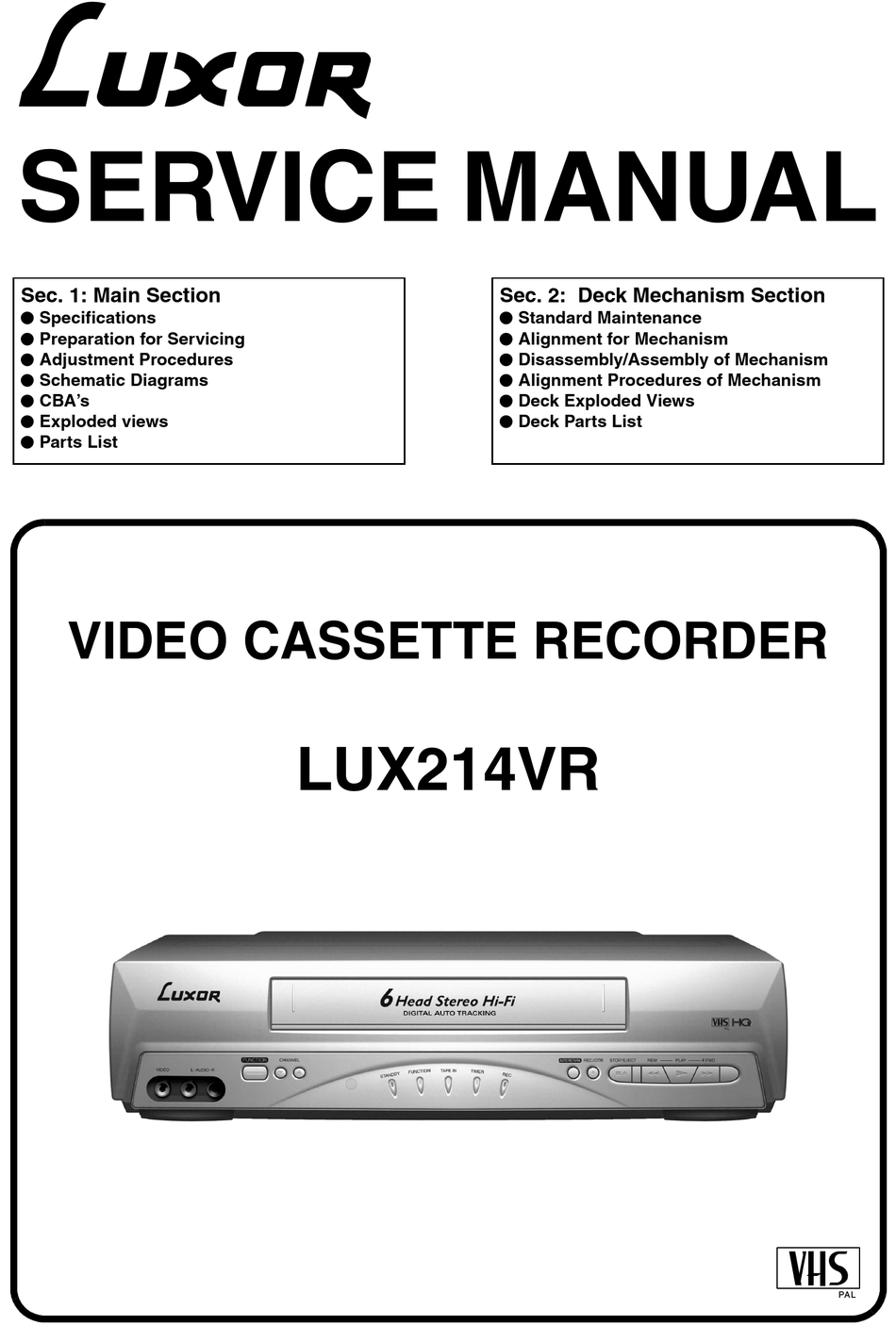

SERVICE MANUAL
Sec. 1: Main Section
I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA's
I Exploded views
I Parts List
VIDEO CASSETTE RECORDER
LUX214VR
Sec. 2: Deck Mechanism Section
I Standard Maintenance
I Alignment for Mechanism
I Disassembly/Assembly of Mechanism
I Alignment Procedures of Mechanism
I Deck Exploded Views
I Deck Parts List
PAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUX214VR and is the answer not in the manual?

Questions and answers

Related Manuals for Luxor LUX214VR

Summary of Contents for Luxor LUX214VR

  • Page 1 I Preparation for Servicing I Alignment for Mechanism I Adjustment Procedures I Disassembly/Assembly of Mechanism I Schematic Diagrams I Alignment Procedures of Mechanism I CBA’s I Deck Exploded Views I Exploded views I Deck Parts List I Parts List VIDEO CASSETTE RECORDER LUX214VR...

  • Page 2: Table Of Contents

    MAIN SECTION VIDEO CASSETTE RECORDER LUX214VR Sec. 1: Main Section I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Parts List TABLE OF CONTENTS Specifications ............... . . 1-1-1 Important Safety Precautions .

  • Page 3: Specifications

    SPECIFICATIONS Description Unit Minimum Nominal Maximum Remark 1. Video 1-1. Video Output (PB) Vp-p FL6A 1-2. Video Output (R/P) Vp-p SP Mode, 1-3. Video S/N Y (R/P) W/O Burst 1-4. Video Color S/N AM (R/P) SP Mode 1-5. Video Color S/N PM (R/P) SP Mode 1-6.

  • Page 4: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Product Safety Notice J. Be careful that foreign objects (screws, solder droplets, etc.) do not remain inside the set. Some electrical and mechanical parts have special K. Crimp type wire connector safety-related characteristics which are often not evi- The power transformer uses crimp type connectors dent from visual inspection, nor can the protection they which connect the power cord and the primary side...
  • Page 5 Safety Check after Servicing Chassis or Secondary Conductor Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and wires have been returned to their original posi- Primary Circuit Terminals tions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards.

  • Page 6: Standard Notes For Servicing

    STANDARD NOTES FOR SERVICING Circuit Board Indications Pb (Lead) Free Solder When soldering, be sure to use the Pb free solder. a. The output pin of the 3 pin Regulator ICs is indi- cated as shown. How to Remove / Install Flat Pack-IC Top View Bottom View 1.
  • Page 7 3. The flat pack-IC on the CBA is affixed with glue, so (3) Bottom of the flat pack-IC is fixed with glue to the be careful not to break or damage the foil of each CBA; when removing entire flat pack-IC, first apply pin or the solder lands under the IC when removing soldering iron to center of the flat pack-IC and heat up.
  • Page 8 Instructions for Handling Semi-conductors Electrostatic breakdown of the semi-conductors may Fine Tip Soldering Iron occur due to a potential difference caused by electro- static charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1MΩ) that is prop- erly grounded to remove any static electricity that may be charged on the body.

  • Page 9: Preparation For Servicing

    PREPARATION FOR SERVICING How to Enter the Service Mode About Optical Sensors Caution: An optical sensor system is used for the Tape Start and End Sensors on this equipment. Carefully read and follow the instructions below. Otherwise the unit may operate erratically. What to do for preparation Insert a tape into the Deck Mechanism Assembly and press the PLAY button.

  • Page 10: Cabinet Disassembly Instructions

    CABINET DISASSEMBLY INSTRUCTIONS 1. Disassembly Flowchart (1): Identification (location) No. of parts in the figures (2): Name of the part This flowchart indicates the disassembly steps to gain (3): Figure Number for reference access to item(s) to be serviced. When reassembling, (4): Identification of parts to be removed, unhooked, follow the steps in reverse order.
  • Page 11 (L-2) [4] Jack CBA (L-2) (S-5) Desolder [2] Front Assembly Fig. D4 (L-1) Fig. D2 (S-2) (S-2) (S-3) (S-2) (S-3) (S-4) [3]VCR Chassis (S-3) Unit (S-2) Fig. D3 1-5-2 HG450DC...
  • Page 12 [7] Cylinder Shield Cylinder Assembly FE Head (S-7) SW507 ACE Head LD-SW Assembly [6] Main CBA [5] Deck [5] Deck Assembly [8] Jack Board Assembly (L-3) Cam Gear Hole Shaft Hole LD-SW [6] Main CBA [6] Main CBA (S-6) Fig. D6 (S-6) TOP VIEW From...

  • Page 13: Electrical Adjustment Instructions

    ELECTRICAL ADJUSTMENT INSTRUCTIONS General Note: "CBA" is an abbreviation for Head Switching Position Adjustment "Circuit Board Assembly." Purpose: NOTE: To determine the Head Switching position during 1.Electrical adjustments are required after replacing playback. circuit components and certain mechanical parts. Symptom of Misadjustment: It is important to do these adjustments only after all repairs and replacements have been com- May cause Head Switching noise or vertical jitter...

  • Page 14: Block Diagrams

    BLOCK DIAGRAMS Servo/System Control Block Diagram 1-7-1 HG410BLS...
  • Page 15 Video Block Diagram 1-7-2 HG410BLV...
  • Page 16 Audio Block Diagram 1-7-3 HG410BLA...
  • Page 17 Hi-Fi Audio Block Diagram 1-7-4 HG410BLH...
  • Page 18 Power Supply Block Diagram 1-7-5 HG410BLP...

  • Page 19: Function Indicator Symbols

    FUNCTION INDICATOR SYMBOLS Note: The following symbols will appear on the indicator panel to indicate the current mode or operation of the VCR. On-screen modes will also be momentarily displayed on the tv screen when you press the operation buttons. Display panel TAPE IN "...
  • Page 20 TV screen Note: OSD for mechanical error will be displayed for 5 sec. after the mechanical error occurs. When reel and capstan mechanism is not functioning When the drum is not working properly correctly Fig. 1 Fig. 4 When tape loading mechanism is not functioning cor- P-ON Power safety detection rectly Fig.

  • Page 21: Schematic Diagrams / Cba's And Test Points

    SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS Standard Notes Notes: WARNING 1. Do not use the part number shown on these draw- ings for ordering. The correct part number is shown Many electrical and mechanical parts in this chassis in the parts list, and may be slightly different or have special characteristics.
  • Page 22 LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. 2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F001) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply.
  • Page 23 Main 1/6 Schematic Diagram 1-8-3 1-8-4 HG410SCM1...
  • Page 24 Main 2/6 & Sensor Schematic Diagrams 1-8-5 1-8-6 HG410SCM2...
  • Page 25 Main 3/6 Schematic Diagram 1-8-7 1-8-8 HG410SCM3...
  • Page 26 Main 4/6, Jack & Sub Jack Schematic Diagrams 1-8-9 1-8-10 HG410SCM4...
  • Page 27 Main 5/6 Schematic Diagram CAUTION ! CAUTION ! For continued protection against fire hazard, Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. replace only with the same type fuse. If Main Fuse (F001) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply.
  • Page 28 Main 6/6 Schematic Diagram 1-8-13 1-8-14 HG410SCM6...
  • Page 29 AFV Schematic Diagram 1-8-15 1-8-16 HG410SCAFV...
  • Page 30 Main CBA Top View CAUTION ! BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER CAUTION ! For continued protection against fire hazard, SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED. Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. replace only with the same type fuse.
  • Page 31 Main CBA Bottom View CAUTION ! BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER CAUTION ! For continued protection against fire hazard, SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED. Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. replace only with the same type fuse.
  • Page 32 Jack CBA Top View Jack CBA Bottom View 1-8-21 1-8-22 BHG470F01014C...
  • Page 33 AFV CBA Top View AFV CBA Bottom View BHC400F01093 Sub Jack CBA Top View Sub Jack CBA Bottom View BHG470F01014B 1-8-23 1-8-24...

  • Page 34: Waveforms

    WAVEFORMS TP301 UPPER TP502 LOWER C-PB 10mV x 10 RF-SW 0.5V x 10 UPPER TP502 LOWER V-OUT 0.1V x 10 RF-SW 0.5V x 10 50µs V-OUT E-E 10µs 50mV x 10 1-9-1 U29WFPAL...

  • Page 35: Wiring Diagrams

    WIRING DIAGRAM 1-10-1 HG410WI...

  • Page 36: Ic Pin Function Descriptions

    IC PIN FUNCTION DESCRIPTIONS IC501( SERVO / SYSTEM CONTROL IC ) Signal Active Function Name Level “H” ≥ 4.5V, “L” ≤ 1.0V 24 OUT CAS-LED “CASSETTE” LED Signal Active Function Signal Output Name Level 25 OUT TIMER- “TIMER” LED Signal Input Signal from Pin IN SC2-IN Output...
  • Page 37 Signal Active Signal Active Function Function Name Level Name Level OSD-V- OSD Video Signal LM-FWD/ Loading Motor H/L/ 52 OUT 81 OUT Output Control Signal Hi-z OSDVcc OSDVcc N.U. Not Used LPF Connected Audio Mute Control 83 OUT A-MUTE Terminal (Slicer) Signal N.U.

  • Page 38: Lead Identifications

    LEAD IDENTIFICATIONS MID-32A22F 2SC2785(F,H,J) 2SA1015-GR(TPE2) PT204-6B-12 BA1F4M-T 2SA1020(Y) BN1F4M-T 2SC1815-BL(TPE2) BN1L4M-T 2SC1815-GR(TPE2) KRA103M 2SC1815-Y(TPE2) KRC103M 2SC2120-Y(TPE2) KTA1266(GR) 2SC3266-Y(TPE2) KTA1281(Y) KTA1267(GR,Y) KTC3199(BL,GR,Y) KTC3203(Y) RN2204(TE4,T) KTC3205(Y) E C B E C B 2SK3566 EL817A EL817B BR24L02F-WE2 EL817C CAT24WC02JI LTV-817B-F LTV-817C-F PS2561A-1(Q,W) G D S FA1F4M-T1B LA71750EM-MPB-E QSZAB0RMB192...

  • Page 39: Exploded Views

    EXPLODED VIEWS Front Panel 1-13-1 HG410FEX...
  • Page 40 Cabinet 2L011 2B18 2L011 2L011 See Electrical Parts List for parts with this mark. Some Ref. Numbers are not in sequence. 2L011 JACK CBA 2L011 2L012 2L022 2L042 2L021 2L021 2L021 2L051 2L021 2L022 2L041 2L041 2L021 SUB JACK CBA SENSOR CBA 2L031 AFV CBA...
  • Page 41 Packing X20A X20B X20C X20D X20E Some Ref. Numbers are not in sequence. Unit 1-13-3 HG410PEX...

  • Page 42: Mechanical Parts List

    MECHANICAL PARTS LIST PRODUCT SAFETY NOTE: Products marked with a ! have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper ser- vicing.

  • Page 43: Electrical Parts List

    ELECTRICAL PARTS LIST PRODUCT SAFETY NOTE: Products marked with a ! Ref. No. Description Part No. have special characteristics important to safety. Before C056 CHIP CERAMIC CAP .(1608) B K 0.047µF/50V or CHD1JK30B473 replacing any of these components, read carefully the CHIP CERAMIC CAP .(1608) B K 0.047µF/25V CHD1EK30B473 product safety notice in this service manual.
  • Page 44 Ref. No. Description Part No. Ref. No. Description Part No. CHIP CERAMIC CAP . FZ Z 0.1µF/50V CHD1JZ3FZ104 CHIP CERAMIC CAP .(1608) F Z 0.1µF/25V or CHD1EZ30F104 C326 CHIP CERAMIC CAP .(1608) CH J 68pF/50V or CHD1JJ3CH680 CHIP CERAMIC CAP . FZ Z 0.1µF/50V CHD1JZ3FZ104 CHIP CERAMIC CAP .
  • Page 45 Ref. No. Description Part No. Ref. No. Description Part No. CHIP CERAMIC CAP .(1608) F Z 0.1µF/25V or CHD1EZ30F104 CHIP CERAMIC CAP . FZ Z 0.1µF/50V CHD1JZ3FZ104 CHIP CERAMIC CAP . FZ Z 0.1µF/50V CHD1JZ3FZ104 C708 CHIP CERAMIC CAP .(1608) B K 0.01µF/50V CHD1JK30B103 C489 CHIP CERAMIC CAP .
  • Page 46 Ref. No. Description Part No. Ref. No. Description Part No. RECTIFIER DIODE 1N4005 NDWZ001N4005 L451 INDUCTOR 47µH-K-5FT LLARKBSTU470 D055 PCB JUMPER D0.6-P10.0 JW10.0T L452 INDUCTOR 27µH-K-5FT LLARKBSTU270 D056 ZENER DIODE DZ-5.6BSCT265 or NDTC0DZ5R6BS L501 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101 ZENER DIODE MTZJT-775.6C QDTC0MTZJ5R6 L701 PCB JUMPER D0.6-P5.0...
  • Page 47 Ref. No. Description Part No. Ref. No. Description Part No. CHIP RES.(1608) 1/10W F 2.2k Ω or PHOTO TRANSISTOR MID-32A22F NPWZ1D32A22F R023 RRXAFR5H0222 CHIP RES.(1608) 1/10W F 2.2k Ω Q551 TRANSISTOR KTC3199(BL) or NQS50KTC3199 RRXAFR5Z0222 CHIP RES.(1608) 1/10W J 33k Ω TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815 R024...
  • Page 48 Ref. No. Description Part No. Ref. No. Description Part No. CHIP RES.(1608) 1/10W 0 Ω CHIP RES.(1608) 1/10W J 100 Ω R333 RRXAZR5Z0000 R480 RRXAJR5Z0101 CHIP RES.(1608) 1/10W 0 Ω CHIP RES.(1608) 1/10W J 100 Ω R334 RRXAZR5Z0000 R481 RRXAJR5Z0101 CHIP RES.(1608) 1/10W J 180 Ω...
  • Page 49 Ref. No. Description Part No. Ref. No. Description Part No. CARBON RES. 1/6W J 330 Ω or R564 RCX6JATZ0331 BUSH, LED(F) H3700UD 0VM409508 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 2B46 ROHM HOLDER H7770JD 0VM304573 CARBON RES. 1/6W J 330 Ω or R565 RCX6JATZ0331 JACK BOARD(U27 FTZ) HE480ED...
  • Page 50 Ref. No. Description Part No. Ref. No. Description Part No. C105 CHIP CERAMIC CAP .(1608) F Z 0.1µF/50V or CHD1JZ30F104 2L022 SCREW, P-TIGHT M3X10 WASHER HEAD+ GCMP3100 CHIP CERAMIC CAP .(1608) F Z 0.1µF/25V or CHD1EZ30F104 JACK BOARD(2-21P) HE470ED 0VM203835 CHIP CERAMIC CAP .
  • Page 51 Ref. No. Description Part No. IC:AUDIO PROCESSOR MSP3417G-QG-B8 or NSZBA0SP3002 IC:AUDIO PROCESSOR MSP3417G-QG-B8-V3 NSZBA0SP3005 COILS INDUCTOR 10µH-K-26T LLAXKATTU100 PCB JUMPER D0.6-P5.0 JW5.0T INDUCTOR 18µH-K-26T LLAXKATTU180 INDUCTOR 10µH-K-26T LLAXKATTU100 RESISTORS CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 CHIP RES.(1608) 1/10W J 120k Ω RRXAJR5Z0124 CHIP RES.(1608) 1/10W 0 Ω...
  • Page 52 DECK MECHANISM SECTION VIDEO CASSETTE RECORDER LUX214VR Sec. 2: Deck Mechanism Section I Standard Maintenance I Mechanism Alignment Procedures I Disassembly / Assembly of Mechanism I Deck Exploded Views I Deck Parts List TABLE OF CONTENTS Standard Maintenance ..............2-1-1 Service Fixture and Tools .

  • Page 53: Standard Maintenance

    STANDARD MAINTENANCE Service Schedule of Components This maintenance chart shows you the standard of replacement and cleaning time for each part. Because those may replace depending on environment and purpose for use, use the chart for reference. h: Hours : Cleaning I: Replace Deck Periodic Service Schedule...
  • Page 54 Cleaning Cleaning of ACE Head Clean the head with a cotton swab. Cleaning of Video Head Procedure Clean the head with a head cleaning stick or chamois 1.Remove the top cabinet. cloth. 2.Dip the cotton swab in 90% isopropyl alcohol and Procedure clean the ACE Head.

  • Page 55: Service Fixture And Tools

    SERVICE FIXTURE AND TOOLS J-1-1, J-1-2 Ref. No. Name Part No. Adjustment J-1-1 Alignment Tape FL6A Head Adjustment of ACE Head J-1-2 Alignment Tape FL6N8 Azimuth and X Value Adjustment of ACE Head / (2 Head model) Adjustment of Envelope Waveform FL6NS8 (4 Head model) Guide Roller Adj.

  • Page 56: Mechanical Alignment Procedures

    MECHANICAL ALIGNMENT PROCEDURES Explanation of alignment for the tape to correctly run B. Method to place the Cassette Holder in the tape- starts on the next page. Refer to the information below loaded position without a cassette tape on this page if a tape gets stuck, for example, in the 1.
  • Page 57 1. Tape Interchangeability Alignment Note: To do these alignment procedures, make sure that the Tracking Control Circuit is set to the preset position every time a tape is loaded or unloaded. (Refer to page 2-3-4, procedure 1-C, step 2.) Equipment required: Dual Trace Oscilloscope VHS Alignment Tape (FL6NS8) Guide Roller Adj.
  • Page 58 1-A. Preliminary/Final Checking and 4. If creasing or snaking is apparent, adjust the Tilt Alignment of Tape Path Adj. Screw of the ACE Head. (Fig. M6) Purpose: To make sure that the tape path is well stabilized. Azimuth Adj. Screw Symptom of Misalignment: If the tape path is unstable, the tape will be damaged.
  • Page 59 5. To shift the CTL waveform, press CH UP or CH 5. When Guide Rollers [2] and [3] (Refer to Fig. M3) DOWN button on the remote control unit. Then are aligned properly, there is no envelope drop make sure that the maximum output position of PB either at the beginning or end of track as shown in ±...
  • Page 60 1-D. Azimuth Alignment of Audio/Con- 2. When the tape has been curled up or bent, turn the trol/ Erase Head alignment screw to adjust the height of REV Post. (Refer to Fig. M11 and M13.) Purpose: To correct the Azimuth alignment so that the Audio/ Control/Erase Head meets tape tracks properly.

  • Page 61: Disassembly/Assembly Procedures Of Deck Mechanism

    DISASSEMBLY/ASSEMBLY PROCEDURES OF DECK MECHANISM Before following the procedures described below, be sure to remove the deck assembly from the cabinet. (Refer to CABINET DISASSEMBLY INSTRUCTIONS.) All the following procedures, including those for adjustment and replacement of parts, should be done in Eject mode;...
  • Page 62 REMOVAL INSTALLATION STEP START- REMOVE/*UNHOOK/ /LOC. PART ADJUSTMENT Fig. No. UNLOCK/RELEASE/ CONDITION UNPLUG/DESOLDER BT Arm DM2H, DM14H *(P-5) [33] [26] Loading Arm (SP) (+)Refer to Alignment [34] [26] DM2H, DM14H Assembly Sec.Page 2-5-1 Loading Arm (TU) (+)Refer to Alignment [35] [34] DM2H, DM14H Assembly...
  • Page 63 Top View [44] [45] [49] [46] [14] [13] [11] [15] [38] [10] [12] [37] [36] [43] [32] [41] [31] [40] [42] Fig. DM1H Bottom View [19] [35] [34] [25] [23] [24] [26] [27] [22] [28] [20] [33] Fig. DM2H 2-4-3 U29PHSDA...
  • Page 64 (S-1) (S-1) (L-1) (L-3) (L-2) (S-1A) (P-1) Installation of [3] and [6] First, insert [6] diagonally in [3] as shown below. Then, install [6] in [3] while pushing (L-1) in a direction of arrow. After installing [6] in [3], confirm that pin A of [3] enters hole A of [6] properly.
  • Page 65 [11] (S-4A) (L-4) [49] (P-3) [13] [50] Removal of [11] [12] (L-12) 1) Remove screw (S-4A). 2) Unhook spring (P-2). [10] Release (L-4) while (P-2) holding [12] with a finger. Loosen a finger holding [12] and remove [11]. (S-2) Pin of [12] Pin of [10] Groove of [27] When reassembling [10] and...
  • Page 66 Installation of [13] and [12] (S-5) [14] (S-6) [13] [15] Hook spring (P-3) up to [12] and [13], then install then to (P-3) the specified position so that [12] will be floated slightly while holding [12] and [13]. (Refer to Fig. A.) [12] Fig.
  • Page 67 (C-1) turn [22] (S-8) [20] (L-6) [21] [19] Cap Belt Pin on [22] Installation position of Cap Belt [20] Cap Belt [27] Position of pin on [22] Fig. DM12H [19] View for A Fig. DM11H 2-4-7 U29PHSDA...
  • Page 68 Installation of [26] [26] (C-3) Position of Mode Lever when installed Pin of [33] Pin of [37] (S-9) Pin of [36] (L-8) [23] (L-7) Bottom View [24] (C-5) [26] (C-4) (C-2) [28] [27] [25] [29] [30] Align [26] and [27] as shown. First groove on [27] [27] First tooth on [47]...
  • Page 69 [38] [36] [43] (P-6) turn [39] (L-10) turn [42] turn [47] [48] Slide [37] Fig. DM17H (C-7) [41] (C-6) [40] Fig. DM15H [45] [44] [46] (L-11) Slide Plate (S-11) Fig. DM16H 2-4-9 U29PHSDA...

  • Page 70: Alignment Procedures Of Mechanism

    ALIGNMENT PROCEDURES OF MECHANISM Alignment 1 The following procedures describe how to align the individual gears and levers that make up the tape load- Loading Arm (SP) and (TU) Assembly ing/unloading mechanism. Since information about the state of the mechanism is provided to the System Install Loading Arm (SP) and (TU) Assembly so that Control Circuit only through the Mode Switch, it is their triangle marks point to each other as shown in...

  • Page 71: Deck Exploded Views

    DECK EXPLODED VIEWS Deck Mechanism View 1 Mark Description Floil G-684G or Multemp MH-D (Blue grease) SLIDUS OIL #150 B494 L1467 L1191 B553 B411 B567 L1053 B410 L1051 Chassis Assembly Top View (Lubricating Point) L1322 B501 L1450 L1450 L1466 B121 B126 B492 B571...
  • Page 72 Deck Mechanism View 2 Mark Description Floil G-684G or Multemp MH-D (Blue grease) B587 B521 B487 SLIDUS OIL #150 B416 B591 SANKOUL FG84M (Yellow grease) B590 B522 L1406 B148 B573 B499 B508 B574 B592 B585 B558 B518 B564 B557 B414 B572 B565 L1151...
  • Page 73 Deck Mechanism View 3 Mark Description Floil G-684G or Multemp MH-D (Blue grease) L1321 SLIDUS OIL #150 B347 L1321 B355 B354 B483 L1341 B425 B482 B562 B300 B563 B313 B529 B360 B359 B361 B555 B303 Some Ref. Numbers are not in sequence. B514 2-6-3 U29P4HSDEX...

  • Page 74: Deck Parts List

    DECK PARTS LIST Ref. No. Description Part No. B522 TG POST ASSEMBLY MK10 0VSA11012 Ref. No. Description Part No. B525 LDG BELT MK11 0VM412804 CYLINDER ASSEMBLY MK12.5 PAL 6HD or N2367CYL B529 CLEANER ASSEMBLY MK10 0VSA11161 CYLINDER ASSEMBLY MK12.5 PAL 6HD(V) N2369CYL B551 FF ARM(HI) MK12...
  • Page 75 LUX214VR HG410ED 2004-06-03...
