- Page 1 Henan Liangyi Mechanical and Electronic Technology Co.,Ltd 3D Printer--U2 User Manual...
- Page 2 Legal Notice We’re entitled to amend the relevant content without notification. We are irresponsible for any damage while manipulating according to this manual,caused by including misprinting and other publishing errors. Nobody is allowed to amend,copy or translate. The manual is copyrighted and the final interpretation is reserved.
-
Page 3: Table Of Contents
Contents 1. Introduction 1.1 How to use the manual....................... 3 1.2 Precautions......................... 3 2.Brief Introduction..........................4 2.1 Appearance..........................4 2.1.1. Lateral View......................4 2.2 Axis.............................5 2.1.3. Accessories........................ 6 2.1.4．Tools........................6 2.2 Printer Specifications......................7 2.3 Work environment......................... 8 3. Machine Inspection......................... 9 3.1 Printer Installation Preparation..................... -
Page 4: Introduction
1. Introduction 1.1 How to use the manual It includes 4 parts: Introduction,Overview,Operation and Common Troubleshooting. Please read this manual carefully before installing and manipulating the machine just for your information. 1.2 Precautions Please read this chapter carefully before using. 1.2.1 Safety Don’t touch the printed model or the nozzle when it’s working or just fishing,just in case of the scald and the damage of the printed model. -
Page 5: Brief Introduction

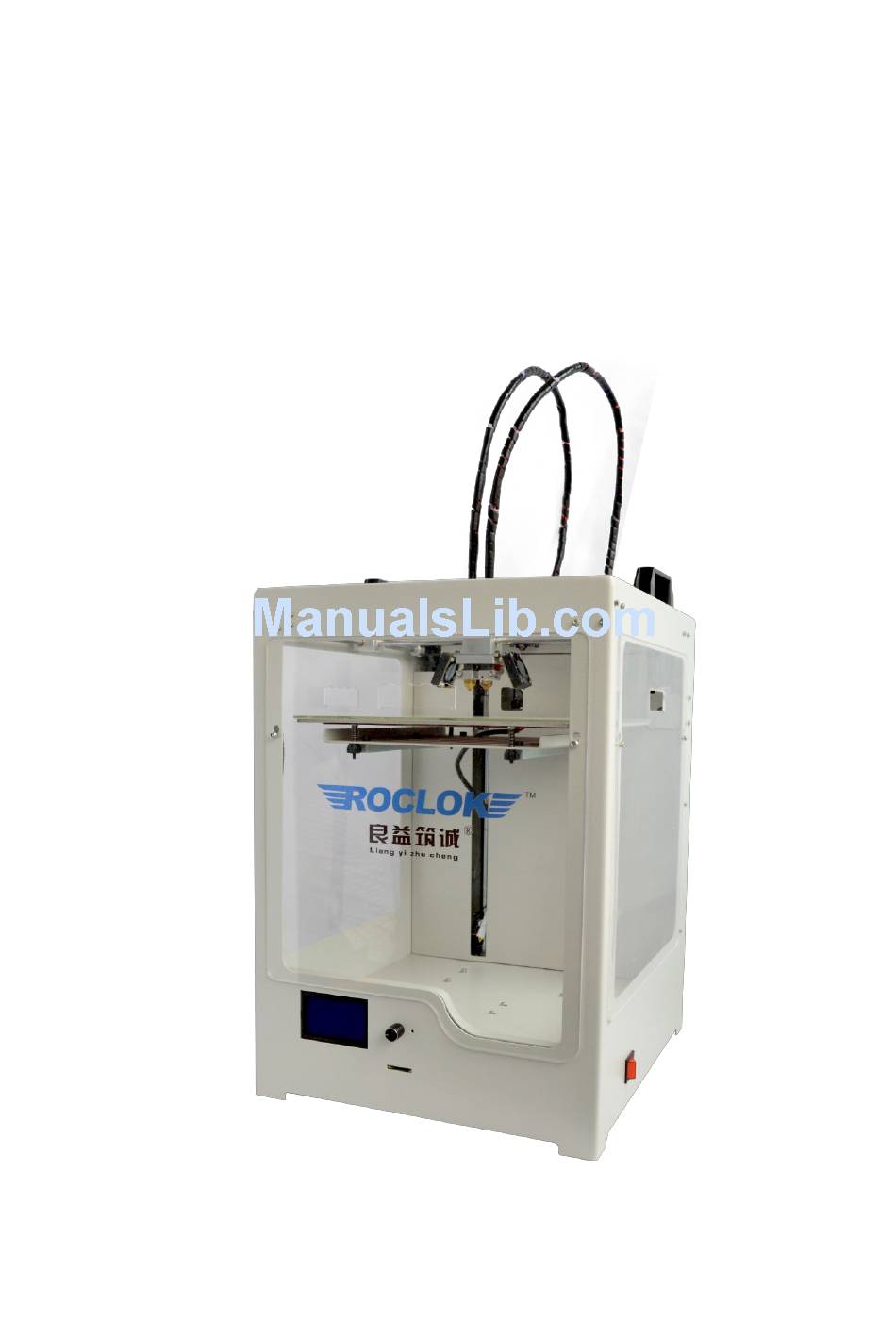

2.Brief Introduction Simplicity and stability is the design concept of U2. It’s easy to manipulate and make whatever you like with a few buttons even for amateurs. The working principle is extruding the melting ABS/PLA and fast solidification after shaping to accomplish the 3D printing 2.1 Appearance... -
Page 6: Axis
2.2 Axis ⑪ USB Slot... -
Page 7: Accessories
2.1.3. Accessories 2.1.4．Tools... -
Page 8: Printer Specifications
2.2 Printer Specifications Forming Fused Deposition Modeling（FDM） Technology： Technical Nozzle Quantity：single nozzle\dual nozzle Parameters： Molding size：250*250*300mm Positioning accuracy：X.Y Axis10Micron， Axis1.5Micron Minimum print thickness：0.06mm Nozzle diameter：0.4mm（0.3 Optional） Maximum air-way speed：250mm/s Maximum print speed：150mm/s Maximum extrusion temperature：250 degree Highest temperature hot bed：120 degree Highest Feeding speed：100mm/s Filament：... -
Page 9: Work Environment
Stepper motor：E axis42*48 Stepper motor，1.8A Input Power：110~220V，1.5A Output Power：Special Switching Power Supply，24V，10.5A Software： Operating System：XP、Vista、Win7、Win8, LINUX,OS Input File：STL、OBJ、GCode Slice Software：Cura、Slic3r、kisslicer Upper computer software：Cura、Printrun、RepetierHost Machinery： Bare metal Dimensions：38*47*57cm Package Dimensions：44*54*61cm Net weight：24.5kg Gross weight：about 32kg 2.3 Work environment Relative humidity 20%--90% Room temperature 10℃--35℃... -
Page 10: Machine Inspection
3. Machine Inspection 3.1 Printer Installation Preparation 3.1.1 Packaging inspection 3.1.1.1 Please check the integrity of the package When you receive the product. 3.1.1.2 Please reject the product once any damage. 3.1.2 Machine Inspection 3.1.2.1 Please open the package carefully to check the machine; 3.1.2.2 Any damage found, please take picture and contact the manufacturer in time. - Page 11 Menu knob Rotate to choose and press to confirm operation Menu SD card slot PLA filament can be installed before the nozzle temperature is up to 210 centigrade.(Adjusting the distance between nozzle and bed is necessary before installing the filament)
- Page 12 Auto Home Adjust the bed and nozzle distance and watch the flowing of the filament from the nozzle.
- Page 13 Use scissors to trim the material into a conical. Insert the filament through the tube until it flows out of the nozzle.
- Page 14 Fix the screw and spring with the hex wrench. Detailed procedure of adjustment: Auto home-prepare-Disable stepper Then,place a piece of paper between the nozzle and the bed to adjust the distance between them by fasten or loosen the screw under the bed.(If you need,I can provide you a video of this part)
-
Page 15: Install The Cura
3.3 Install the Cura This software is already in the SD memory card or you can download online. 3.3.1 Process of installation Cura... - Page 16 1.Choose Other 2.Click Next...
-
Page 18: Cura Operation
3.4 Cura operation Use Cura to turn .stl into .gcode . Save .gcode into SD card, and print. 3.4.1 Cura “Advanced” Interface... - Page 19 3.4. 2 Cura “Advanced” Interface 3.4.3 Cura main parameters （1）Layer height ：every layer thickness usually is 0.2 mm，If you want a higher precision， Please set a smaller value.The higher accuracy it is, the longer time it takes. （2）Wall thickness ：Especially the hollow objects, wall thickness should be Integer times the diameter of the nozzle.
- Page 20 3.4.5 Insert SD card to the machine ，turn on the power，press down the knob and select the Print From SD,choose the .gcode，press down the knob,wait for printing 。 Knob SD Card...
-
Page 21: Remove The Model
4. Remove the model 4.1 When the printing finished, the machine will stop automatically 4.2 Wait until the the building plate and nozzle cooling down 4.3 Put on the gloves, and take down the model with tool. 5. Remove the support Remove the support with plastic nippers with goggle and gloves on. - Page 22 Company : Henan Liangyi Mechanical and Electronic Technology co..Ltd Website ：www.roclok3d.com Alibaba ：http://ly3dtech.en.alibaba.com/ ：0371-86520351 ：0371-86520352 ：Room B1218 .building 2#,Incubation Center of Hi-tech Zone , NO.96 Ruida Road , Zhengzhou , Henan .China...
