- Page 1 ESWGP206‐2SFP‐T User Manual...
- Page 2 International Headquarters B+B SmartWorx. 707 Dayton Road Ottawa, IL 61350 USA Phone (815) 433-5100 -- General Fax (815) 433-5105 Website: www.imcnetworks.com support@bb-smartworx.com European Headquarters B+B SmartWorx Westlink Commercial Park Oranmore, Co. Galway, Ireland Phone +353 91-792444 -- Fax +353 91-792445...
-
Page 3: Table Of Contents
Panel Mounting ............................... 10 RJ45 ETHERNET Connection ............................ 11 Pin Assignments ............................... 12 SFP Installation and Connection ..........................13 Power Input Connections ............................14 Specifications ................................15 Compliance and Disposal ............................. 17 Dimensional Drawing ..............................18 B+B SmartWorx Technical Support ..........................19... -
Page 4: Figures
FIGURES Figure 1. PoE reset ................................. 9 Figure 2. Din rail mounting ............................10 Figure 3. Panel mounting ............................. 10 Figure 4. Ethernet connection ............................. 11 Figure 5. Ethernet connection ............................. 12 Figure 6. Triangle Mark ..............................13 Figure 7. LC Connector to the Transceiver........................14 Figure 8. -
Page 5: Radio Frequency Interference Statement
RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 6: Warranty
(i) any defects resulting from wear and tear, accident, improper use by the buyer or use by any third party except in accordance with the written instructions or advice of the B+B SmartWorx or the manufacturer of the products, including without limitation surge and over voltage conditions that exceed... -
Page 7: Contents Of Package
The package includes: • B+B Ethernet switch with attached DIN rail clip • Printed Quick Start Guide • 4-panel mounting clips with screws You may download the user manual at any time from the B+B SmartWorx/IMC Networks web site: www.imcnetworks.com... -
Page 8: Product Description

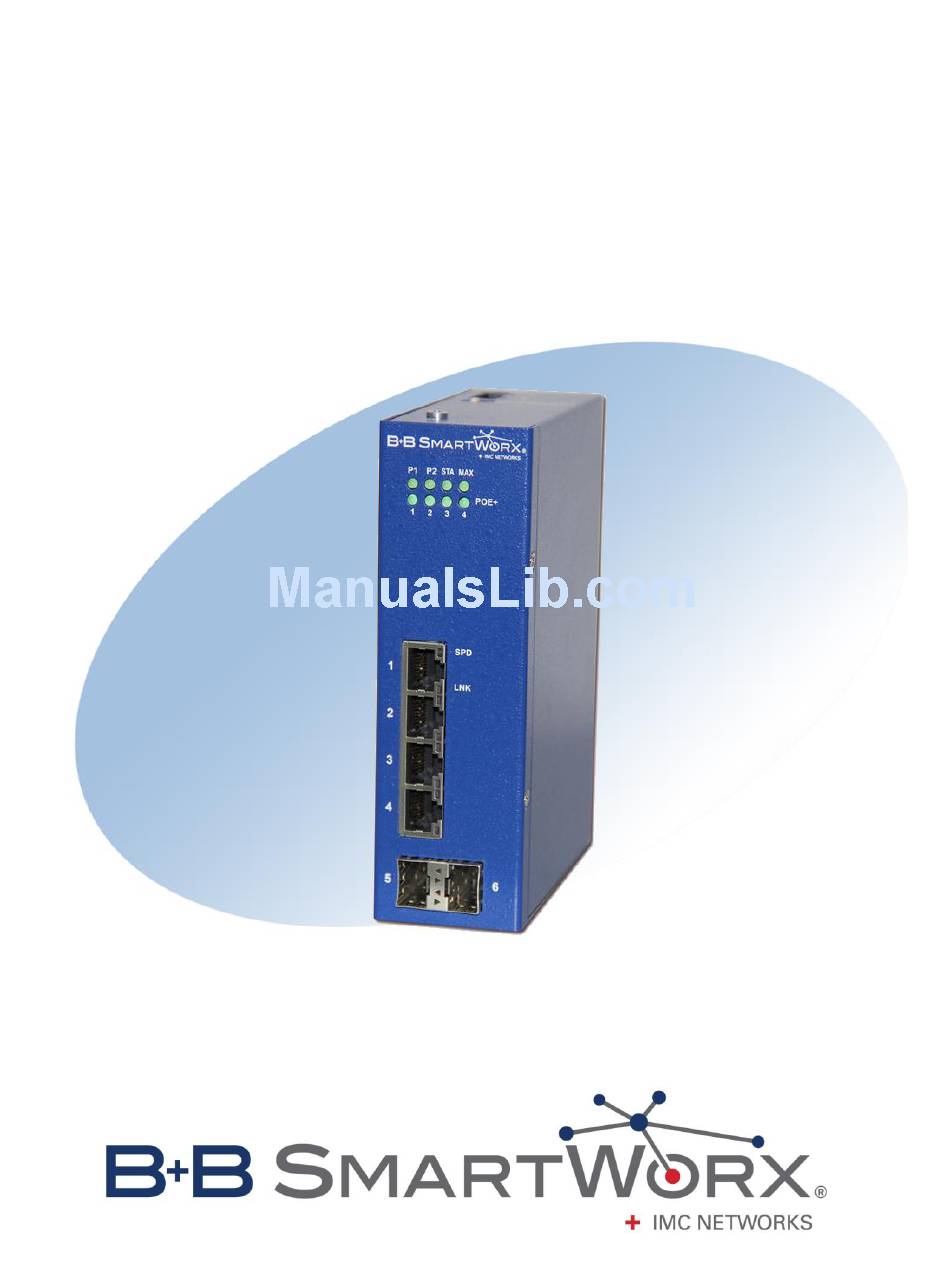

PRODUCT DESCRIPTION The ESWGP206-2SFP-T is a plug-and-play, POE+, unmanaged, industrial Ethernet Switches with IP30 protection. It provides four 10/100/1000Mbps copper ports and two SFP ports for 1000Mbps speed. The fiber SFP port (Port #6) can accommodate both Single-mode and Multi-mode fiber. The SFP port (Port #5) supports 10/100/1000 or 1000Mbps copper SFPs and gigabit fiber SFPs, for both Single-mode and Multi-mode fiber. -
Page 9: Hardware
HARDWARE LED DESCRIPTION Status Description PWR (P1, P2) Green On Power Applied Green Flashing System State LNK LED Green On Link established Green Flashing Data is being transmitted SPD LED Green On 1000 Mbps Orange On 100 Mbps 10 Mbps MAX LED Green On POE Power over max load... -
Page 10: Din Rail Mounting
DIN RAIL MOUNTING The DIN rail mounting clips are connected to the switch when shipped and are ready to be mounted on a 35mm size DIN rail. Figure 2. Din rail mounting PANEL MOUNTING Figure 3. Panel mounting... -
Page 11: Rj45 Ethernet Connection
RJ45 ETHERNET CONNECTION All copper ports on the switch support the Auto Cross feature, which allows the end user to use a Straight-through or Crossover cable. Figure 4. Ethernet connection... -
Page 12: Pin Assignments
Figure 5. Ethernet connection PIN ASSIGNMENTS PIN# Signal Direction PoE & PoE+ Pinout 10/100M (ALT-A) Out* Out* Table 2. Pin assignments... -
Page 13: Sfp Installation And Connection
SFP INSTALLATION AND CONNECTION To connect the transceiver and fiber cable, follow the steps below. The SFP port is not proprietary. Any MSA-compliant 1000Mbps fiber SFP can be installed in the port. (Note: SFP modules typically offer an LC fiber connector). One of the SFP ports allows fiber SFPs only, please refer to information in the Specification table. -
Page 14: Power Input Connections
Figure 7. LC Connector to the Transceiver Last, remove the SFP and gently pull out of the cage manually. POWER INPUT CONNECTIONS ESWGP206-2SFP-T accepts 24V~52VDC input voltage using terminal blocks. Figure 8. Power Input Connections... -
Page 15: Specifications
SPECIFICATIONS Technology Standard IEEE802.3, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3af/at Processing Type Store and forward Broadcast Storm Disabled Flow Control Full Duplex Flow Control, Half Duplex Back Pressure Control Protocols CSMA/CD (Carrier Sense Multiple Access/Collision Detect) Switch Properties MAC Table Size Packet Buffer Size 128K Jumbo Frame Size... -
Page 16: Table 4. Certifications
Certifications Safety IEC/UL/EN60950-1 CE, FCC Part 15, EN55022: Class A CE EN61000-6-4 (Industrial) CE EN61000-4-2 (ESD) CE EN61000-4-3 (RS) CE EN61000-4-4 (EFT) CE EN61000-4-5 (Surge) CE EN61000-4-6 (CS) CE EN61000-4-8 CE EN61000-4-11 CE EN61000-6-2 (Industrial) Free Fall IEC60068-2-32 Shock IEC60068-2-27 Vibration IEC60068-2-6 RoHS, REACH, WEEE... -
Page 17: Compliance And Disposal
COMPLIANCE AND DISPOSAL The products described here in comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC) and the Council Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Will be certified for Information Technology Equipment including Electrical Business Equipment (Pending). European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. -
Page 18: Dimensional Drawing
DIMENSIONAL DRAWING Figure 9: Dimensional drawing... -
Page 19: B+B Smartworx Technical Support
B+B SMARTWORX TECHNICAL SUPPORT Phone: 1-800-346-3119 (Monday - Friday, 7 a.m. to 5:30 p.m. CST) Fax: 815-433-5109 Email: support@bb-smartworx.com Web: www.imcnetworks.com...
