Summary of Contents for Shaw Systems SSL-RC10
- Page 1 SSL-RC10 - Remote Control Panel Hardware Manual – Revision 1.0 Shaw Systems Ltd 1 of 10 www.shaw-systems.co.uk +44 (0) 207 099 7825...
- Page 2 Shaw Systems Limited. Shaw Systems Limited reserves the right to alter the design and specification of the equipment described in this manual without notification.
-
Page 3: Table Of Contents
Front Panel Detail & Connections..............7 Description....................7 Front Panel External control Connector Pin out ..........8 Rear Panel Detail & Connections..............9 Rear Panel Connector Pin out ...............9 Appendix 1.....................10 Physical dimensions..................10 Shaw Systems Ltd 3 of 10 www.shaw-systems.co.uk +44 (0) 207 099 7825... -
Page 4: General Information
Approval Draft 23/01/09 First Release Warranty Information The SSL-RC10 is covered by a return to base warranty of twelve months from date of purchase against defective parts or workmanship. Damage by liquid or extreme mechanical treatment will not be covered. Scope This manual covered the hardware details of the SSL-RC10 remote control panel. -
Page 5: Introduction
Introduction The SSL-RC10 is a remote control panel designed to provide remote control of broadcast equipment. The unique user interface is designed to allow control of the features required without distracting the operator from other duties. This makes the RC10 ideal for vehicular mounted equipment. -
Page 6: Specification
Power Connector 15Way D-type Male (Shared) Remote Unit Connection 2 x RS232 on 15Way D-type Male (Shared) External Programming 2 x Rs232 on 6 Pin Lemo (Pass Through) Connection Shaw Systems Ltd 6 of 10 www.shaw-systems.co.uk +44 (0) 207 099 7825... -
Page 7: Front Panel Detail & Connections

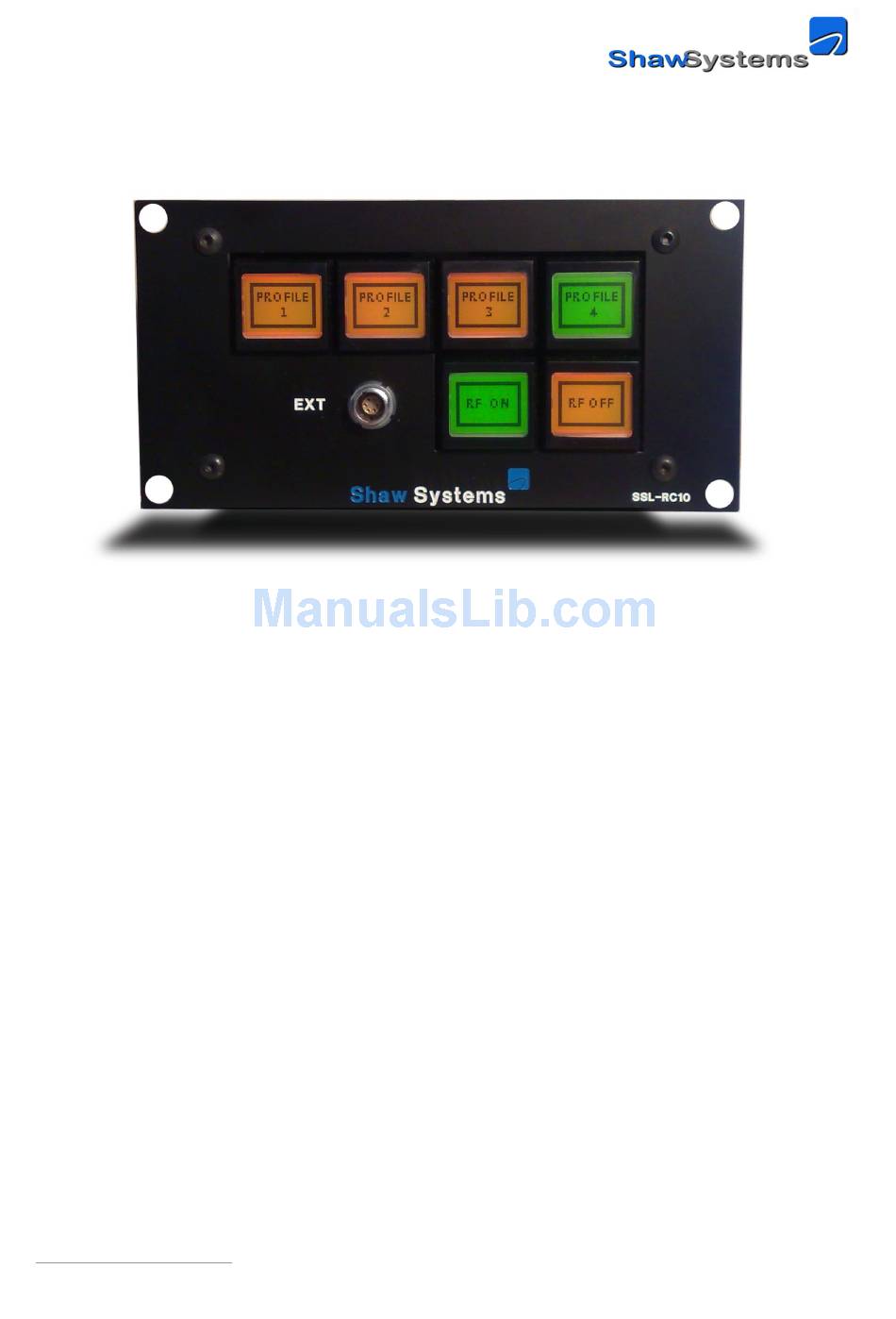

Front Panel Detail & Connections Description The front panel of the SSL-RC10 is made up of six large push button switches. Each switch has a LCD build into the key cap to allowing text and graphics to be changed dynamically. The switch can also have its back light colour and intensity changed... -
Page 8: Front Panel External Control Connector Pin Out
(NB. This connector is labelled “EXT”) LEMO EEF.0B.306.CLL Connection Device 2 Data to PC Device 2 Data from PC Ground Device 1 Data from PC Device 1 Data to PC Ground Shaw Systems Ltd 8 of 10 www.shaw-systems.co.uk +44 (0) 207 099 7825... -
Page 9: Rear Panel Detail & Connections
Signal Ground Device 2 Data from Control Panel Device 2 Data to Control Panel Power Ground Supply +10-30 VDC Unused pins are reserved for future use. Leave unconnected. Shaw Systems Ltd 9 of 10 www.shaw-systems.co.uk +44 (0) 207 099 7825... -
Page 10: Physical Dimensions
Appendix 1 Physical dimensions All dimensions in mm Drawing 1: Front Panel Dimensions Shaw Systems Ltd 10 of 10 www.shaw-systems.co.uk +44 (0) 207 099 7825...
