Summary of Contents for MLis MLB-G4301

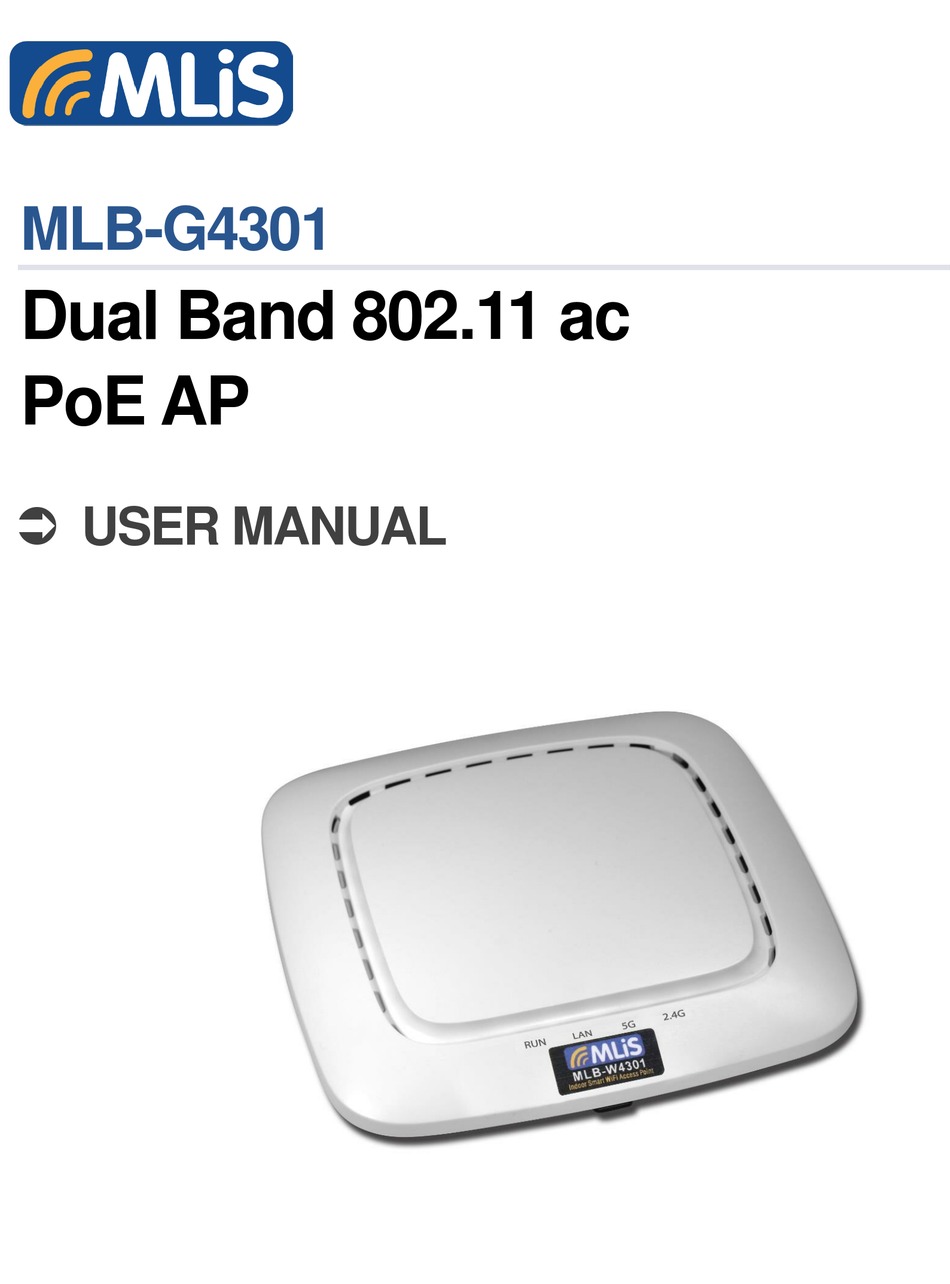

- Page 1 MLB-G4301 Dual Band 802.11 ac PoE AP USER MANUAL...
- Page 2 Information provided by Schmidt & Co., (HK) Ltd, (herein known as ‘the company’), is believed to be accurate and reliable. However, the company assumes no responsibility for its use, nor any infringement of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent rights of the company other than for circuitry embodied in the company’s products.
-
Page 3: Table Of Contents
TABLE OF CONTENTS AP Network Topology ....................4 Connect PoE Adapter to AP ...................... 4 Configure PC IP address ......................5 Visit AP Web page........................6 Configure IP address for AP...................... 6 Connect AP to Switch ........................ 7 Configure location, Language and Country code for AP ............7 Configure detailed WiFi parameters for AP ................ -
Page 4: Ap Network Topology
1 AP Network Topology Connect PoE Adapter to AP Notes: Now the AP can be powered by standard 802.3af or 802.3at PoE PSE. Please connect the Ethernet Port labeled “PWR LAN-OUT” on PoE Adapter to “ETH1” port of AP and the Ethernet Port labeled “LAN-IN”... -
Page 5: Configure Pc Ip Address
Configure PC IP address Notes: Connect your PC to the “LAN-IN” port on PoE Adapter of AP, manually configure your wired NIC with a static IP address on the 192.168.188.x subnet (e.g. 192.168.188.202). MLB-W4301 AP User Manual Rev 1.0... -
Page 6: Visit Ap Web Page
Visit AP Web page Notes: Input the default IP address “192.168.188.251”in the address bar of browser. Then enter the default username and password (username: admin, password: password) to enter the Web interface of AP. Configure IP address for AP MLB-W4301 AP User Manual Rev 1.0... -
Page 7: Connect Ap To Switch
Connect AP to Switch Notes: Connect AP to Switch and confirm it can visit Internet, then configure your PC to the same subnet and connect to the same Switch in order to continue to configuring the AP. Configure location, Language and Country code for AP. Notes: After change the country code, the AP will be set to factory default. -
Page 8: Configure Detailed Wifi Parameters For Ap
Configure detailed WiFi parameters for AP MLB-W4301 AP User Manual Rev 1.0... -
Page 9: Configure Radius Parameters For Ap
Configure Radius parameters for AP Notes: If want to use the 802.1x authentication, it need to configure the Radius profile firstly. Then in the security profile, the radius profile will be presented in the drop-down list. Configure Portal parameters for AP ... -
Page 10: Configure Security Parameters For Ap
1.10 Configure security parameters for AP MLB-W4301 AP User Manual Rev 1.0... - Page 11 802.1x Authentication Web Authentication MLB-W4301 AP User Manual Rev 1.0...
-
Page 12: Configure Rate Limit Rule (Optional)
1.11 Configure Rate limit rule (Optional) Notes: Rate Limit profile will be cited in the AP configuration. MLB-W4301 AP User Manual Rev 1.0... -
Page 13: Configure Group Id (Optional)
1.12 Configure Group ID (optional) Notes: Group profile is used for 802.1x/Web authentication. Group is classified by Filter-ID attribute in radius access accept message. The Group is bound with the role of the user. Different group has different VLAN and rate limit configuration. When a station sends the username and password to the Radius server for authentication, the server can respond with a Filter-ID (optional) to the AP. -
Page 14: Configure Mac Acl Rule (Optional)
1.13 Configure MAC ACL rule (optional) 1.14 Configure SSID MLB-W4301 AP User Manual Rev 1.0... - Page 15 Notes: You may apply the relevant Security, Rate Limit, Mapping or MAC ACL profiles which you configured here. After the above setting, wireless stations can connect to the relevant SSID of AP and get IP address from DHCP server of firewall to visit Internet. MLB-W4301 AP User Manual Rev 1.0...
-
Page 16: Ap Wds Network Topology
2 AP WDS Network Topology Enable WDS Function Note: Enable WDS function when you configure SSID. MLB-W4301 AP User Manual Rev 1.0... -
Page 17: Configure Cpe Wds
Configure CPE WDS Note: Enable WDS function too when you configure CPE to connect to AP. 3 NAWDS Network Topology MLB-W4301 AP User Manual Rev 1.0... -
Page 18: Configure Wds Bridge Mode
Configure WDS Bridge Mode Note: Please select a specified Channel (for example 161) here. Input Remote AP MAC MLB-W4301 AP User Manual Rev 1.0... -
Page 19: The Configuration In Remote Ap
The Configuration in Remote AP Note: Please select the same Channel as the Channel of AP which you want to connect via WDS. Note: Please input the MAC address of AP which you want to connect via WDS. MLB-W4301 AP User Manual Rev 1.0... -
Page 20: Nawds Auto Find
NAWDS Auto Find MLB-W4301 also supports “NAWDS Auto Find” function, after you configure master AP, you may enable “NAWDS Auto Find” function in slave AP. Notes: Please select the same Channel as the Channel of AP which you want to connect via WDS. ... -
Page 21: Station Network Topology
4 Station Network Topology Notes: MLB-W4301 supports station mode. MLB-W4301 access to the AP by Wi-Fi, and provide the Ethernet access to the client by the LAN port. Configure Station Mode MLB-W4301 AP User Manual Rev 1.0... -
Page 22: Station Access To Ap
Station Access to AP Notes: Need to configure the SSID manually. If want to use the security method, need to configure the “security profile” firstly and then cite it here. MLB-W4301 AP User Manual Rev 1.0... -
Page 23: Station Status
Station Status Notes: After MLB-W4301 access to a AP successfully, can check the station status on the Web GUI, for example, the SSID and BSSID. 5 Troubleshooting Ping Diagnose MLB-W4301 AP User Manual Rev 1.0... -
Page 24: Tracert Diagnose
TraceRT Diagnose How to Backup/Restore Setting Notes: Press “Save” button to save current setting. Press “Upload” button to load saved setting. MLB-W4301 AP User Manual Rev 1.0... -
Page 25: How To Upgrade Ap
How to Upgrade AP Notes: Press “Choose File” button to select firmware file, then press “Upgrade” button to upgrade How to Reset AP to Default Setting Notes: If you can’t visit AP web page, please press the “Reset” button of AP and hold for more than 5 seconds, the AP will reset to default setting automatically. -
Page 26: How To Check Ap Setting By Console
How to Check AP Setting by Console Serial Cable Definition Notes: For the serial cable, one side is a standard DB-9 female serial port and the other side is a RJ11 connector. For the RJ11 connector PIN sequence you can use below picture as a reference. RJ11 PIN DB-9 hole MLB-W4301 AP User Manual... - Page 27 MLB-W4301 AP User Manual Rev 1.0...
- Page 28 Note: Input “enable” first and “ifconfig” command in “system/shell” folder to check AP IP address. MLB-W4301 AP User Manual Rev 1.0...
- Page 29 Note: Input “iwconfig” command in “system/shell” folder to check AP WiFi setting. Note: Input “wlanconfig athx list” command to check if there is any WiFi station connects to AP. In the command, “athx” means the different SSID, if you want to check if there is any WiFi station connects to AP SSID, please input the relevant athx of the SSID.
- Page 30 Regional Contact Taiwan | +886 2-2502-5095 China | +86 (755) 8376-0232 Singapore | +65 6272-7233 Email sales.mlis@schmidtelectronics.com Official Website MLiS Website | www.schmidtm2m.com Support | www.schmidtm2m.com/support Download | www.schmidtm2m.com/download Facebook | www.facebook.com/MLiSM2M MLB-W4301 AP User Manual Rev 1.0...
