Summary of Contents for 4x4 TOUGH 17-031000
- Page 1 CAPACITOR BATTERYLESS JUMP STARTER Suitable for vehicles up to: 5L Petrol and 3L Diesel AFTER SALES SUPPORT INSTRUCTION www.4x4tough.com.au 1300 883 104 sales@4x4tough.com.au MANUAL MODEL: 17-031000 PRODUCT CODE:57648 09/2017...
- Page 2 CAPACITOR BATTERYLESS JUMP STARTER Warranty Details REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.
-
Page 3: Table Of Contents
Contents WELCOME ........................4 INTRODUCTION......................5 CONTENT & SPECIFICATIONS.................. 5 IMPORTANT SAFETY INFORMATION ..............6 INBUILT PROTECTION FEATURES ................. 6 PARTS DIAGRAM ......................7 REFERENCE IMAGES ....................8 BELOW VOLTAGE TO START A VEHICLE .............. 9 WELL BELOW THE VOLTAGE LEVEL REQUIRED TO START THE VEHICLE....................10 COMPLETELY WITHOUT CHARGE “DEAD BATTERY”........11 PHONE CHARGING....................11... -
Page 4: Welcome
WELCOME Congratulations on choosing to buy a 4X4 TOUGH® product. In the event you require assistance with your purchase please contact one of our experienced customer service team on 1300 883 104, before considering a return of product to ALDI. -
Page 5: Introduction
INTRODUCTION This Jump Starter does not have, nor does it require a battery. In place of a battery this Jump Starter is equipped with capacitors temporarily able to store su cient electrical charge to allow a vehicle to be started. The charge input for the capacitors may be from a vehicle lacking su cient battery charge to start the vehicle, a healthy battery in a normally functioning vehicle, a 12V DC outlet or a USB outlet. -
Page 6: Important Safety Information
IMPORTANT SAFETY INFORMATION Read and follow your Jump Starter instructions and safety precautions before using the Jump Starter! • DO NOT allow the unit to become wet. • DO NOT use the unit in an explosive environment (e.g. the presence of ammable liquid or gases). -
Page 7: Parts Diagram

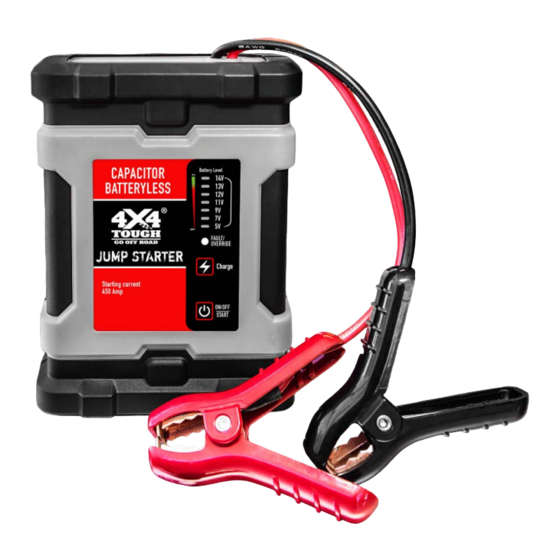

Parts Diagram (Fig.1) 2 Fixed green lights will appear when unit is ready to use. Battery Charge Level Indicator FAULT/OVERRIDE Indicator Light Charging Button ON/OFF - Start Button NEGATIVE (–) CLAMP Mini USB input POSITIVE (+) CLAMP (charging the unit) USB output 12V DC car input (Mobile phone charger) -
Page 8: Reference Images
Fig.2 Fig.3 Vehicle's battery positive lead disconnected. Normal battery setup. Fig.4 Fig.5 Jump Starter connected to vehicle's battery Jump Starter’s positive lead attached to disconnected vehicle’s battery positive lead. disconnected positive lead and negative terminal. Fig.6 Fig.7 Connect the vehicle's battery positive lead to Secure vehicle's battery positive lead. -
Page 9: Below Voltage To Start A Vehicle
INSTRUCTIONS FOR USE This Jump Starter has been engineered to address a variety of situations which could confront a motorist with a disabled vehicle. The operational sequence is determined by the status of the de cient battery. This sequence must be followed according to the instructions below. 1.0. -
Page 10: Start The Vehicle
2.0. Well Below the Voltage Level Required to Start the Vehicle Follow this procedure when the Jump Starter’s Fault/Override indicator (B) blinks, but the Jump Starter is unable to be fully charged by the de cient battery. There are several very important safety aspects which need to be understood and practiced prior to activating the Jump Starter Bypass Mode. -
Page 11: 3.0. Completely Without Charge "Dead Battery
After disconnecting the Jump Starter's positive lead, deactivate Bypass Mode by pressing the ON/OFF button (D), once. The Fault Override indicator light (B) will extinguish (con rming the Bypass Mode has been deactivated). Disconnect the negative Jump Starter lead. 2.10 Before switching o the vehicle, take it for a short drive to allow the de cient battery 2.11 to recharge. - Page 12 CAPACITOR BATTERYLESS JUMP STARTER INSTRUCTION MANUAL...
