Summary of Contents for Sunco SO91

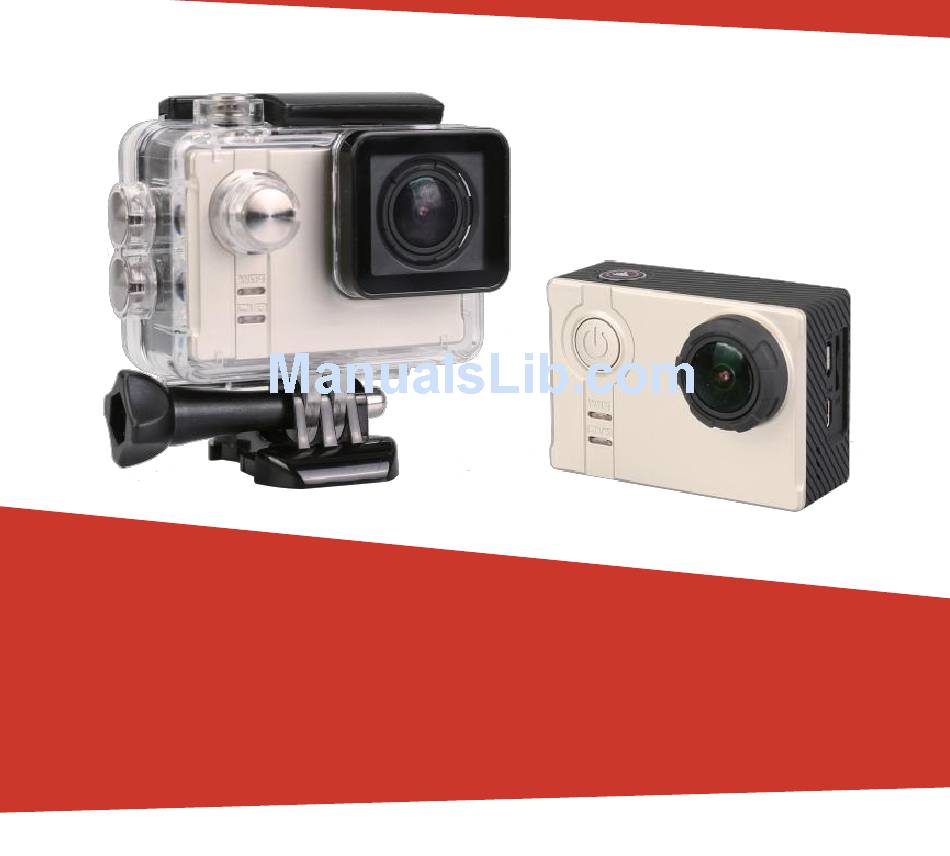

- Page 1 Action Camera Waterproof up to 60m Full HD video 4K 12MP camera WiFi...
-
Page 2: Product Features
Warning 1.It is a high-precision product, please do not fall or crash. 2.Please do not expose the unit to strong magnetic objects, such as magnet and eletrical motor. 3.Never leave the products to high temperatures and direct sunlight. 4.Please choose branded Micro SD card. Neutral cards are not quaranteed to work normally. 5.Please do not place Micro SD card near strong magnetic objects to avoid data loss. -
Page 3: Product Schematic
Product Schematic OK / WIFI Microphone Micro Power / Mode USB Slot SD Card Slot WIFI Indicator HDMI Port Operating Indicator External Mic Speaker Lens... - Page 4 Operating Indicator 2 Charging Indicator Down Operating Indicator 3 Screen...
- Page 5 Battery Aerial Photography Indicator Battery cover Battery cover lock 1/4 nut...
- Page 6 Waterproof cover Schematic Waterproof case door lock OK / WIFI Lens Down Power / Mode...
- Page 7 Accessories 配件图 Waterproof case Bicycle stand Base 1 Base 2 Fixed b a s e Switch support1 Switch support 2 Switch support 3 adapter Charger Wire rope&Ribbon Helmet base Ribbon 3M adhesive tape USB cable Wiper back cover User manual...
-
Page 8: Operation
Operation 1.Inserting Micro SD Card Note: Please choose branded Micro SD card and format it on computer ,before use. Neutral cards are not guaranteed to worknormally. 2. Installing and removing battery A.The battery door has been locked when the lock catch is in the”LOCK”, push the lock catch to “ ”,then to “... -
Page 9: Specifications
screen, it displays "Bluetooth Pair", after around 20 seconds, you could see " Bluetooth Pair Success!", that means connect successfully, then back to normal mode. 8. How to reocrd videos and configure reocrding setting 8-1. Video Recording Switch to recording mode and there will be an “ ”... - Page 10 Viewfinder Focusing Type Fixed Control Programmed AE Compensation ±2EV (0.33 EV steps) Exposure Auto, 100, 200, 400, 800, 1600 Equivalent Modes Auto / Incandescent /D4000/D5000/Daylight / Cloudy White Balance /D9000/D10000/ Flash / Fluorescent/Water / Outdoor...
- Page 11 NTSC: 4K 3840x2160 30P 16:9 3840x2160 25P SuperView 2160P 2880x2160 30P 4:3 2.7K 2704x2028 30P 4:3 2704x1520 30P SuperView 2.7K 2704x1520 30P 16:9 2.5K 2560x1440 60P/30P 16:9 1440P: 1920x1440 60P/30P 4:3 1080P: 1920x1080 120P/100P/60P/30P 16:9 1920x1080 60P/30 SuperView 960P: 1280x960120P/60P/30P 4:3 720P: 1280x720 240P/200P/120P/60P/30P 16:9 1280x720 120P/30P SuperView Video resolution...
- Page 12 Photo : JPEG File Format Audio : PCM 48KHZ 16bit Video : H.264 High Profile Level 4.2 MP4 16M（4608x3456 4:3） 14M（4254x3264 4:3） 12M （4000x3000 4:3） Image Size 8.3M（3840x2160 16:9） 12Mp 5M（2560x1920 4:3） 3M（2048x1536 4:3） HDMI: Support NTSC 1920X1080P60,PAL1920X1080P50 Video Output output With CEC Composite: NTSC/PAL OFF / 2 Seconds /3 Seconds / 5 Seconds / 10 Seconds / 30...
- Page 13 Video Quality: Off/ Date / Time / Dt_Tm Photo Quality: Off/ Date / Time / Dt_Tm Default Mode Video / Photo Quick Capture ON / OFF On / OFF Motion Off / Low / Medium / High Detection Long Off / 1/30 seconds / 1 second / 2 seconds / 5 Seconds / 10 Exposure Seconds / 30 Seconds / 60 Seconds Dual Streams...
- Page 14 Screen_Off ： OFF / 30 Seconds / 1 Min. / 3 Min. / 5 Min. Auto OFF / 3 Min. / 5 Min. / 10 Min. Shutdown ： Status LED： ON / 1 / 2 / 3 / 4 WiFi LED： ON / OFF TV OUT ：...
- Page 15 Time Setup set-up time Date Format Y/M/D,D/M/Y,M/D/Y Bluetooth Pair Select Bluetooth Pair WIFI: ON / OFF WiFi SSID ： AMBA_A12_XXXXXX WiFi 1234567890 Password ： Format YES/NO Default YES/NO Setting Version ： A12-VX.X English / Simple Chinese/ Traditional Chinese/ Russion / Language German / Italian / French/ Korean / Japanese / Portuguese / Spanish / Arabic / Polish...
- Page 16 Dimensions (W*H*D) L: 61mm, W:42mm, H:23 mm(with lens part will be 33mm) Weight about 78.5g(With battery) Mass Storage Driver Support Windows XP(Service pack 2) or later Mac OS X 10.4.11 or later System Requirements *PC with processor better than Pentium 4 3.2GHz *Windows XP(Service pack 2) or later *Minimum 1 GB System RAM For Windows...
- Page 17 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2.Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
