Summary of Contents for Hollyland-Tech Cosmo 1000

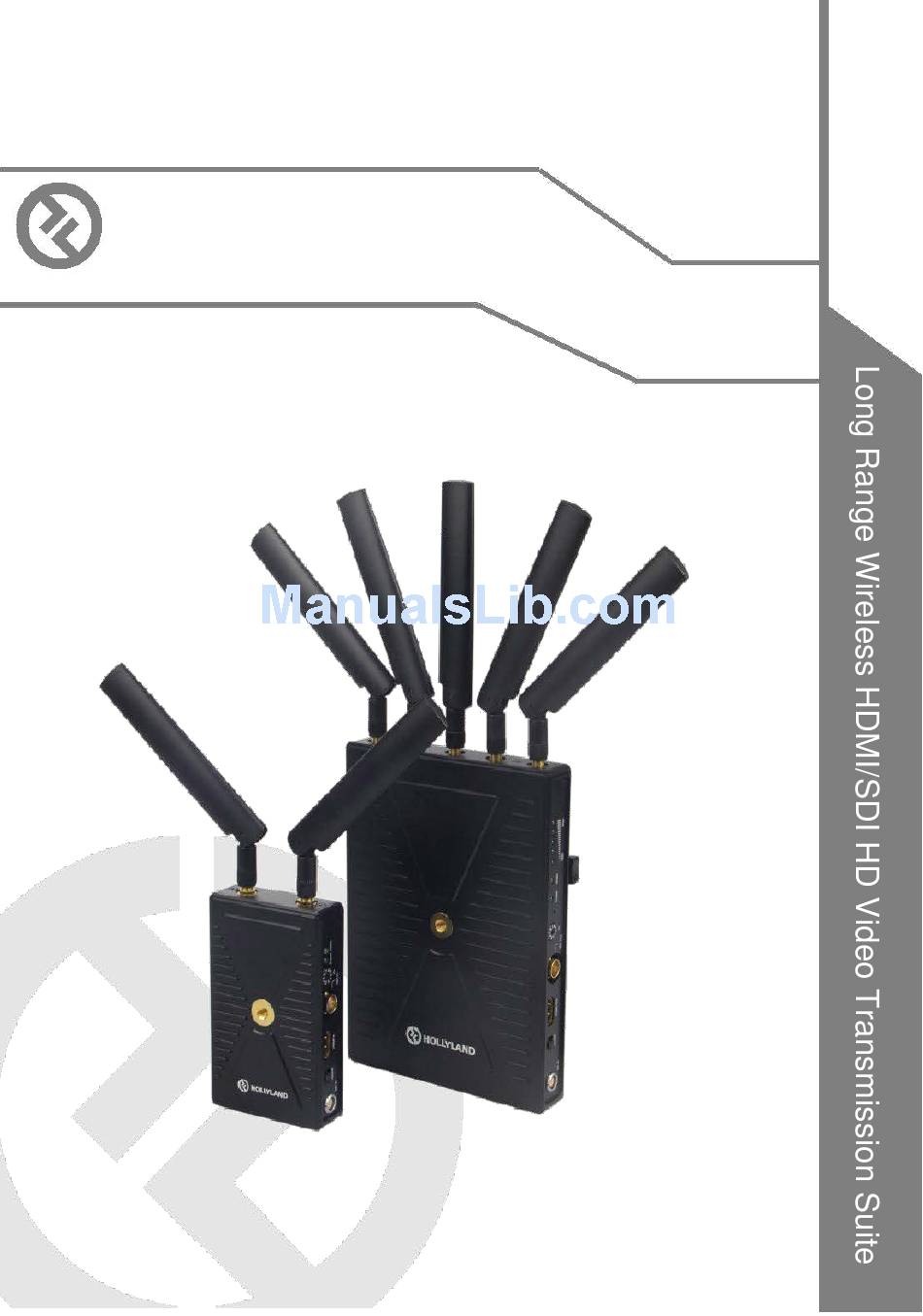

- Page 1 HOLLYLAND Cosmo 1000 User manual Copyright © 2015 Hollyland. All rights reserved.
- Page 3 About Product model and standard: Hollyland Cosmo 1000 Long Range Wireless HDMI/SDI Transmission Suites utilize today's most advanced wireless video transmission technology, which can realize the broadcast-class and uncompressed 3G SDI/HDMI HD video signal transmitted with no compression and zero delay. The suite includes...
-
Page 4: Main Features
About Main features: ● HDMI 1.3 spec supports ● HDMI and 3G SDI inputs and outputs ● Highest resolution 1080p 60Hz, no delay and no compression ● AES-128 encryption with air interface HD video data stream ● Support point to point, and point to multi points network topology ●... - Page 5 About Parameters: Supply Voltage Range 7-36V DC 7-36V DC Power Consumption...
- Page 7 1 unit transmitter 1 unit receiver 8 pcs 5GHZ omni-directional and high efficiency antennas (SMA female) 2×flat screwdrivers 1×7'' articulating arm 1×1/4-20 screw to ISO518 hot shoe converter 1× crab clam 2× D-Tap to 4-pin lemo converter cable ...
- Page 8 Installation Installation details and cautions ●Transmitter side a) Install 2 omni-directional and high efficiency antennas to transmitter’s RP-SMA male antenna connectors. b) There are 3 1/4-20 screw nuts in transmitter metal case, which are located on surface, rear and bottom. So the user can utilize a 1/4 screw to ISO518 hot-shoe converter fix the transmitter on camera.
- Page 9 Installation ●Receiver side a) Install 5 pcs omni-directional and high efficiency antennas to receiver’s RP-SMA male antenna connectors. b) There are a 1/4-20 screw nut in the surface side of receiver. The user can utilize a 1/4 screw fix the subsidiary metal hook with the receiver. c) Install battery into battery buckle if your product model includes the op- tion of battery buckles;...
- Page 10 Installation Typical connection instruction Connect camera SDI or HDMI output to transmitter SDI or HDMI input port, and the transmitter can fixed in hot-shoe port of the camera. Connect HDMI or SDI output port of the receiver to SDI or HDMI input port of the HD moni- tor.
-
Page 11: Getting Started
Operation instruction Getting started After finishing all steps above, system is workable, follow below steps. a) Ensure the video source output of the camera is OK, and the HD monitor is power on and switched to connected video input port. b) Ensure all inputs, output SDI or HDMI cables are connected. - Page 12 Operation instruction g) Before RX setup wireless link with TX, 5 ‘RSSI’ indicators and “video” indicators will be off; when wireless link is OK, ‘RSSI’ indicators will light first, and ‘RSSI’ will indicate the received RF signal strength. If the receiver detects normal wireless video internally from air interface, ‘Video’...
-
Page 13: Rssi Indicators
Operation instruction Input video ports selection of transmitter The transmitter has a 3G SDI video input port and a HDMI video input port, and the system will detect valid video source automatically of SDI and HDMI port, then switch it as main video input channel. If both SDI and HDMI have valid video inputs, the system will take SDI input as priority. -
Page 14: Maintenance
Maintenance Storage conditions Products storage temperature should be -20 C~60 C. For long time storage requirement, please use original carbon boxes, and avoid from high humid, acid base or dusty place. Maintenance Warning To ensure your safety, please choose well-known brand DC batteries, and guarantee suitable work conditions that batteries manual mentioned. -
Page 15: Troubleshooting
Trouble shooting Normal problems a) No output on display Check TX and RX power first, and see if TX or RX battery is powered from ex- ternal power, then check if TX antennas and RX antennas are installed right. After that, check ‘video’ indicator, if TX ‘video’ indicator is not light, then check SDI or HDMI cable and video source please. - Page 16 For more information on Hollyland series systems, please check www.hollyland-tech Distributed by UL TMALINI< SOLUTIONS SC:NSC:, CONNC:CT, SC:CUMC: Phone: 0415 468 731, Email: sales@ultralinks.com.au Suite 1A Level 2, 802 Pacific Highway, Gordon NSW 2072 www.ultralinks.com.au...
