Summary of Contents for NewTek NDI-PTZ1

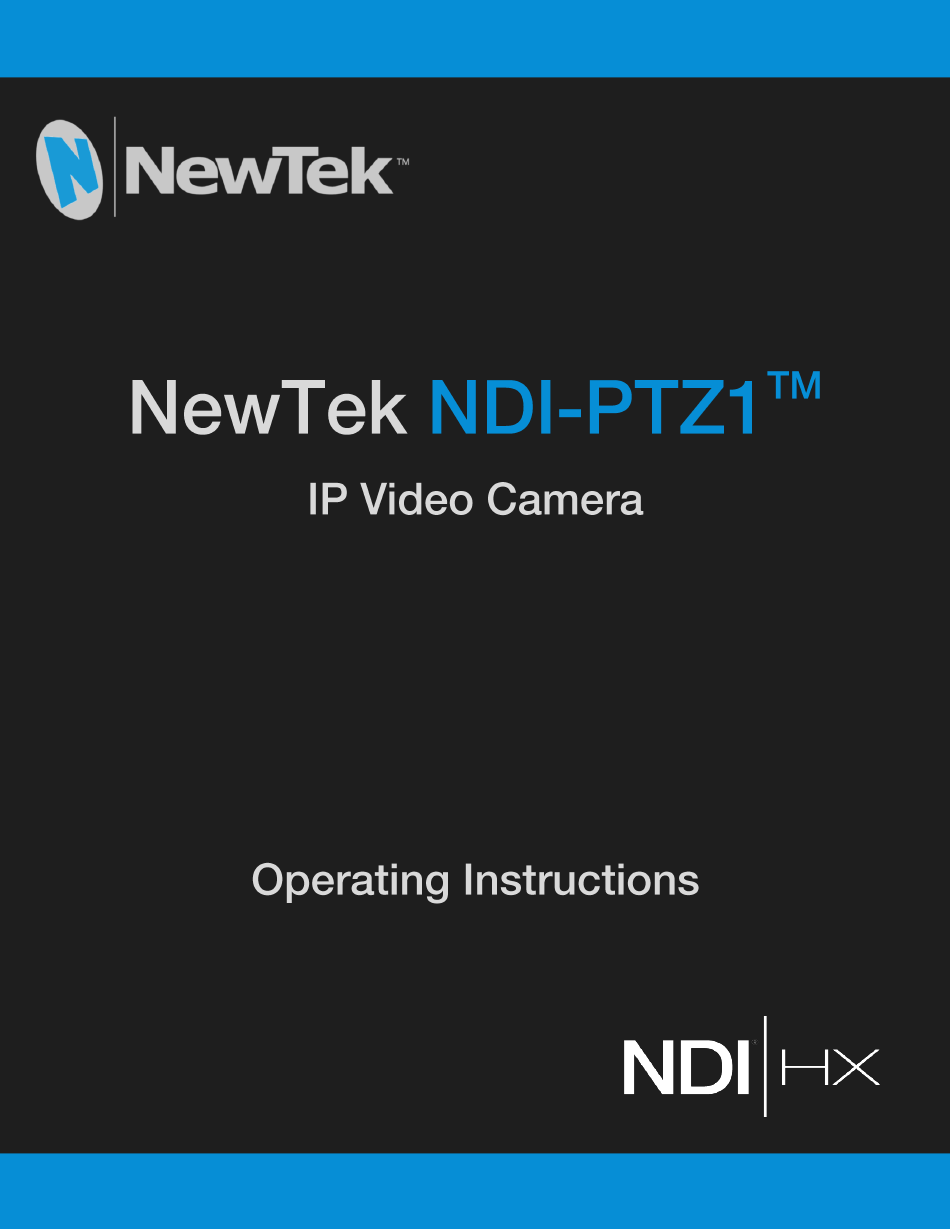

  • Page 1 Page | i...
  • Page 2 Revised – September 5, 2017 Trademarks: NewTek, NewTek VMC1, NewTek VMC1 IN, NewTek VMC1 OUT, NewTek NC1, NewTek NC1 IN, NewTek NC1 I/O, TriCaster, TriCaster TC1, TriCaster Advanced Edition, TriCaster XD, TriCaster 8000, TriCaster TCXD8000, TCXD8000, TriCaster 860, TriCaster TCXD860, TCXD860, TriCaster 460, TriCaster TCXD460, TCXD460, TriCaster 410, TriCaster TCXD410, TCXD410, TriCaster Mini SDI,...

  • Page 3: Table Of Contents

    2.4 Tally ......................................9 SECTION 3 REMOTE CONTROL & OSD ...................... 11 3.1 Remote Control ..................................11 3.2 OSD Menu .................................... 12 SECTION 4 MOUNTING NDI-PTZ1™ ......................19 4.1 Preparation ..................................19 4.1.1 Other Precautions ................................ 19 4.2 Ceiling Mounting .................................. 21 4.3 Removal ....................................
  • Page 4 5.2 NDI Benefits ..................................24 5.3 NDI Virtual Input .................................. 24 SECTION 6 END USER LICENSE AGREEMENT .................... 27 CREDITS ..............................37 Page | 4...

  • Page 5: Section 1 Quickstart

    Section 1 QUICKSTART This section explains how to connect and configure your NewTek NDI-PTZ1™ camera. It also explains how to update the device, and where you can find additional NDI software to ® extend your workflow. After completing this short section, you’ll be all set to begin using your new camera.
  • Page 6 6. Log into the webpage using the default user name (“admin”) and password (also “admin”). Step 5 - Update the Camera’s Firmware We encourage you to keep the firmware on your NewTek™ NDI®-PTZ1 camera up to date. The latest firmware may contain bug-fixes, provide improved performance, or even enable new features. The update process is not complicated –...

  • Page 7: Section 2 Introduction And Setup

    NDI|HX drivers for your computer platform. NOTE: The NDI|HX driver also installs NewTek’s NDI Studio Monitor application, which will not only display the output of your camera, but provide easy access to its settings. It even includes built-in PTZ controls.

  • Page 8: Making Connections

    Hint: These front panel lights do dual duty, serving as Tally lights as discussed later. Your NewTek NDI-PTZ1 is already sending NDI audio and video to your local network. We’ll talk about how to access it soon, but first let’s discuss how to manage configuration settings and options.

  • Page 9: Studio Monitor

    Section 2.2.  Windows platform users can launch Studio Monitor from the Start menu or App list (Figure 2-2), where it will appear in the NewTek NDIHX Driver folder. FIGURE 2-2  OS X users will also find a new Studio Monitor application available to them after installing the NDI|HX driver for their platform.
  • Page 10 Among other things, this menu displays all NDI sources detected on your network. 2. Shortly, you should see a new main entry named NDI-PTZ1 listed in the menu. Rolling the mouse pointer over this label shows the individual names for the NDI output channels of any NDI-PTZ1 cameras detected on the network.

  • Page 11: Logging In

    1. Having launched the Studio Monitor application, use the File menu to locate a new main entry named NDI-PTZ1. Rolling the mouse pointer over this label shows the individual names for the NDI output channels of any PTZ1 cameras detected on the network.

  • Page 12: Video Source

    VIDEO SOURCE After logging in, your camera’s options and controls are shown in your web browser (Figure 2-7). FIGURE 2-7 The first tab shown on this web page is labeled Video Source. At the time of writing, a placeholder image substitutes for the ‘monitor’...

  • Page 13: Pan, Tilt And Zoom

    FIGURE 2-9 The highest Video Bandwidth setting outputs the same video format as you have selected using the Output DIP switches, located near the 3G-SDI connector on the camera’s connector panel. NOTE: The various DIP switch configurations for different output formats are depicted on a sticker on the underside of PTZ1’s pedestal base.

  • Page 14: Administration

    FIGURE 2-12 This group includes Audio Input level buttons labeled Line and Mic, along with the Volume slider. The switch at left allows you to completely disable audio output. ADMINISTRATION FIGURE 2-13 The third tab on the configuration web page is labeled Administration. Here you will find information and settings related to your camera, and its network connection.

  • Page 15: Network Settings

    You will also see the Hardware and Firmware versions for your camera displayed in this area, along with its unique serial number. Buttons just below allow you to update the installed firmware, modify the default network password, or to power the device down (‘sleep’). NETWORK SETTINGS 2.3.1 FIGURE 2-15...

  • Page 17: Section 3 Remote Control & Osd

    Section 3 REMOTE CONTROL & OSD Some of the more exotic settings and options available on your NDI-PTZ1™ are supported by means of the onscreen display, and accessed via the included remote control. This section first describes the features of the latter, then provides a full list of options and settings in the ‘OSD’.

  • Page 18: Osd Menu

    OSD MENU Press the Menu button on the remote control to display the OSD (On Screen Display) and settings menu over your live video on PTZ1’s hardware video output (SDI or HDMI). Hint: The bold underlined values in the following table are the defaults. The following tables detail the options available to you in the OSD settings menu.
  • Page 19 1. F1.6 2. F2 3. F2.2 4. F2.7 5. F3.2 6. F3.8 7. F4.5 8. F5.4 Iris Pri Iris setting 9. F6.3 10. F7.8 11. F9 12. F11 13. F13 14. F16 15. F18 1. 0dB 2. 2 dB 3. 4 dB 4.
  • Page 20 1/120 1/120 1/100 1/100 1/90 1/75 1/60 1/50 1/30 1/25 1/15 1/12 1. F1.6 2. F2 3. F2.2 4. F2.7 5. F3.2 6. F3.8 7. F4.5 8. F5.4 Manual Iris Manually set the iris 9. F6.3 10. F7.8 11. F9 12.
  • Page 21 1. Off 2. 1 3. 2 WDR settings 4. 3 5. 4 6. 5 Select color temperature mode 1. Auto 1. 4000k ~ 7000k 2. Indoor 2. 3200k 3. Outdoor 3. 5800k 4. One Push WB 4. 1700k ~ 10000k 5.
  • Page 22 1. Mode 1 2. Mode 2 3. Mode 3 Image Mode Customize desired image modes 4. Mode 4 5. Mode 5 6. Mode 6 7. Custom 1. Mode 1 Adjustable when the image 2. Mode 2 mode is set to Custom. After 3.
  • Page 23 1. Off 2. Mirror Set the mode at which the image Dig-Effect Mirror 3. Flip is turned 4. Mirror + Flip 1. Low Select the AF triggering speed. AF Sensitivity 2. Middle The higher the speed is, the 3. High faster AF is triggered AF speed Fast / Normal...
  • Page 24 Control Device: Control Device Encoder / Controller Controller: acceleration on Encoder: acceleration off Protocol V: VISCA Protocol 1. Protocol V / Protocol PD Protocol PD: PELCO D The Protocol set to PD allows the PD Address 1~ C~255 camera ID address to be assigned Resume the factory default Factory Reset On / Off...

  • Page 25: Section 4 Mounting Ndi-Ptz1

    Section 4 MOUNTING NDI-PTZ1™ Of course it is vital that your camera installation be secure and safe. This section provides detailed information to help you ensure your installation poses neither safety nor environmental risks, and provides performance consistent with your expectations.
  • Page 26 IMENSIONS  Length x Width x Height: 174 x 186.2 x 185.5 mm  Weight: 1.8 Kg ROTATIONAL DIMENSION Page | 20...

  • Page 27: Ceiling Mounting

    OTTOM DETAILS CEILING MOUNTING The camera (including mounting plates) weighs about 2.5 kg. If it is to be installed on the ceiling, please use the supplied UL approved hanger, which is designed to prevent the unit from falling. NOTE: Please check periodically to ensure the camera is installed securely. ...

  • Page 28: Removal

     Lock the metal plate B on ceiling mounted hanger Caution: Please use supplied UL approved mounting plate.  Combine the metal plates A and B o Push metal plate A up to the ceiling and then to the right to latch the metal plate B;...

  • Page 29: Section 5 About Ndi

    It is no surprise, then, that efficient, economical, non-linear video transfer in IP space is augmenting and even superseding traditional linear connection methods (SDI, HDMI, etc.) and systems. NewTek NDI (Network Device Interface) makes it easy to share high-quality video over a local Ethernet ®...

  • Page 30: Ndi Benefits

    NDI BENEFITS The NDI concept is simple: You supply a video source – in this case, an NDI stream from your NewTek NDI- PTZ1™. At that point, anyone else on that network can see it and work with it just as if it was a locally connected to their system (unless you deliberately limit access).
  • Page 31 FIGURE 3  Afterward, you will see an entry named NewTek NDI Video (or Audio) listed along with any other qualified sources available to applications like Skype™, etc. Page | 25...

  • Page 33: Section 6 End User License Agreement

    The computer program(s) (the "Software") installed and/or enclosed with the Product is licensed, not sold, to you by NewTek, Inc. (NEWTEK) for use only under the terms of this License, and NEWTEK reserves any rights not expressly granted to you. You own the any disk(s) and/or tangible media that might be enclosed...
  • Page 34 Educational license. Any non-educational use will be considered, as with other uses in contravention of this license, copyright infringement. You may determine whether it is a Limited Educational License by referring to the serial number and letter code. **Call NewTek to determine the nature of the license for this Product.
  • Page 35 This License is effective until terminated. This License will terminate immediately without notice from NEWTEK, or by judicial resolution, if you fail to comply with any provision of this License. Upon such termination you must destroy the Software, all accompanying written materials and all copies thereof. You may also terminate this License at any time by destroying the Software, all accompanying written materials and all copies thereof.
  • Page 36 LightWave, LightWave 3D® and LightWave CORE. The list is not intended to be exhaustive, and others are or may be claimed by NewTek related to these or other NewTek products, some of which may be found at www.newtek.com. All other brand names, product names, or trademarks belong to their respective holders.
  • Page 37 PORTFOLIO, WHICH LICENSE IS AVAILABLE FROM MPEG LA, L.L.C., 250 STEELE STREET, SUITE 300, DENVER, COLORADO 80206. MPEG-4; THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO.
  • Page 38 (i) If use of the Software is discontinued to the installation specified in the purchase/delivery order and the US Government desires to use it at another location, it may do so by giving prior written notice to NEWTEK, specifying the type of computer and new location site. US Governmental personnel using this Software, other than under a DoD contract or GSA Schedule, are hereby on notice that use of this Software is subject to restrictions which are the same as or similar to those specified.
  • Page 39 Skype client software thereunder will be governed by the standard Skype™ Terms of Use. NewTek is not responsible for that license nor a party to it and you agree to be bound by it and comply with the Skype™ Broadcast Terms of Use as found at:...
  • Page 40 (or operation) of any of the Product. NewTek’s liability is limited solely to the repair or replacement of the defective Product. NewTek is under no obligation or responsibility to enhance or update the product.
  • Page 41 Blvd., San Antonio, TX, USA, 78249 to receive a Returned Materials Authorization (RMA), and deliver the product along with proof of ownership (such as the original invoice, or a photocopy) to NewTek. You will be responsible for any costs associated with the delivery to and from our service center.

  • Page 43: Credits

    Additional thanks to: NewTek Marketing, Sales, Business Development, Customer Support, Training and Development, and Operations Trademarks: NewTek, NewTek VMC1, NewTek VMC1 IN, NewTek VMC1 OUT, NewTek NC1, NewTek NC1 IN, NewTek NC1 I/O, TriCaster, TriCaster TC1, TriCaster Advanced Edition, TriCaster XD, TriCaster 8000, TriCaster TCXD8000, TCXD8000, TriCaster 860, TriCaster...
