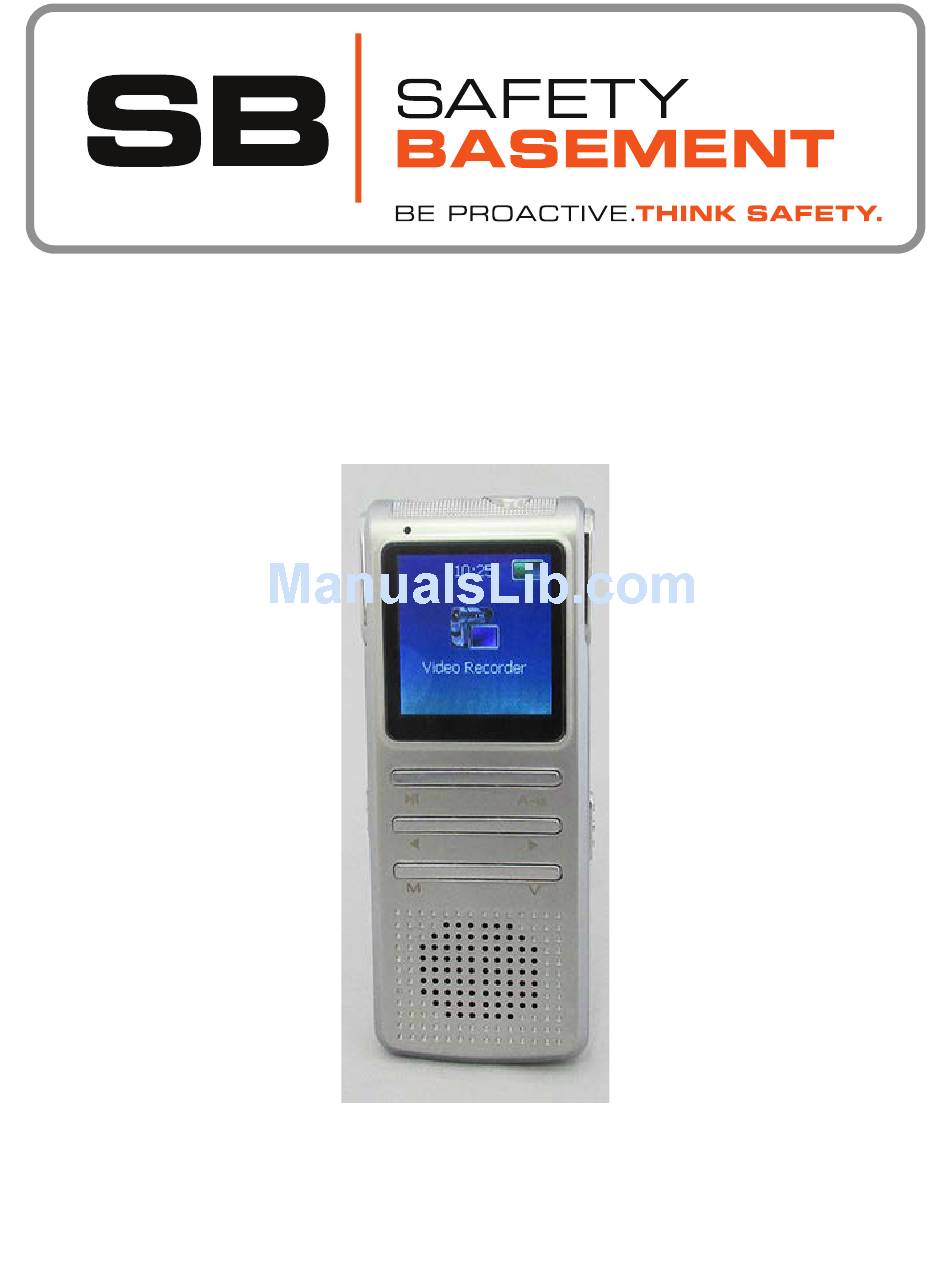

INSTRUCTION MANUAL
Digital Voice / Video Recorder
SB-VRC8000
Revised: April 2, 2013
Thank you for purchasing from SafetyBasement.com! We appreciate
your business.
We made this simple manual to help you enjoy your new product as
quickly and easily as possible.
Be sure to check the TECH SUPPORT tab on your product page at
SafetyBasement.com for the latest available manual.
Advertisement
Table of Contents
Related Manuals for Safety Basement SB-VRC8000
Summary of Contents for Safety Basement SB-VRC8000
- Page 1 INSTRUCTION MANUAL Digital Voice / Video Recorder SB-VRC8000 Revised: April 2, 2013 Thank you for purchasing from SafetyBasement.com! We appreciate your business. We made this simple manual to help you enjoy your new product as quickly and easily as possible.
-
Page 2: Product Reference
PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 PRODUCT REFERENCE 1. Microphone 2. Power 3. USB Port 4. Recording Indicator 5. Play 6. Previous / Left Arrow 7. Menu Button “M” 8. Earphone Jack 9. Camera 10. Display 11. “A-B” Repeat Button 12. - Page 3 PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 BEFORE FIRST USE - SD CARD This recorder can accept an optional SD card for storarge, up to 32 GB in size. We recommend using a CLASS 10 SD card for optimal performance.
- Page 4 PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 BEFORE FIRST USE - FILES Your recorder does not need any files to work properly with your Windows or Mac PC. Please see notes at the end of this manual for optional software to playback your video and audio files.
-
Page 5: Settings - Language
PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 SETTINGS - LANGUAGE After charging, you can remove the USB cable. For a PC, please EJECT your device as you would any external drive. You should always EJECT a device properly before removing from your PC or Mac. - Page 6 PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 SETTINGS - TIME 1. If you are back on the main screen, use the arrow keys to move to the Settings Icon, the gear, and press M to enter the settings menu.
- Page 7 PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 SETTINGS - SD CARD The recorder has 8 GB of internal memory, which is plenty for audio recording at any level of quality. However, you may need additional memory for video recording. The recorder can accept an SD memory card up to 32 GB in size.
- Page 8 PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 SETTINGS - AUDIO FORMAT This recorder has 4 available formats for your audio recordings. They are; AMR, WAV, MP3 and AAC. The default setting is WAV. Narrow band 4-12 kbps WAV (default)
- Page 9 PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 SETTINGS - SCREEN OPTIONS This recorder has 2 options for the screen itself; Brightness level and Screen Saver. Brightness Option The Brightness Option sets the brightness of your screen. From the settings menu, choose Brightness Option.
- Page 10 PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 RECORDING Recording with this recorder is very easy. Just flip the switch into Video or Audio recorder, and it starts recording. The Audio / Video / Safe Switch Screen during audio recording.
-
Page 11: Playback Audio
PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 PLAYBACK AUDIO You can playback your audio and video recordings on the device. You can also playback MP3 files you have moved onto the device. We will look at moving files later in this manual. - Page 12 PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 PLAYBACK AUDIO During playback, you have a few options as well. Quick-press M to access the Repeat options, and the EQ settings. These are only available during Playback of an audio file.
-
Page 13: Playback Video
PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 PLAYBACK VIDEO To playback your recorded video files, choose Video Recorder from the main menu. Press M to enter. Playback Video Files Available video files Player controls 1. To play a file from the list, highlight it and press PLAY. -
Page 14: File Maintenance
PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 FILE MAINTENANCE In Audio and Video modes, in Stand By, you can remove individual files or all files from your device. File list File Maintenance 1. In Audio or Video modes, quick-press M to access your list of available files. -
Page 15: Mp3 Files
PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 MP3 FILES Audio Mode is available to playback MP3 files you have moved onto your device. MP3 files must be placed in the correct folder for proper operation. Playback your MP3 files 1. - Page 16 PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 CONNECTING TO PC / MAC 1. Be sure that the REC / SAFE / VIDEO switch is in the SAFE position. 2. Be sure that the Power Switch is set to OFF.
-
Page 17: Device Specifications
PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 DEVICE SPECIFICATIONS Audio Formats WAV, MP3, AMR, AAC Audio Encoding WAV 384 kbps, MP3 64kbps, AMR nar- row band 4-12 kbps, AAC variable WAV Bit Rate Mode Constant WAV Bit Rate... - Page 18 PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 DEVICE SPECIFICATIONS Memory Built In 8 GB Memory Expansion SD card, up to 32 GB Battery Type Built In Rechargeable Charger Type USB port, wall adapter included Dimensions 98MM*38MM*13MM Weight 127g...
- Page 19 PRODUCT MANUAL Digital Voice / Video Recorder : SB-VRC8000 SUGGESTED SOFTWARE Your Windows PC or Mac has built-in software that will play most of the files created by devices like yours. However, if you are having problems playing your files, or need more options, please download and try these programs.
