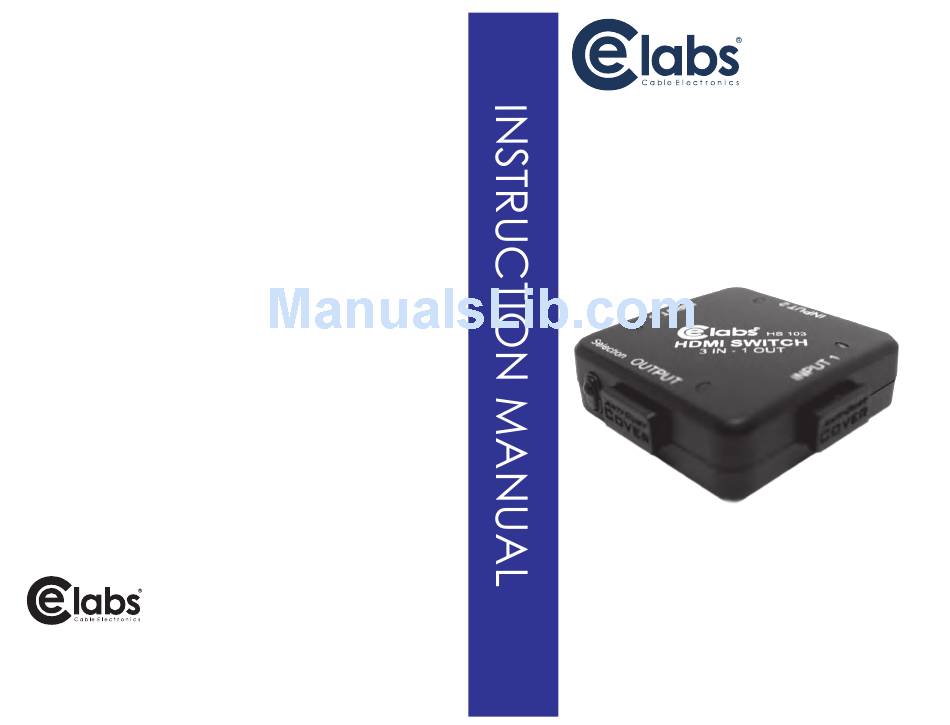

Elabs HS103 Instruction Manual

CE labs can support many areas of your audio and video
distribution needs.
We manufacture:
• Digital Signage software and Media Players
• HD Matrix Switchers
• RF amplifiers
• HDMI and Component HD distribution amplifiers
• CAT 5 Signal Extenders
• VGA Extenders and Splitters
• and cables of all types.
WARRANTY
Cable Electronics, Inc. warrants this product to be free from defects in
material and workmanship, under normal use and service, for a period of
one year from the purchase by the original purchaser. If this product is
defective or malfunctions, Cable Electronics will replace or repair this unit
(at their option) within a reasonable time. No expressed or implied warranty
is made for any defects caused by immersion or exposure to liquids, abuse,
neglect, improper operation of unit, excess wear and tear and defects
resulting from unauthorized disassembly and or modification.
Document: HS103_manual.pdf
930-3021-01
HS103
HDMI Switch
• Compact size.
• Auto switching.
• No power supply.
• Distribute any of the three input signal to the output port.
• Manual selection button offered.
• Signaling rates up to 2.25Gbits in support of 1080P display.
• Super receiver equalization to compensate up to 20m
HDMI cable losses.
• 3dB driver pre-emphasis to compensate for PCB losses.
• Each port supports
