Page 1: User Manual

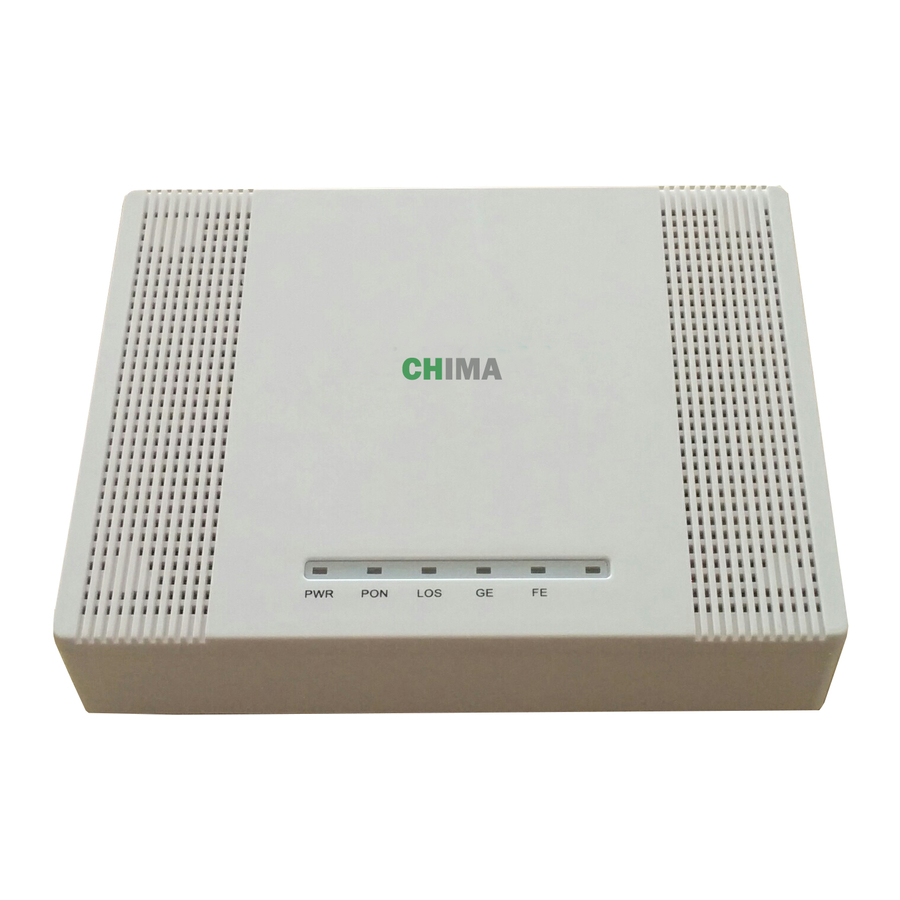

SON8010U GEPON ONU User Manual SON8010U GEPON SYSTEM ONU User Manual STEPHEN TECHNOLOGIES CO.,LIMITED ALL RIGHTS RESERVED www.stephen-tele.com 陈 泽 科 技 有 限 公 司... - Page 2 SON8010U GEPON ONU User Manual Contents Chapter 1: Product introduction 1. Goods listing 2. Front panel instruction 3. Back panel instruction 4. Indication light instruction 5. Main feature 6. Technology Chapter 2: Installation and link 1. Attention items for setting Chapter 3: software upgrade 1.
- Page 3 SON8010U GEPON ONU User Manual LLID1 Green light Optic link is ok Non-light Checking optic link is ok or not Corresponding indicator will light when 100Mbps equipment Green light connect with relevant port. 100M Non-light Non-light 100Mbps port does not joint equipment.
- Page 4 SON8010U GEPON ONU User Manual Technology guide line: Standard :IEEE 802.3ah 、 I EEE 802.3 、 I EEE 802.3u 、 I EEE 802.3x 、 I EEE 802.3z 、 I EEE802.1d 、 I EEE 802.1p 、 I EEE 802.1q 、 IEEE 802.1x 、...
- Page 5 SON8010U GEPON ONU User Manual 3. Connect ONU with relevant bunch port on the PC RS-232, then turn on the power, as following chart: www.stephen-tele.com 陈 泽 科 技 有 限 公 司...
- Page 6 SON8010U GEPON ONU User Manual 4. As the dos prompt shown above, input load order as following chart: 5. Firstly, upgrade Boot code, as following dos prompt input ”rxboot” click the ”file” and choose “send file” , then “Boot3713_00XX_SPI_8Mb.tkf” you want to upgrade, as following char: www.stephen-tele.com...
- Page 7 SON8010U GEPON ONU User Manual Click “open”, start to upgrade”bootcode”, as following chart: above method, upgrade ”app”, “pers” turn. Input”rxapp” order while upgrade “app” choose”App3713_Rxxx_SPI_8Mb.tkf” file, input “rxpers” order when up grade “pers”, choose”Pers3713_RXXX.tkf” file. 7. After finishing the upgrade. Pls restart ONU to check if the status is ok or not..
- Page 8 Stephen Technologies Co.,Limited. Disclaimer Notice: No license is granted, implied or otherwise, under any patent or patent rights of Stephen Technologies Co.,LTD. Stephen Technologies Co.,LTD, makes no warranties, implied or otherwise, in regard to this document and to the products described in this document.
