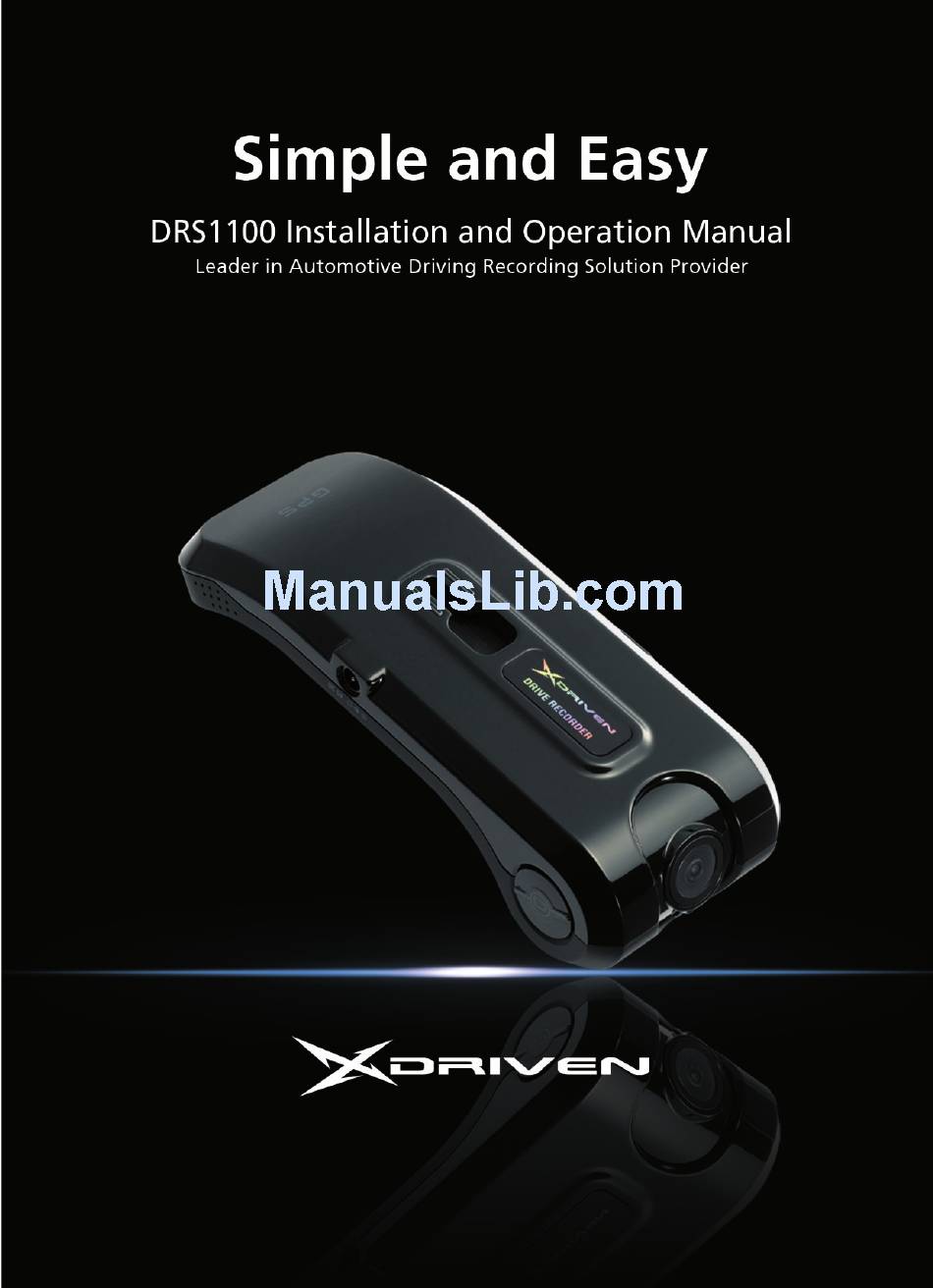

Summary of Contents for X-Driven DRS1100
-
Page 2: Main Functions
In addition to accident data replay on PCs, it also simultaneously plays the GPS in- formation and vehicle operation information. A software program is also provided that is simple and easy to use in setting various functions including user-oriented separate storage, printing, and screen shots. UbONE X-Driven... - Page 3 Please check if the followings components are included in your package. ≫ If any item is missing or an incorrect item is included, please contact the store where you purchased the product. DRS1100 Camera Rack Power Cable (Glass Attaching Type)
-
Page 4: Name Of The Parts
LED is constant and does not blink GPS LED(Blue) When GPS normally receives the Emergency Button satellite data, GPS LED is lighted on. Emergency Button is for manual image recording, and when the button is pressed, it records images. UbONE X-Driven... -
Page 5: Installation Instructions
While the body is fixed into the toggle, it should be able to be turned left and right. Adjust the camera angle to have the camera ◀Checking left and right▶ lens face forward. UbONE X-Driven... - Page 6 PC installation program is being copied. If the power is turned off during this operation, it may cause a malfunction. In this case, please contact the manu- facturer or the store where you purchased the product. Initial GPS reception time may vary depending on location. UbONE X-Driven...
-
Page 7: Program Installation
Click OK after the installation is completed Click on the X-Driven icon under “All Programs” or on Desktop to start the program. - The program can be accessed through our company’s website at www.ubone.co.kr. -
Page 8: How To Use The Program
Double-click the selected file, and the image is shown in the main window. After selecting several files while pressing the Shift key, click on on the right-hand upper side to see the selected images as a slide show. UbONE X-Driven... - Page 9 GPS-related information window. The graph below the main window shows the degree of front and back, left and right, and up and down impacts when an event occurs. Front-Back movement: X-axis Left-Right movement: Y-axis Up-Down movement: Z-axis UbONE X-Driven...
-
Page 10: How To Change The Setting
How to Change the Setting A user can change the default values of the X-Driven Viewer. (When SD memory card is formatted, the settings are changed to default.) Press the Setting icon to open the file named “_systems.cfg”... - Page 11 Y-axis : Left-Right movement Set the time (zone) (in which the Z-axis : Up-Down movement device) is used. * Note As resolution, recording quality, and recording speed is set higher, it takes more of the SD memory card storage. UbONE X-Driven...
- Page 12 Save the opened image as another name. Capture an image and save it as a BMP file. It also includes a function to save the title and memo when saving it as a picture file. Print the current screen. UbONE X-Driven...
- Page 13 14. When power is turned off due to a big accident, image data may not be recorded. 15. For smooth GPS reception, make sure to keep GPS receiver horizontal when installing the product and do not put any objects such as electronic products that could interfere the reception. UbONE X-Driven...
-
Page 14: Understanding Gps
- When a car rotates by signs in parking the car - When driving a car in rain or snow - When entering a large road after driving a road that is not on the Map Data - When driving among high buildings UbONE X-Driven... - Page 15 Memo UbONE X-Driven...
