TH-300
User's Guide
TEMPERATURE&HUMIDITY METER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TH-300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Assicontrol TH-300

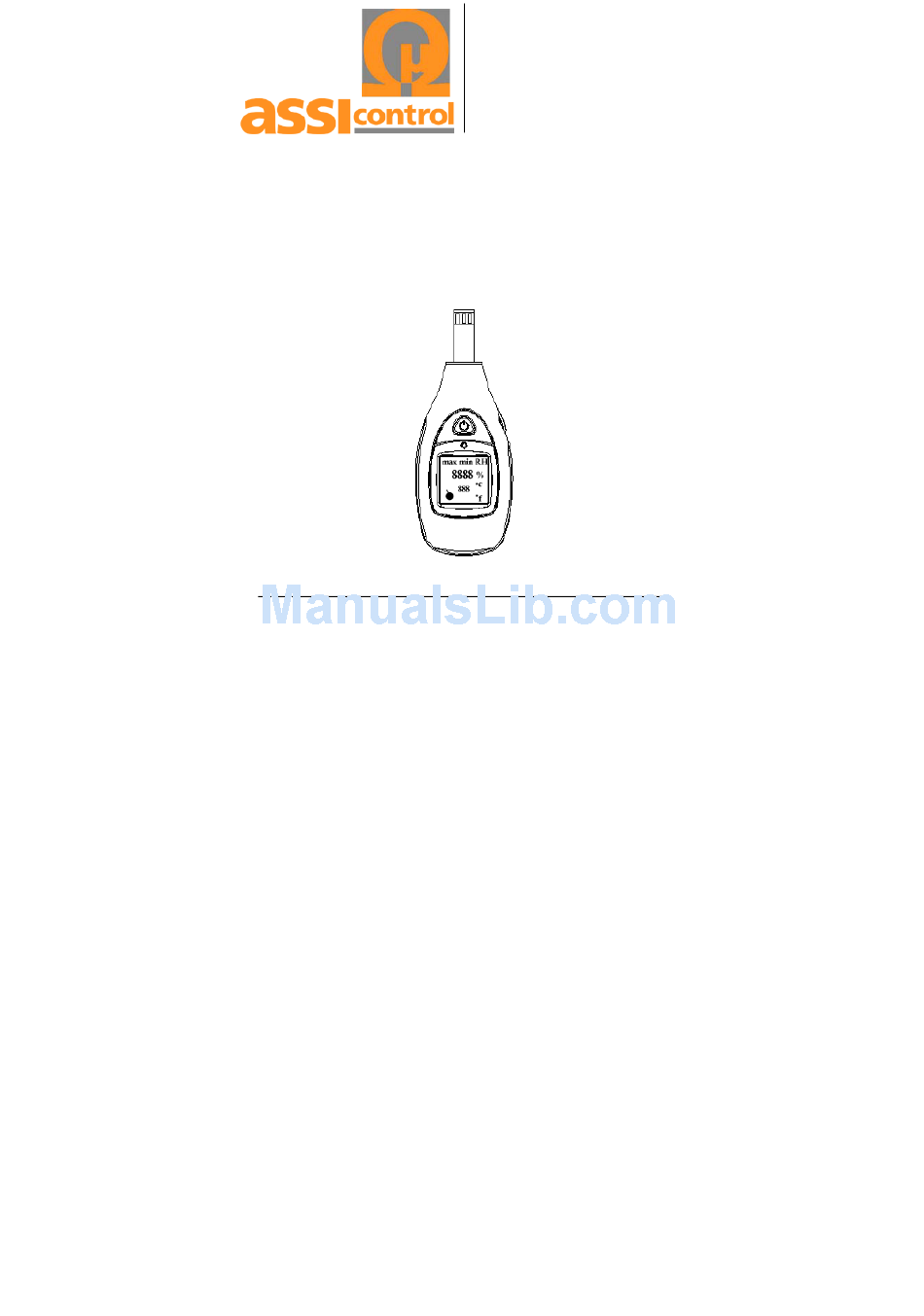

  • Page 1 Via S. Silvestro, 92 21100 Varese Tel + 39 0332 - 213045 212639- 220185 Fax +39 0332 - 822553 www.assicontrol.com e-mail: info@assicontrol.com C.F. e P.I. 02436670125 S T R U M E N T I & S E R V I Z I p e r i l s i s t e m a q u a l i t à...
  • Page 2 Introduction Congratulations on your purchase of the Precision Hygro- Thermometer. This device measures Humidity, Temperature. Advanced features include Auto Power Off, and MAX/MIN reading. Careful use of this meter will provide years of reliable service.

  • Page 3: Specifications

    Specifications Range and Accuracy Resolution Function ±3.5%RH (40% to 60%) ±4%RH (20 to 40% and 60 Humidity 0.0 to 100.0%RH to 80%) ±5%RH (0 to 20% and 80 to 100%) （-40 to -10 and +40 to ±2°C -4.0 to 140.0 +70°C）...

  • Page 4: Meter Description

    Meter Description Humidity & Temperature Sensor LCD Display Power ON/OFF button Auto Backlight °C/°F button(back of meter) MIN/MAX button Note: The battery compartment is located on the rear of the instrument...

  • Page 5: Display Description

    Display Description Humidity & Temperature Sensor Power ON/OFF butoon MAX/MIM/RH display MAX/MIN button °C/°F LOW VOLTAGE °C/°F button...

  • Page 6: Operation

    Operation Power Press the power button( ) to turn power on or off. Taking measurements 1. Hold the probe in the area to be tested. 2. Allow adequate time for readings to stabilize. 3. Pressing the °C/°F button toggles the display between Temperature (°F), Temperature (°C).
  • Page 7 Minimum (MIN) Maximum (MAX) Function The MIN/MAX mode allows the user to view only the lowest (MIN) or highest (MAX) readings. Press the MIN/MAX button once and “MAX” appears on the display. The LCD is now displaying the maximum reading of the selected parameter in the display.
  • Page 8 The meter has a default setting that automatically shuts the meter off after 30 minutes (indicated by the symbol on the display). This battery saving feature can be disabled. To disable the auto power off function, simply press and hold the MAX/MIN button while powering on.

  • Page 9: Maintenance

    Maintenance Cleaning and storage 1. The meter should be cleaned with a damp cloth and mild detergent when necessary. Do not use solvents or abrasives. 2. Store the meter in an area with moderate temperature and humidity (refer to the operating and storage range in the specifications chart earlier in this manual).
