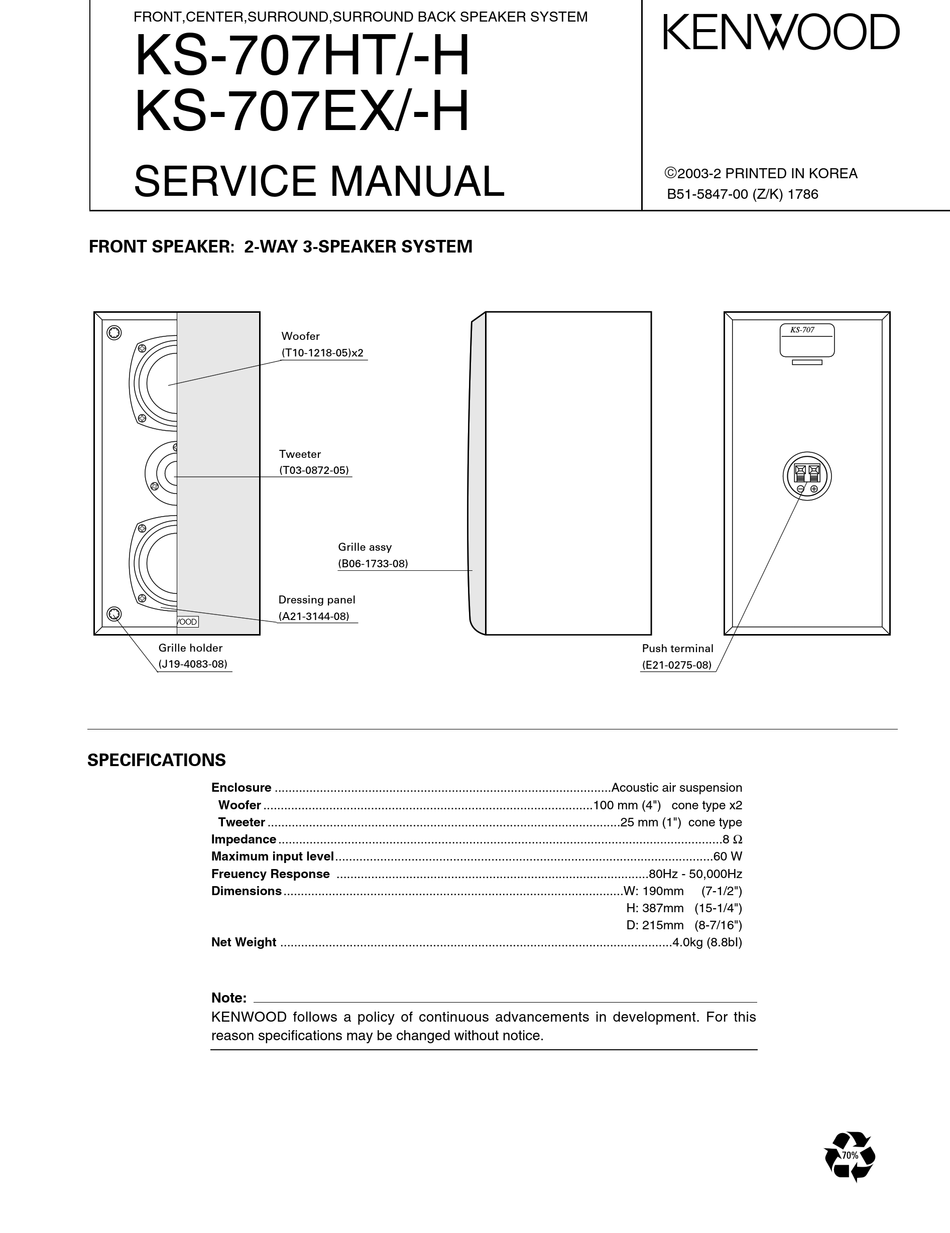

Kenwood KS-707HT Service Manual

FRONT,CENTER,SURROUND,SURROUND BACK SPEAKER SYSTEM
KS-707HT/-H
KS-707EX/-H
SERVICE MANUAL
FRONT SPEAKER: 2-WAY 3-SPEAKER SYSTEM
Grille holder
(J19-4083-08)
SPECIFICATIONS
Enclosure .................................................................................................Acoustic air suspension
Woofer ...............................................................................................100 mm (4") cone type x2
Tweeter ......................................................................................................25 mm (1") cone type
Impedance ................................................................................................................................8 Ω
Maximum input level.............................................................................................................60 W
Freuency Response ..........................................................................................80Hz - 50,000Hz
Dimensions ..................................................................................................W: 190mm
Net Weight .................................................................................................................4.0kg (8.8bI)
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
Woofer
(T10-1218-05)x2
Tweeter
(T03-0872-05)
Grille assy
(B06-1733-08)
Dressing panel
(A21-3144-08)

2003-2 PRINTED IN KOREA
B51-5847-00 (Z/K) 1786
Push terminal
(E21-0275-08)
(7-1/2")
H: 387mm (15-1/4")
D: 215mm (8-7/16")
