Summary of Contents for Voxx PG300

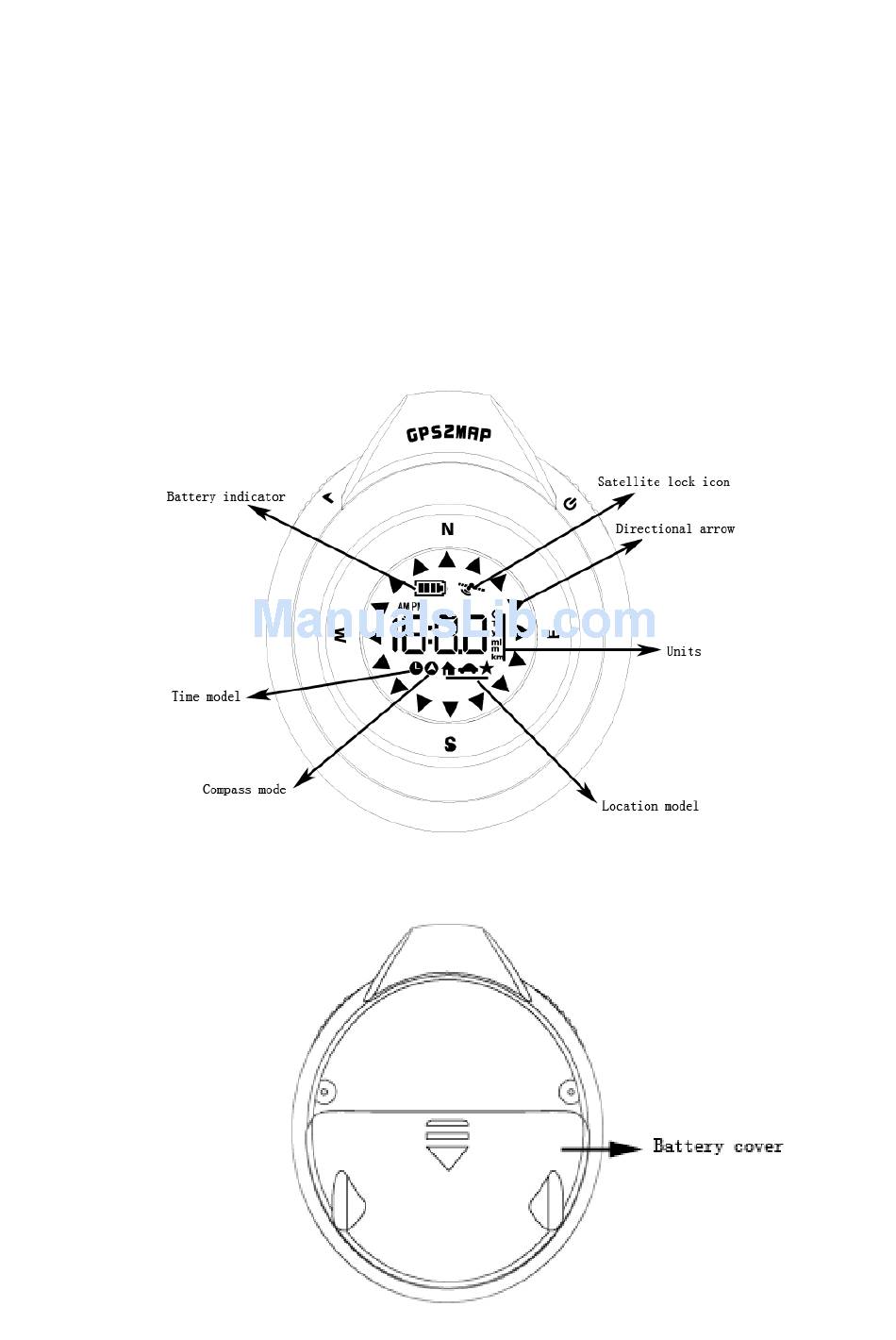

- Page 1 K-GP129 Manual ———— Mini-GPS Appearance and Function Introduction...
- Page 2 : Storage/Setup : Startup/Shutdown/Mode Switching Usage 1. Open the back battery cover, insert two new “AAA” Alkaline or rechargeable batteries. 2. Press the key to start the machine and select the mode ( time, compass, home, cars and favorite locations modes ). 3.
- Page 3 switching to the location mode. 8. Unit: Display one of the icons （T | O | yd /ml | km /m） while under different modes; Time Mode: Display the T icon; Compass Mode: Display the O icon; Location Mode: Display the British yd/ml(yards/miles) or Metric km/m(km/m) according to the distance.
- Page 4 Location Mode Setting 1. There are three location modes can be selected which are named home mode ( ), car mode ) and the favorite location mode ( ) respectively. Users can switch between them by short pressing the key. Under these modes, the data display area displays the horizontal distance between the current location and the stored location.
- Page 5 Specification System Specification Electrical Characteristics GPS chipset High sensitivity single chip solution Frequency L1, 1575.42 MHz C/A Code 1.023 MHz chip rate Channels 48 channels all-in-view tracking Sensitivity Tracking: -158dBm Display Type: ICON; Diameter: 30mm; Shape: Round Backlight Color White Power Battery Type AAA X 2 or NiMH...
- Page 6 Temperature) Operating Temperature -15°C ~ 60°C Storage Temperature -30°C ~ 85°C Humidity Operational up to 80% non-condensing Authentification USA (Covers requirements for CANADA ICES-003) Europe Troubleshooting If the SY-812 is unable to be started or be used normally, please make sure that the battery pack is installed correctly.
